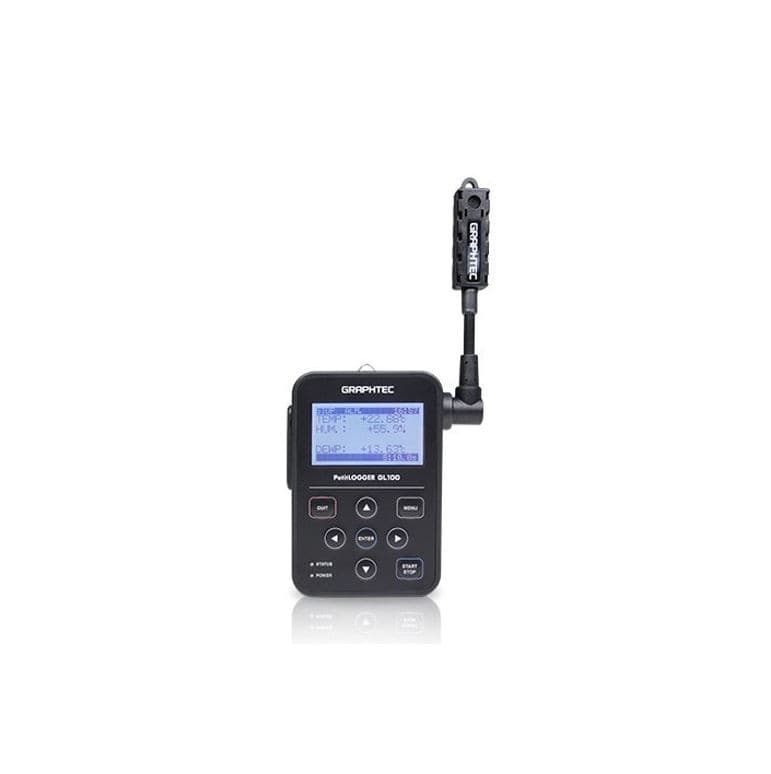

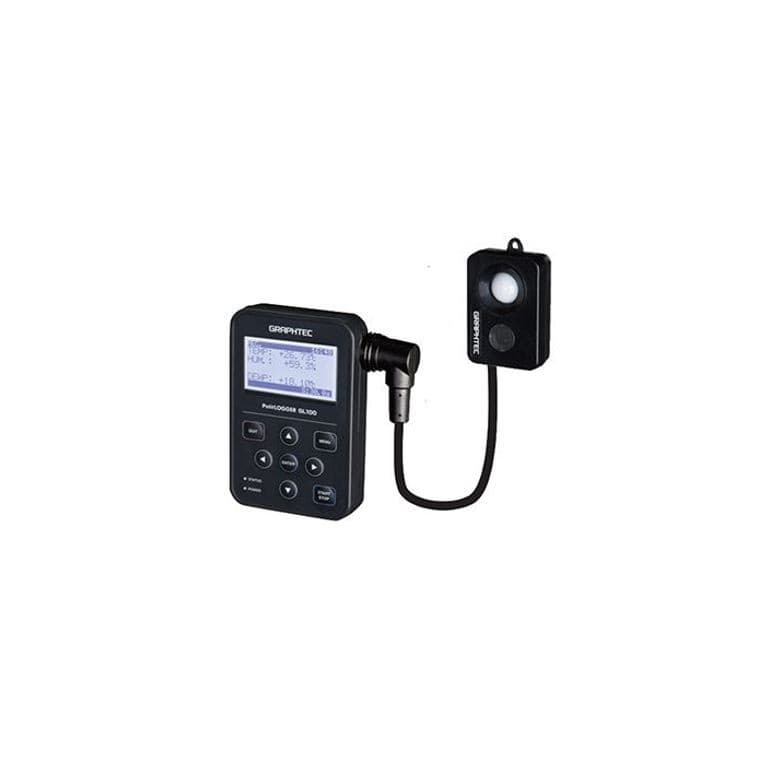

Graphtec GL100-WL เครื่องบันทึกข้อมูลอเนกประสงค์ | with wireless LAN

Varies by the input module used, and measurement type is fixed with each input module

Alarm (1 channel), solid state switch with optical isolation (Optocoupler, Max. load is the 30 V, 50 mA)

USB (micro USB B type connector), Wireless LAN (WLAN) in GL100-WL

Standards: IEEE802.11b, Communication distance: approx. 40 m
* It varies by the condition of the LAN. Real-time transfer rate is up to 500ms. The WLAN is able to disable. (It is enabled in the factory default setting)

Built-in memory: RAM (Approx. 4.9 MB)
External memory: microSD memory card
* Maximum file size for captured data is 1.9MB. It is recommended to use the microSD memory card that supports sleep mode.

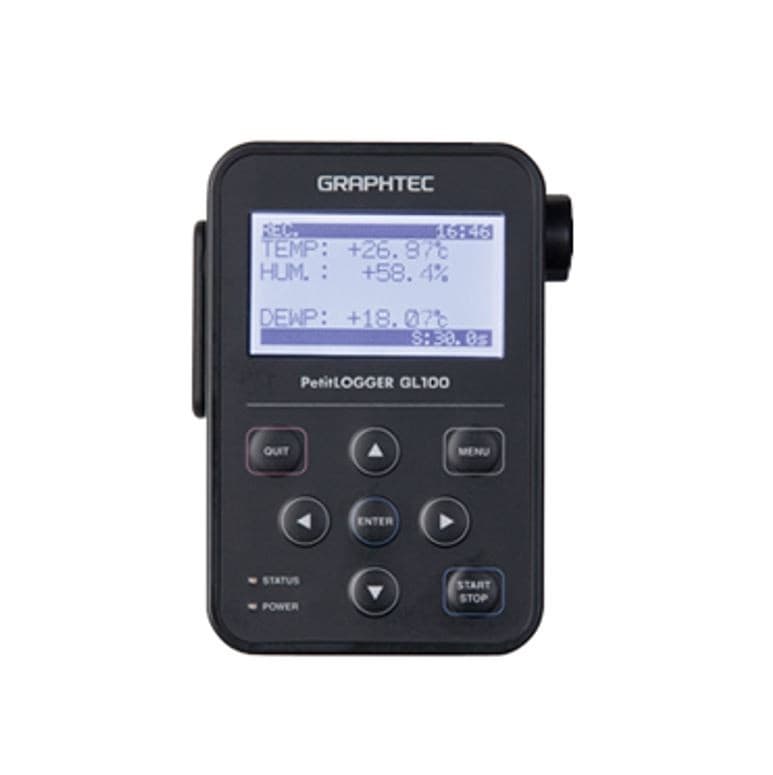

LCD (backlit monochrome, graphical type 128 x 64 dots)
Contents: Captured data and Setting menu (Stored data is not able to replay. It is able to replay using the PC application software.)

• Real-time data capturing
• Display the captured data value to the LCD in real-time and save the monitoring values
• Set conditions using the Menu setting

While using USB port:
• Output captured data in real-time
• Output the saved data from the internal memory
• Full control of the GL100 from the PC application software

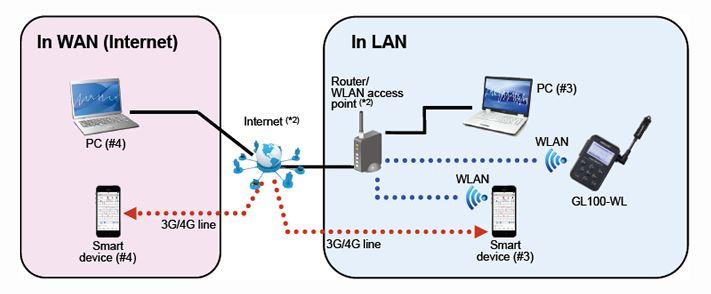

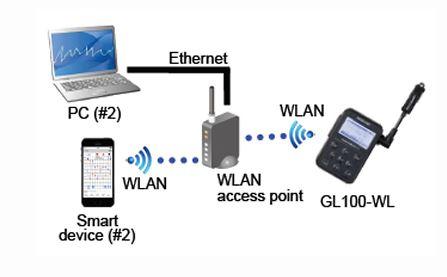

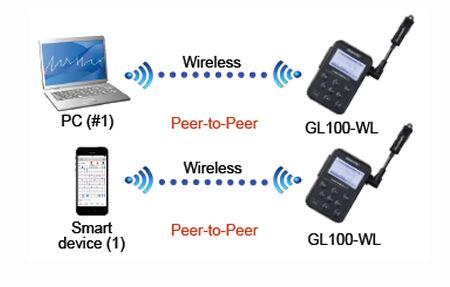

While using Wireless LAN (in GL100-WL):
• Output captured data in real-time
• Output the saved data from the internal memory
• Full control of the GL100 from the PC application software
• Simple control of the GL100 from the application software of Smart Device
• Send warnings via the e-mail

• Action
Outputs the signal when the measuring data reaches the present conditions of alarm
• Source
Level of measuring data
• Detecting method
Condition: Higher or lower (signal is higher or lower than the threshold)
Combination: OR

• Action
Start or stop the recording of captured data by trigger
• Source
Start trigger: OFF, Level (*), Alarm, or Date
Stop trigger: OFF, Level (*), Alarm
* Level trigger is available in the analog input of the GS-4VT, GS-4TSR, and GS-3AT module.
• Detecting method of the Level (*)
Condition: Rising or Falling (signal is passed through the threshold)
Combination: OR or AND

IP54 compatible (*)
* It is effective only in the condition that the input module is set to the GL100 and then the covers of connector and battery are closed. It is recommended to replace the packing of cover in periodically.

• Alkaline battery (AA size x 2)
• USB bus-power (5V, 200 mA) (*)
* When AC adapter for USB device is used, the required power capacity is 5V, 1A. Battery and AC adapter is not included.

Temperature: -10 °C to 50 °C
Humidity: up to 80 % RH (non condensed)

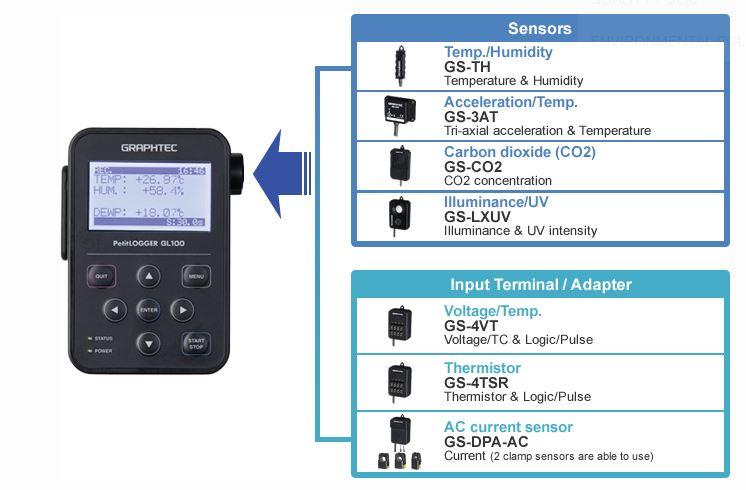

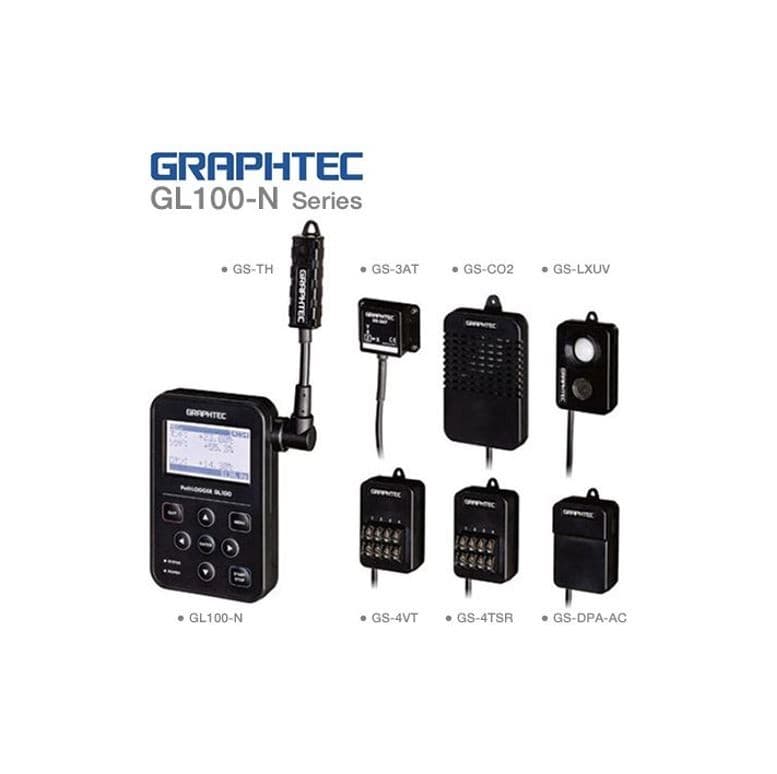

Temp./Humidity Sensor

GS-TH

Sensor of Temperature (-20 to 85 ºC) and Humidity (0 to 100 % RH)

Acceleration/Temp. Sensor

GS-3AT

Sensor of Acceleration (up to 10 G), Temperature (-10 to 85 ºC)

Voltage/Temp. Input terminal

GS-4VT

Input terminal of Voltage (20 mV to 50 V), Thermocouple (K/T)

Thermistor Input terminal

GS-4TSR

Input terminal of Temperature (Thermistor -40 to 120 ºC)

Thermistor Sensor (Normal type)

GS-103AT-4P

Sensor for GS-4TSR module, 3 m long, 4 pcs/set, Temp.: -40 to 105 ºC

Thermistor Sensor (Ultrathin type)

GS-103JT-4P

Sensor for GS-4TSR module, 3 m long, 4 pcs/set, Temp.: -40 to 120 ºC

Illuminance/UV Sensor

GS-LXUV

Sensor of Illuminance and UV intensity

Carbon dioxide (CO2) Sensor

GS-CO2

Sensor of Carbon dioxide (CO2) (up to 9999 ppm)

AC Current Sensor

GS-AC50A

For GS-DAP-AC module, Cable 200 mm, Current: 50 A AC

AC Current Sensor

GS-AC100A

For GS-DAP-AC module, Cable 200 mm, Current: 100 A AC

AC Current Sensor

GS-AC200A

For GS-DAP-AC module, Cable 200 mm, Current: 200 A AC

AC Current Sensor Adapter

GS-DPA-AC

Adapter of AC Current sensor (Two sensors are able to connect)

Dual port adapter

GS-DPA

Connect up to two (2) sensors

Module Extension Cable

GS-EXC

Extension cable for input module, 1.5 m long
