SHIMPO DT-205LR  เครื่องวัดความเร็วรอบ Contact / Non-Contact TachometerSHIMPO DT-205LR  เครื่องวัดความเร็วรอบ Contact / Non-Contact TachometerSHIMPO DT-205LR  เครื่องวัดความเร็วรอบ Contact / Non-Contact Tachometer
SHIMPO

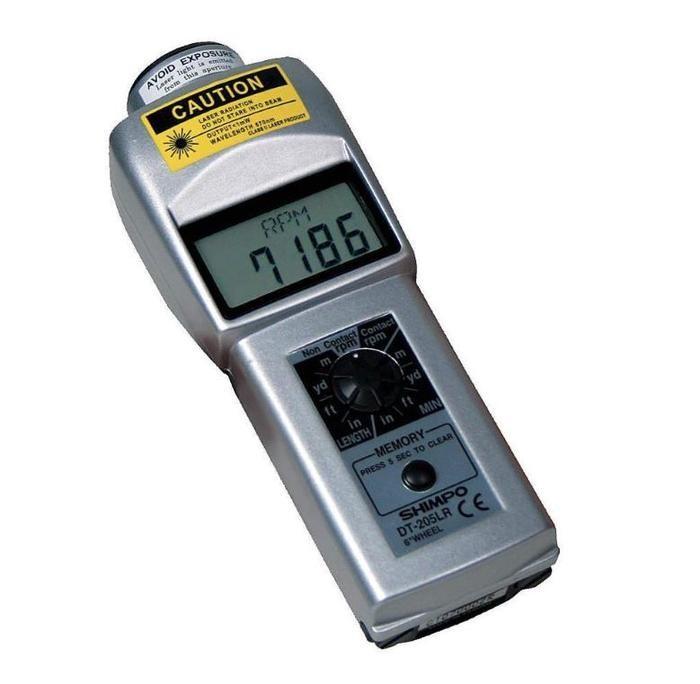

SHIMPO DT-205LR เครื่องวัดความเร็วรอบ Contact / Non-Contact Tachometer

รหัสสินค้า

DT-205LR

฿10,600.00(ไม่รวมภาษี)

ภาพรวม

เครื่องวัดความเร็วรอบแบบสัมผัส และไม่สัมผัส Contact / Non-Contact Type ช่วงการวัด Non-Contact: 6 to 99,999 rpm // Contact : 0.8 to 25,000 rpm ยี่ห้อ Shimpo, Japan

เพิ่มคำถาม

DT-205LR ฟังก์ชั่นการวัด

วัดความเร็วรอบแบบสัมผัส/และไม่สัมผัส

DT-205LR ช่วงการวัด

Accuracy

6 to 8,299 rpm: ±1 rpm
8,300 to 24,999 rpm: ±2 rpm
25,000 to 99,999 rpm: ± 6 rpm max.
Measuring Range

Non-Contact - 6 to 99,999 rpm
Contact - 0.8 to 25,000 rpm

DT-205LR Power Supply

Batteries 2 - 1.5 V AA
Battery Life DT-205LR Approx 40 hrs

DT-205LR ขนาดสินค้า

Weight 0.8 pounds (365 grams)
Dimensions 6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7)

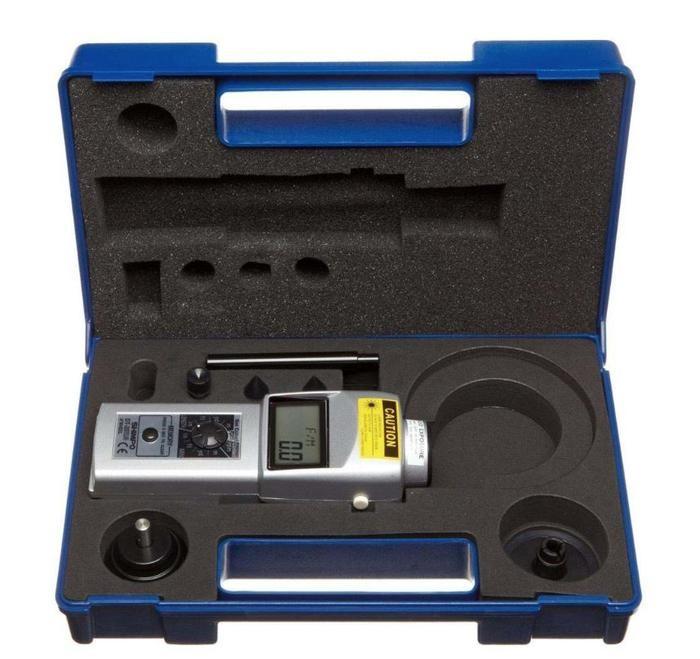

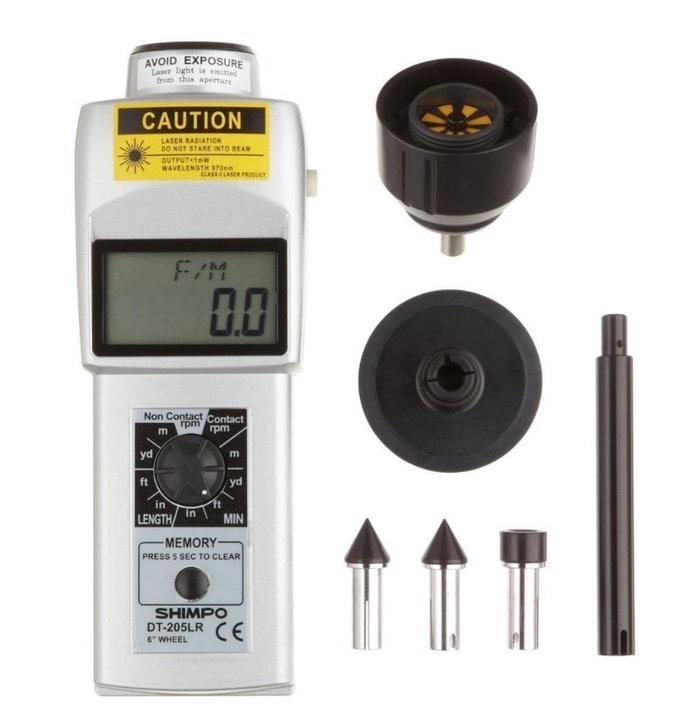

DT-205LR อุปกรณ์ที่มาในชุด

Batteries (2 pcs.  x  AA)

Cone Tip Adapter

Screw-In Contact Adaptor (DT-ADP-200LR)

Reflective Tape G. Carrying Case

DT-205LR ข้อมูลจำเพาะ

Display DT-205LR: (LCD MODEL) 5 digit 0.47" (12mm) high

Measurement Units

Per Second: Inches, Centimeters (optional, inquire)
Per Minute: Revolutions, Inches, Feet, Yards, Meters
Per Hour: Miles, Kilometers (optional, inquire)
Total: Revolutions, Inches, Feet, Yards, Centimeter, Meters

Measuring Distance

14 feet (4.2 m) maximum
Detection Laser Diode, Class II
Memory

13 readings are stored in memory and retained for 5 minutes
(last, max., min., and 10 measurements)
Over-Range Indicator Flashing numerals
Update Time 1 second (typical)

Low Voltage Indicator DT-205LR Flashing "LO BAT" display

Operating Temp 32 to 113° F (0 to 45° C)
Construction Die-cast aluminum housing
