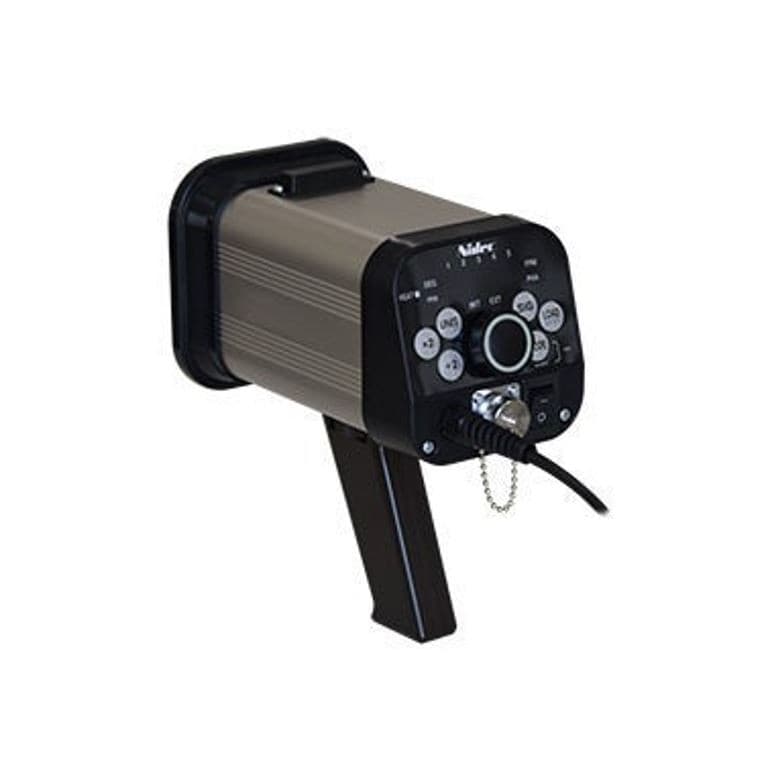

Shimpo DT-3011N-JP เครื่องวัดความเร็วรอบ แบบดิจิตอล (Japanese model)

Resolution

30.0 to 5000.0 ： 0.1 fpm

to 8000.0 ： 0.2 fpm

to 10000.0 ： 0.5 fpm

to 35000.0 ： 1.0 fpm

Phase change function

Available (PHA mode

Jump function

Available (press “×2” and “÷2” while on INT)

Limit function

Available (configurable in function mode 5)

Integer function

Available (configurable in function mode 1)

Delayed emission function

Measurement range：30 to 35000 fpm Within the range (angle)：0 to 359°, available to set by1° Within the range (time) ：0.00 to 999.99 ms, available to set by 0.01 ms 1000.0 to 1994.4 ms ,available to set by 0.1 ms

External synchronous emission

Input signal

H level ： 2.5 to 12 V L

level ： 0 to 0.5 V

Pulse width : 50 µs or more

Input impedance : 10 kΩ

Frequency measurement range

27 to 35020 fpm

Phase change function

Available (PHA mode)

Resolution

1 fpm

Delayed emission function

Measurement range：27 to 35020 fpm Within the range (angle)：0 to 359°, available to set by1° Within the range (time) ：0.00 to 999.99 ms, available to set by 0.01 ms 1000.0 to 2216.0 ms ,available to set by 0.1 ms

Display

6-digit 7 segment red LED

Lamp

Xenon lamp

Operating temperature

0 to 40°C (32 to 104°F)

Operating humidity

35 to 85% (Non- condensing)
