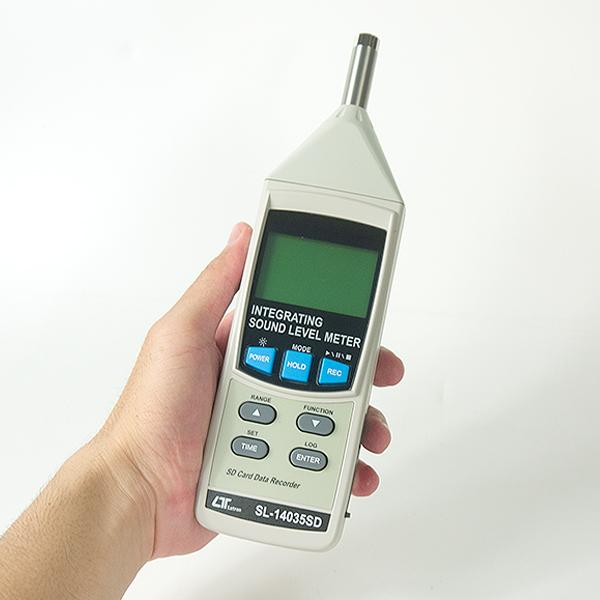

Lutron SL-14035SD เครื่องวัดเสียง Class 2
LUTRON

Lutron SL-14035SD เครื่องวัดเสียง Class 2

รหัสสินค้า

SL-14035SD

฿14,800.00(ไม่รวมภาษี)

จำนวน

สินค้าในคลัง55

ภาพรวม

เครื่องวัดและบันทึกค่าเสียง ช่วงการวัด 30 ถึง 130 dB (Auto & Manual range) มาตรฐาน IEC61672 Class 2 และรองรับประเภทการวัด ■ SPL: Sound pressure level ระดับความดันเสียง ■ Leq: Equivalent Continuous Noise Level ระดับเสียงเฉลี่ย Peak Hold, REC (Max./ Min) ยี่ห้อ Lutron, Taiwan

เพิ่มคำถาม

SL-14035SD | ฟังก์ชั่นการวัด

วัดความดังเสียง

SPL: Sound pressure level ระดับความดันเสียง
Leq: Equivalent Continuous Noise Level ระดับเสียงเฉลี่ย

SL-14035SD | จุดเด่น

  • ช่วงการวัด Auto range 30 ถึง 130 dB
  • ความถี่ Frequency 31.5 ถึง 8,000Hz
  • มาตรฐาน IEC61672 Class 2

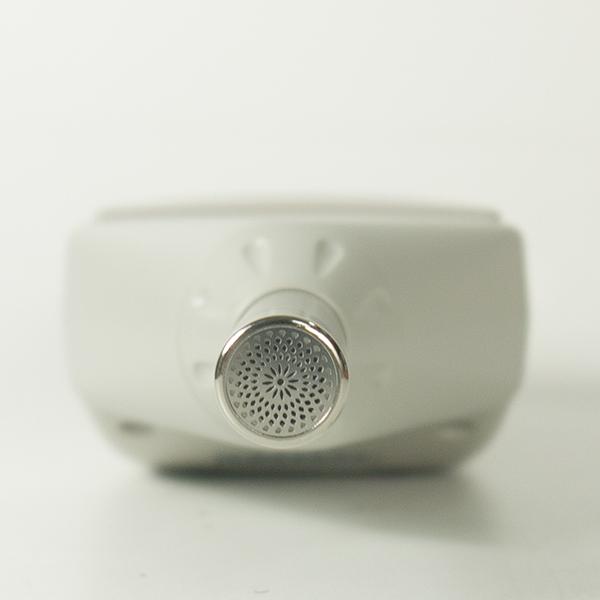

ไมโครโฟนขนาดมาตรฐาน 0.5"

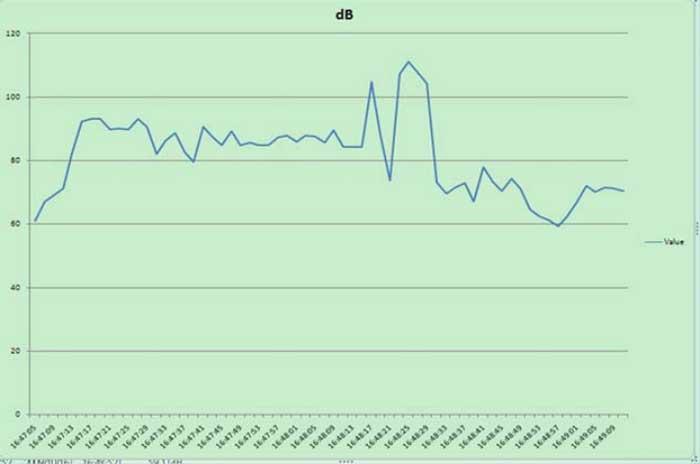

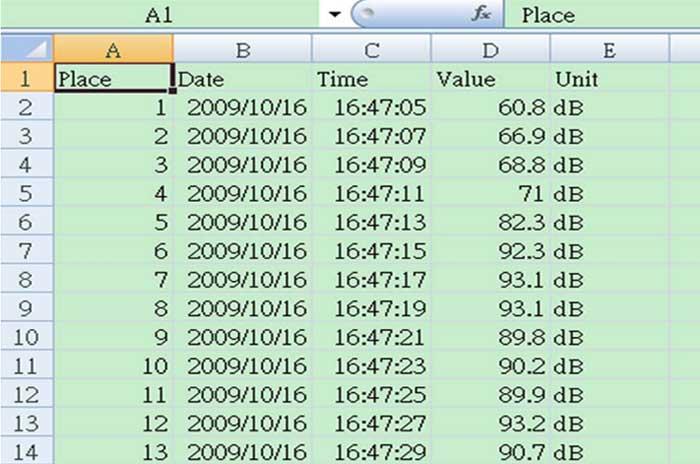

ฟังก์ชั่น บันทึกข้อมูลด้วย SD Card (รองรับ 1 - 32 GB)
เลือกตั้งเวลา Sampling time แบบอัตโนมัติได้ตั้งแต่ 1 ถึง 3600 วินาที
เลือกต้ังแบบ Manual ได้ตั้งแต่ 1 ถึง 99 position (สถานที่)
ฟังก์ชั่น SPL, Leq, A&C weighting, Fast & Slow, Peak Hold, REC (Max./ Min)
หน้าจอ LCD พร้อม Backlight
ระบบปิดเครื่องอัตโนมัติ
แบตเตอรี่ AAx6 หรืออแดปเตอร์ (อุปกรณ์เสริม)

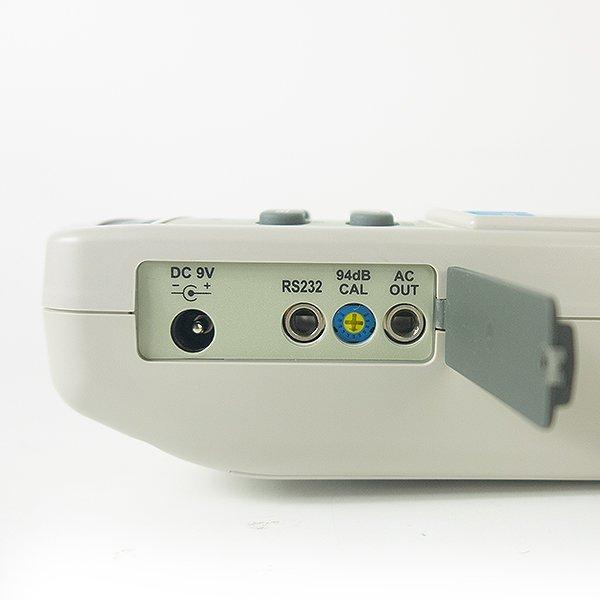

RS232 interface
ขนาดตัวเครื่อง 245 x 68x 45 mm (489 g)  ไมโครโฟน  Ø12.7 mm (0.5 inch)

SL-14035SD | ช่วงการวัด

Measurement Range  30 - 130 dB.

Resolution 0.1 dB.

Accuracy

Characteristics of " A " frequency weighting network meet IEC 61672 class 2 Under 94 dB input signal, the accuracy are :

31.5 Hz / ± 3.5 dB

63 Hz / ± 2.5 dB

125 Hz / ± 2.0 dB

250 Hz / ± 1.9 dB

500 Hz  / ± 1.9 dB

1 K Hz / ± 1.4 dB

2 K Hz / ± 2.6 dB

4 K Hz  / ± 3.6 dB

8 KHz / ± 5.6 dB

SL-14035SD | Power Supply

* Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.

* DC 9V adapter input. ( AC/DC power adapter is optional ).

SL-14035SD | ขนาดสินค้า

Weight

489 g/1.08 LB.

Dimension

245 x 68 x 45 mm.

( 9.6 x 2.7x 1.9 inch ).

SL-14035SD | อุปกรณ์ที่มาในชุด

  • ตัวเครื่อง
  • Sound Ball (SB-01)
  • Hard Carrying Case (CA-06)
  • SD Card 32GB

SL-14035SD | อุปกรณ์เสริม

  • Sound Calibrator 94dB (SC-941)
  • Sound Calibrator 94/ 114 dB (SC-942)
  • Sound Ball (SB-01), USB Cable (USB-01)
  • RS232 Cable (UPCB-02)
  • Data Acquisition Software (SW-E816)
  • Adapter (AP-9VA)

SL-14035SD | ข้อมูลจำเพาะ

Time weighting (FAST &SLOW)

Fast - t = 125 ms

* "Fast" range is simulated the human ear response time weighting.

Slow - t = 1 s

* "Slow" range is easy to get the average values of vibration sound level.

Range selector

Auto range : 30 to 130 dB.

Manual range :

2 range, 30 to 80 dB,

80 to 130 dB, 50 dB on each step,

with over & under range indicating.

Circuit

Custom one-chip of microprocessor LSI circuit.

Display

LCD size : 52 mm x 32 mm

LCD with green backlight ( ON/OFF ).

Measurement Type

SPL : Sound pressure level

Leq : Equivalent Continuous Noise Level

Measurement Range  30 - 130 dB.

Resolution 0.1 dB.

Accuracy

Characteristics of " A " frequency weighting network meet IEC 61672 class 2 Under 94 dB input signal, the accuracy are :

31.5 Hz / ± 3.5 dB

63 Hz / ± 2.5 dB

125 Hz / ± 2.0 dB

250 Hz / ± 1.9 dB

500 Hz  / ± 1.9 dB

1 K Hz / ± 1.4 dB

2 K Hz / ± 2.6 dB

4 K Hz  / ± 3.6 dB

8 KHz / ± 5.6 dB

Remark : The above spec. are tested under the W

environment RF Field Strength less

than 3 V/M & frequency less than 30 MHz only
