XL2 Spectral Limits Option activated in MyNTi Stockroom

XL2-SLP | ฟังก์ชั่นการวัด

XL2 Spectral Limits Option

*activated in MyNTi Stockroom

XL2-SLP | ข้อมูลจำเพาะ

• FFT and 1/12 octave function

— Comparing measurement results against

captures with relative or absolute curve

display

— Comprehensive tolerance handling with

tolerance masks based on captures for

passed/failed measurements

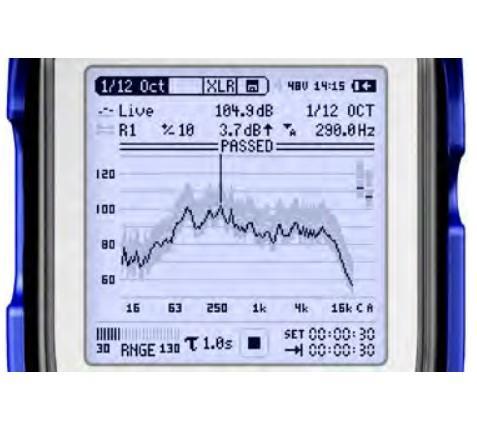

• 1/12 octave function

— High-resolution spectral analyzer

1/12 Oct + Tol

— Selectable 1/1, 1/3, 1/6 and 1/12

octave resolution

— Frequency band listening at rear speaker

and headphone

— Sound Mode: 11.5 Hz to 21.8 kHz

— Vibration mode: 0.73 Hz to 1.36 kHz

• FFT function

High-resolution Zoom FFT with selectable

frequency ranges and resolution up to 0.4 Hz

in the range from

— Sound mode: 5 Hz to 20 kHz

— Vibration mode: 1 Hz to 20 kHz

• SLMeter / RTA function

True peak level in 1/1 and 1/3 octave resolution

• Noise Curves

accordance to ANSI S12.2-2019, -1995 and

ISO 1996
