NTi XL2-SIR-365 XL2 Sound Insulation Reporter 365 (annual subscription service)

XL2-SIR-365 ฟังก์ชั่นการวัด

XL2 Sound Insulation Reporter

XL2-SIR-365 จุดเด่น

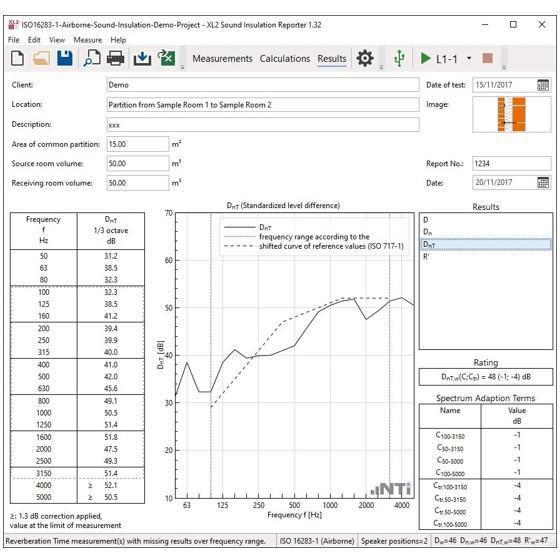

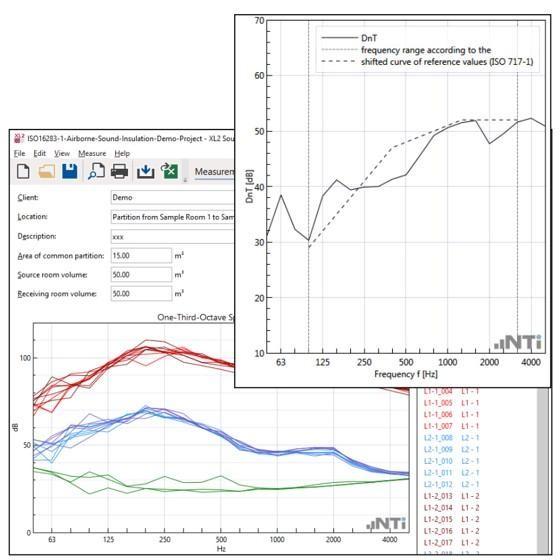

Sound Insulation Reporter is a PC-based software application that provides all the standard reports for Airborne,
Impact and Facade sound insulation measurements. Designed for acoustic consultants,
this comprehensive tool uses data gathered by the XL2 or XL3 Acoustic Analyzer, and quickly returns graphical analysis for all measurement positions.
The import of measurement data into the Sound Insulation Reporter software is enabled by an activated license for the individual instrument.
Airborne, Impact and Facade Sound Insulation
ISO 16283, ISO 10140, ASTM E336, ...
Standardized Reporting

XL2-SIR-365 ข้อมูลจำเพาะ

Standards

Airborne Sound Insulation
• ASTM E336-20
• ASTM E413
• BB93
• DIN 4109
• England/Wales: Approved Document E (2003)
• GB/T 19889.4 - 2005
• ISO 10140:2021
• ISO 140-4:1998
• ISO 16283-1:2014 incl. Rooms < 25m3
• ISO 717-1:2021
• ISO 12999-1:2014
• NEN 5077:2019
• SIA181:2006
• SIA181:2020
Impact Sound Insulation
• ASTM E1007
• ASTM E989
• BB93
• DIN 4109
• England/Wales: Approved Document E (2003)
• GB/T 19889.7 - 2005
• ISO 10140:2021
• ISO 140-7:1998
• ISO 16283-2:2018 incl. Rooms < 25m3
• ISO 717-2:2020
• ISO 12999-1:2014
• NEN 5077:2019
• SIA181:2006
• SIA181:2020
Facade Sound Insulation
• ASTM E966
• ASTM E1332
• DIN 4109
• GB/T 19889.5 - 2006
• ISO 140-5:1998
• ISO 16283-3:2016 incl. Rooms < 25m3
• ISO 717-1:2021
• ISO 12999-1:2014
• NEN 5077:2019
• SIA181:2006
• SIA181:2020

Sound Sources (ISO)

Airborne Sound Insulation  Speaker
Impact Sound Insulation  Tapping Machine / Rubber Ball
Facade Sound Insulation  Speaker / Road Traffic / Railway Traffice / Aircraft Traffic

Reporting

PDF via PDF-printer
XPS
Copy/paste data into User Reports

Languages

English, German and Chinese
Report: Czech, Dutch, French, Italian, Korean, Swedish

Operating System

Windows Vista, 7, 8.x and 10

Licensing

• Activated annual subscription service “Sound Insulation Reporter 365” online at my.nti-audio.com or permanently installed “Sound Insulation
Option” in XL2; this enables the import of measurement data into the Sound Insulation Reporter software
• Sound Insulation Reporter can be installed on multiple computers

XL2 Requirements

• Installed option “Extended Acoustic Pack” (enables RT60 reverberation time in 1/3 octave band resolution)
• Optional “Remote Measurement Option”; applicable in case sending and receiving room is measured simultaneously with two connected instruments controlled directly within the Sound Insulation Reporter software.
