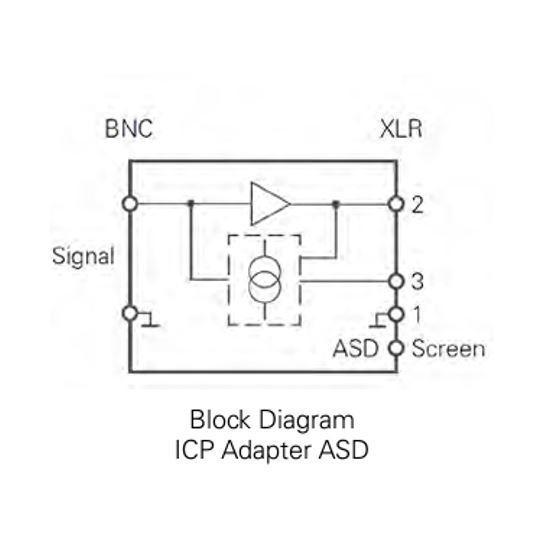

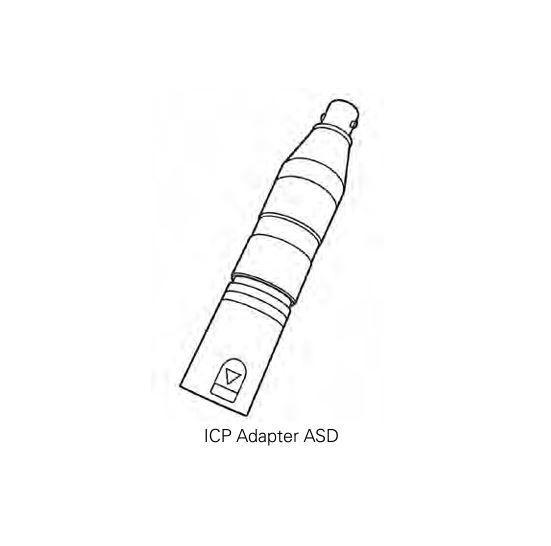

The ICP Adapter ASD is plugged on the XL2 or XL3 Analyzer and generates the power supply for a connected accelerometer or other ICP-type sensor
XL2-48V ฟังก์ชั่นการวัด
- Acoustic measurements
- Vibration measurements (XL2 only)
XL2-48V อุปกรณ์ที่มาในชุด
The adapter includes a programmable electronic data sheet, which stores the sensitivity and the serial number of the connected sensor.
XL2-48V ข้อมูลจำเพาะ
Input / Output
BNC / XLR
ICP@ Power Supply for Sensors
4 mA +0.02 mA
Power Supply
48V Phantom Power (from XL3/XL2)
Maximum Input Level
ㆍwith XL3 or XL2 in sound mode
ㆍwith XL2 in vibration mode
8.2 V @ 3% THD
145 dB @ 20 mV/Pa
353 m/s2,36 g @ 20 mV/(m/s2)
Bandwidth @ -3 dB (typical)
ㆍwith XL3
ㆍ with XL2 in sound mod
ㆍwith XL2 in vibration mode
0.7 Hz . . 300 kHz
0.7 Hz . . 38 kHz
e 2.1 Hz . . 23.6 kHz
0.7 Hz . . 23.6 kHz
THD @ 1 kHz, 1 Vrms
< -80 dB
Residual Noise (typical)
ㆍwith XL3 or XL2 in sound mode
ㆍwith XL2 in vibration mode
LA = 2.8 pV @ 4.4 Hz .. . 23.0 kHz
. 23.0 kHz LZ = 5.3 pV @ 4.4 Hz
17 pV @ 0.7 Hz . 23.0 kHz
14 pV @ 1 Hz . . 80 / 315 Hz
DC Offset Voltage 12+2VDC
Weight 60 g, 2.1 oz
Dimensions Length x Diameter: 97 x 19 mm (3.8"x 0.7")
NTi Audio # 600 010 223
