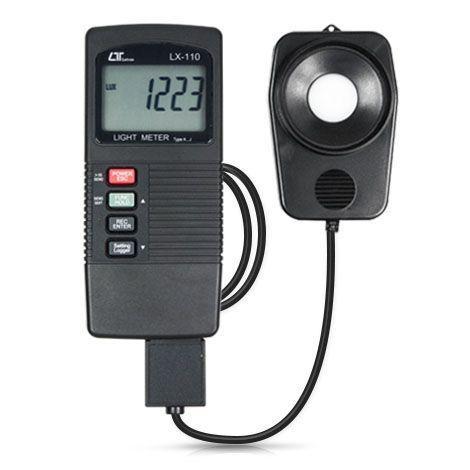

Lutron LX-110 เครื่องวัดแสงลักซ์และอุณหภูมิ

LX-110 | ฟังก์ชั่นการวัด

Light Meter

Thermometer

LX-110 | ช่วงการวัด

Light meter (Auto range)

LUX 0 to 20,000 LUX,    resolution 1 Lux,    Accuracy ± ( 5% rdg ± 8 dgt )

Ft-cd 0 to 2,000 Ft-cd, resolution 0.1 Ft-cd,Accuracy ± ( 5% rdg ± 8 dgt )

Type K/J Thermometer

Type K

Resolution 0.1 ℃   Range  -50.0 to 1300.0 ℃   Accuracy ±( 0.4 % + 0.8 ℃ )

                                               -50.1 to -199.9 ℃   Accuracy ±( 0.4 % + 1 ℃ )

                     0.1 ℉   Range  -58.0 to 2372.0 ℉   Accuracy ±( 0.4 % + 1.5 ℉ )

                                                 58.1 to -327.8 ℉   Accuracy ±( 0.4 % + 1.8 ℉ )

Type J

Resolution 0.1 ℃   Range  -100.0 to 1100.0 ℃  Accuracy  ± ( 0.4 % + 0.8 ℃ )

                                                 -50.1 to -199.9 ℃  Accuracy  ± ( 0.4 % + 1 ℃ )

                     0.1 ℉   Range   -58.0 to 2012.0 ℉  Accuracy  ± ( 0.4 % + 1.5 ℉ )

                                                 -58.1 to -327.8 ℉  Accuracy  ± ( 0.4 % + 1.8 ℉ )

LX-110 | Power Supply

006P DC 9V battery ( Alkaline or Heavy duty type )

DC 9V adapter input (AC/DC power adapter is optional)

LX-110 | ขนาดสินค้า

Weight: 306 g/0.67 LB

Dimension: Meter 135 x 60 x 33 mm

                      Probe 105 x 46 x 29 mm

LX-110 | อุปกรณ์ที่มาในชุด

Instruction manual....................1 PC

LX-110 | อุปกรณ์เสริมแยกจำหน่าย

Optional accessories

* Type K thermocouple probe (TP-01, TP-02A. TP-03, TP-04)

* AC to DC 9V adapter

* RS232 cable, UPCB-02

* USB cable, USB-01

* Data Acquisition software,

* Data Logger software, SW-DL2005

* Carrying case, CA-52A

LX-110 | ข้อมูลจำเพาะ

Light meter (Auto range)

LUX 0 to 20,000 LUX,    resolution 1 Lux,    Accuracy ± ( 5% rdg ± 8 dgt )

Ft-cd 0 to 2,000 Ft-cd, resolution 0.1 Ft-cd,Accuracy ± ( 5% rdg ± 8 dgt )

Type K/J Thermometer

Type K

Resolution 0.1 ℃   Range  -50.0 to 1300.0 ℃   Accuracy ±( 0.4 % + 0.8 ℃ )

                                               -50.1 to -199.9 ℃   Accuracy ±( 0.4 % + 1 ℃ )

                     0.1 ℉   Range  -58.0 to 2372.0 ℉   Accuracy ±( 0.4 % + 1.5 ℉ )

                                                 58.1 to -327.8 ℉   Accuracy ±( 0.4 % + 1.8 ℉ )

Type J

Resolution 0.1 ℃   Range  -100.0 to 1100.0 ℃  Accuracy  ± ( 0.4 % + 0.8 ℃ )

                                                 -50.1 to -199.9 ℃  Accuracy  ± ( 0.4 % + 1 ℃ )

                     0.1 ℉   Range   -58.0 to 2012.0 ℉  Accuracy  ± ( 0.4 % + 1.5 ℉ )

                                                 -58.1 to -327.8 ℉  Accuracy  ± ( 0.4 % + 1.8 ℉ )

Circuit: Custom one-chip of microprocessor LSI circuit

Display LCD size : 44 mm x 29 mm dual function LCD display

Data Logger number: Max. 1,600 point data logger

Thermometer Input Socket: Standard 2 pin thermocouple socket
