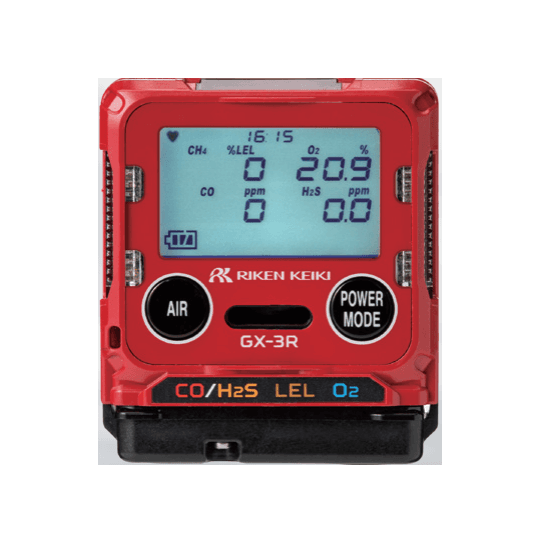

GX-3R Poratable Gas Detector %LEL / O2 / CO / H2S with Lithim battey and adapter

GX-3R | ฟังก์ชั่นการวัด

เครื่องตรวจจับแก๊สแบบพกพา สามารถเลือกการตรวจจับแก๊สได้สูงสุดถึง 4 ชนิด มาพร้อมฟังก์ชั้น Man down alarm / Panic alarm

GX-3R | จุดเด่น

GX-3R-Aเครื่องตรวจจับแก๊สแบบพกพา รองรับการตรวจจับแก๊สได้สูงสุดถึง 4 ชนิด %LEL / O2 / CO / H2S

GX-3R | ช่วงการวัด

%LEL 0 to 100%LEL

O2  0 to 25.0vol% (to 40.0vol%)

CO  0 to 500 ppm (to 2000 ppm)

H2S 0 to 100.0 ppm (to 200.0 ppm)

GX-3R | Power Supply

AAA alkaline battery × 2 or Lithium ion rechargeable battery

GX-3R | ขนาดสินค้า

Dimensions / Weight

With rechargeable battery unit: Approx. 73mm(W)×65mm(H)×26mm(D) / Approx. 120 g
With dry battery unit: Approx. 73mm(W)×65mm(H)×34mm(D) (excluding protrusions) / Approx. 140 g

GX-3R | อุปกรณ์ที่มาในชุด

Main Unit

Manual

GX-3R | อุปกรณ์เสริม

Pump unit RP-3R: An external electric pump. Allows use for suction sampling.

Docking station SDM-3R: Allows the user to perform a simplified pre-work check (bump test) and gas calibration automatically.

Heat-resistant case: Unit case for hot environment. (uses a safety pin.)

Leather case: Unit case for protection against dirt. (uses the clip on the unit.)

Belt clip: Allows the product to be attached to a belt or pocket.

Arm/ Ankle belt: Belt for securing the unit to your arm or ankle.

Protective film: Protects the display.

Manual suction unit: External manual pump. Draws in at greater flow rates than electric pump.

Charging cradle: Cradle for recharging the unit.

Five-unit AC adaptor: One AC adaptor recharges up to five units. (Recharging times remain unchanged.)

Calibration adapter: Adapter for connecting the gas sampling bag to the main unit for calibration.

Data management program: Software for viewing and managing measurement data.

GX-3R | ข้อมูลจำเพาะ

Detection method

Diffusion type (Changeable to sampling type by attaching RP-3R)

Gas alarm indication

Lamp flashing, continuous modulating buzzer sounding, gas concentration display blinking, vibration
Reset operation: Self-latching

Fault alarm

System abnormality, sensor abnormality, battery voltage drop, calibration failure

Fault alarm indication

Lamp flashing, intermittent buzzer sounding, detail display
Reset operation: Self-latching

Panic alarm

Two levels: Prealarm and main alarm (after 5-second prealarm)
Reset operation: Self-latching

Man down alarm

Three levels: Prealarm 1 (60 seconds), prealarm 2 (75 seconds), main alarm (90 seconds)
Reset operation: Self-latching

Displays

LCD digital (full-dot), backlight
Operation status, clock, battery level, temperature, peak reading, calibration notification

Buzzer volume

Approx. 95 dB (30 cm)

Languages

Japanese/English/French/Spanish/Portuguese/German/Italian/Russian/Korean/Chinese (simplified/traditional)
