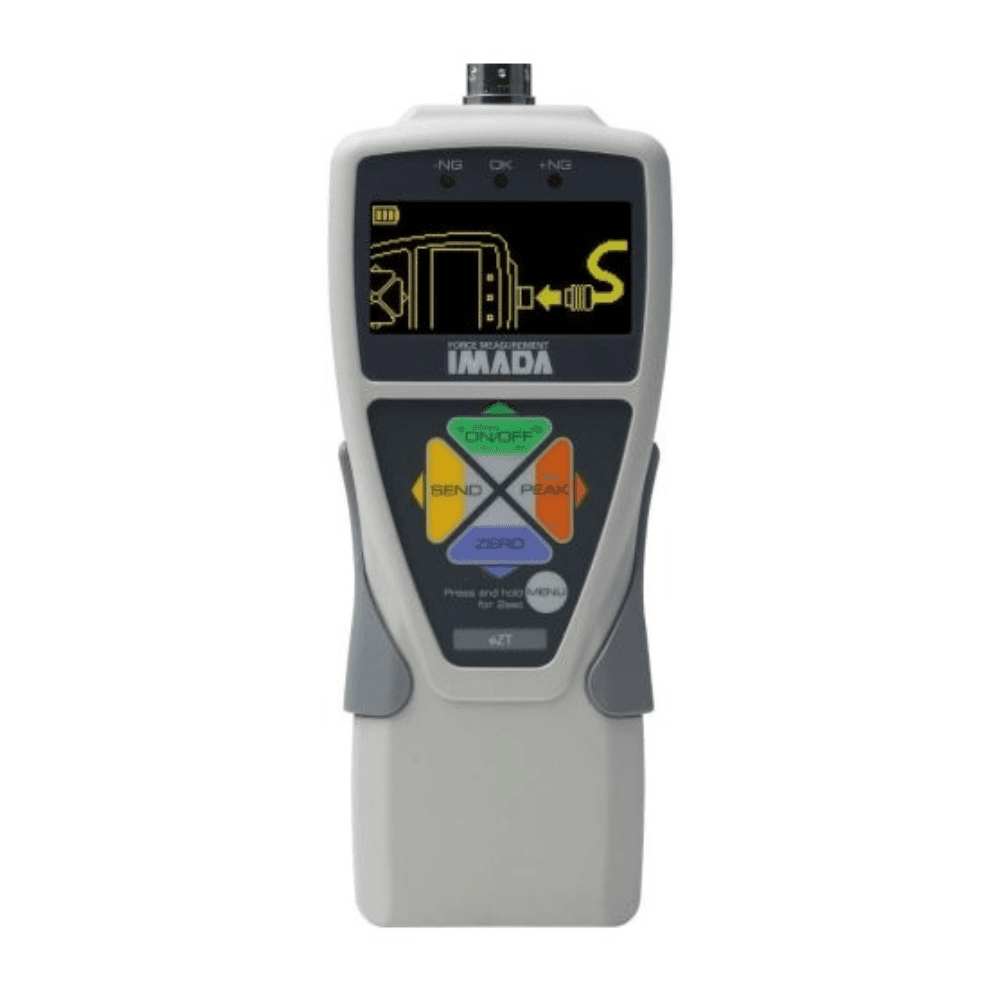

IMADA eZT Digital Force Gauge

Model

eZT

Accuracy

+/-0.2%F.S. (*1)

Unit of measurement

Depends on load cell and settings

(N, kN, kgf, lbf N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in)

Display

4-digit

Display update

16 / sec

Sampling rate

2000 data / sec at maximum (*2)

Battery

Approx. 6.5 hours (2 hours charge) (*3)

Operating environment

Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH

Functions

Customized display (header and footer), Peak hold (tension and compression), Internal 1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Time display, 1st/2nd peak, Displacement detection at force peak value, Displacement zero reset at selected force, setting lock

Output

USB, RS232C, +/- 2VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm, Sub comparator 2 steps (output of large or small judgment), USB flash drive, Displacement.

Overload warning

Approx.110%F.S. (Warning message and alarm)

External connecting switch

Power ON / OFF / Send and Hold / Zero reset / Peak and Real-time switching

Available liner scales (*4)

- Online driver output (a line receiver according to RS422/485 must be built in.)

- Open collector output (Voltage drop between contacts must be smaller than 0.5V.)

Weight

Approx. 490g

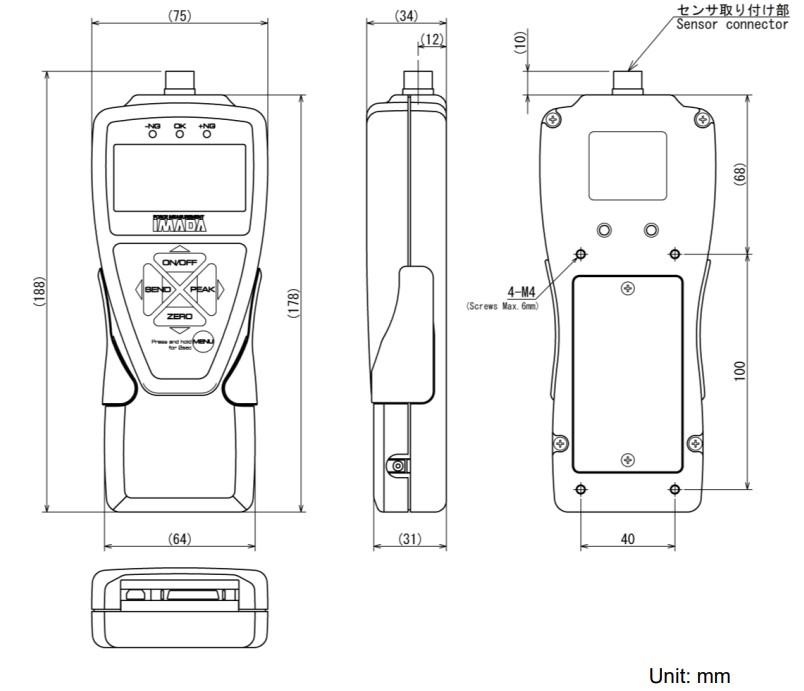

Dimensions

Please refer to dimensions.

Accessory

AC adapter, CD driver (including data logging software) (*5), USB cable, Carrying case, Adaptor for USB flash drive (*6)
