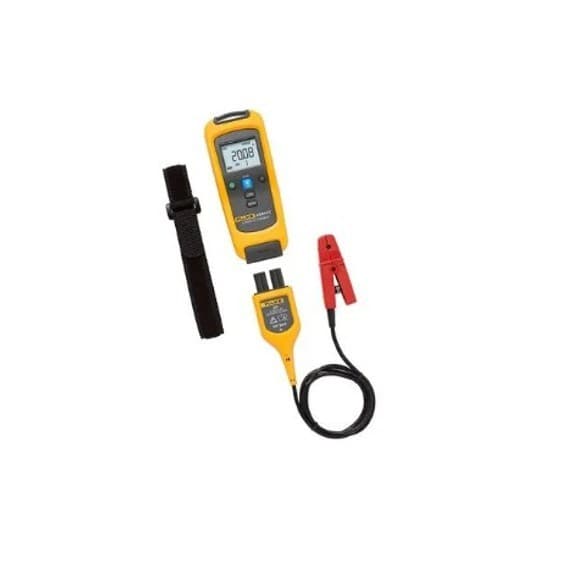

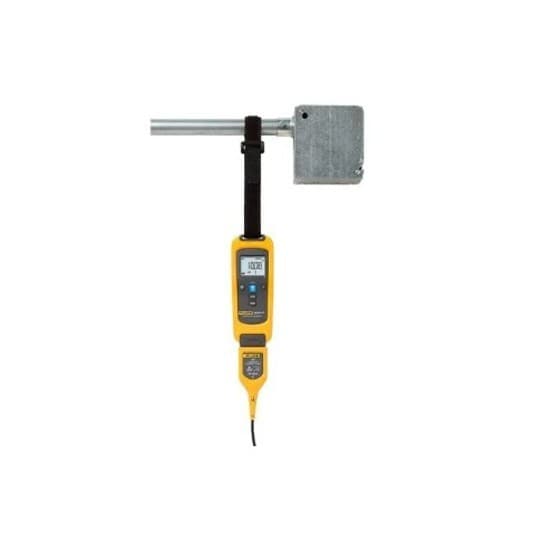

Fluke-a3004-FC แคลมป์มิเตอร์วัดกระแสตรง (DC) 4–20 mA

Range

0.05 mA to 20.99 mA DC
21.0 mA to 99.9 mA DC

Resolution

0.01 mA
0.1 mA

Accuracy

0.2% ± 5 digits
1.0% ± 5 digits

LCD w/backlight

3 ½ digits

Log rate/Interval

1 sec minimum/adjustable by PC or front panel

Battery type

2 AA
NEDA 15 A
IEC LR6

Battery life

45 hours

Memory

Record up to 65,000 readings

RF communications

2.4 GHz ISM Band

RF communication range

Open air, unobstructed: Up to 20 m
Obstructed, sheetrock wall: Up to 6.5 m
Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m

Operating temperature

-10°C to +50°C

Storage temperature

-40°C to +60°C

Temperature coefficient

Add 0.1 X (specified accuracy) /°C (< 18°C or > 28°C)

Operative humidity

90% at 35°C
75% at 40°C
45% at 50°C

Altitude

Operating 2,000 m
Storage 12,000 m

EMC

EN 61326-1:2013

Maximum voltage between terminal and earth ground (module)

30 V DC or AC rms

Certifications

CSA C-US
CE
FCC: T68-FBLE
IC: 6627A-FBLE

Ingress Protection (IP) rating

IP42

Jaw opening

4.5 mm

Size (HxWxD)

16.5 mm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)

Weight

0.299 kg (0.8 lb)
