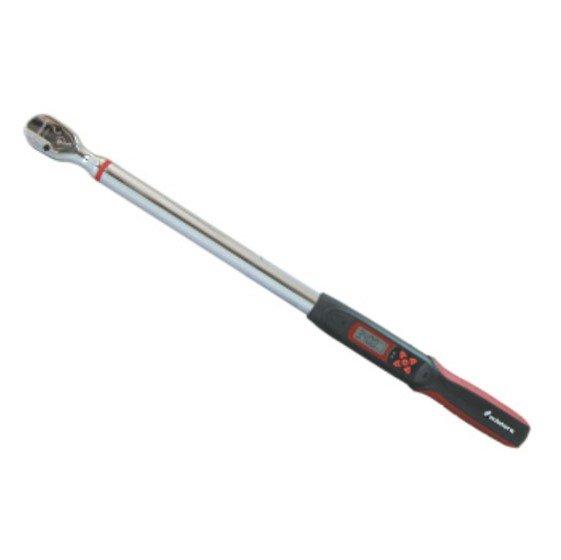

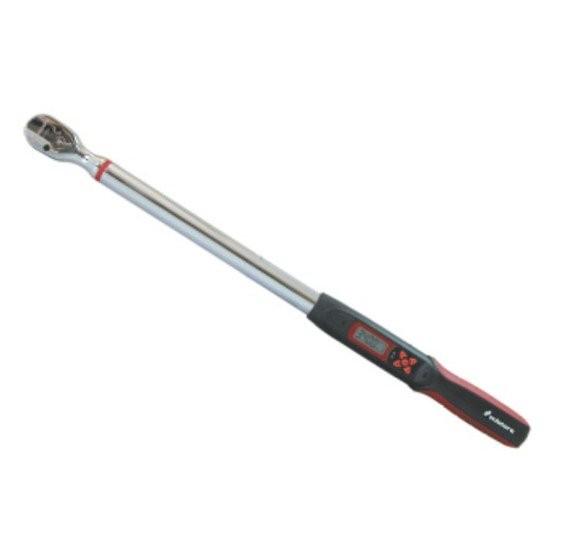

Eclatorq DT4-340BN ประแจวัดแรงบิดดิจิตอล Digital Torque Wrench
dt4-340bn
฿11,600.00(ไม่รวมภาษี)
Digital Torque Wrench หัวแบบ Fixed Head รองรับช่วงการวัด 17~340 N-m Memory 50 Data 2 LED Lights (1 Red + 1 Green) ยี่ห้อ Eclatorq
Eclatorq DT4-340BN ประแจวัดแรงบิดดิจิตอล Digital Torque Wrench
ประแจวัดแรงบิดดิจิตอล หัวแบบ Fixed Head (เปลี่ยนหัวไม่ได้)
ช่วงการวัด
Accuracy | Max Operation Range | Measured Torque Range | Resolution |
CW: +/-2% | 340 N-m 3469 kg-cm | 17~340 N-m 12.5~250.5 ft-lb | 0.1 N-m |
*Total torque control form a miniscule 1.5 N-m to a massive 850 N-m.
* Accuracy is guaranteed from 20% to 100% full scale.
* A:+/-1%(CW),B: +/-2%(CW), N: No communication,R:With communication
Battery
AA × 2
ขนาดสินค้า
Square Drive (inches) 1/2
Length (mm) 650
Specifications
Bright LED | 2 LED (1 Red+ 1 Green) |
|---|---|
Pre-setting No. | 9 sets |
Operation Mode | Peak hold (P) / Track (T) |
Unit Selection | N-m, in-lb, ft-lb, kg-cm |
Head Type | Lever Type Ratchet |
Gear Teeth | 36 |
Button | 5 |
Battery Life (Continuous operation) | 110 hrs. |
Battery Life (Standby) | 1 year |
Operating Temperature | -10˚C~60˚C |
Storage Temperature | -20˚C~70˚C |
Humidity | Up to 90 % non-condensing |
Drop Test | 1 m |
Vibration Test | 10G |
Life Time | 10000 cycle |
Environmental Test | Pass |
Electromagnetic Compatibility Test | Pass |
Data Memory Size | 50 |
PC Connectivity | No |
