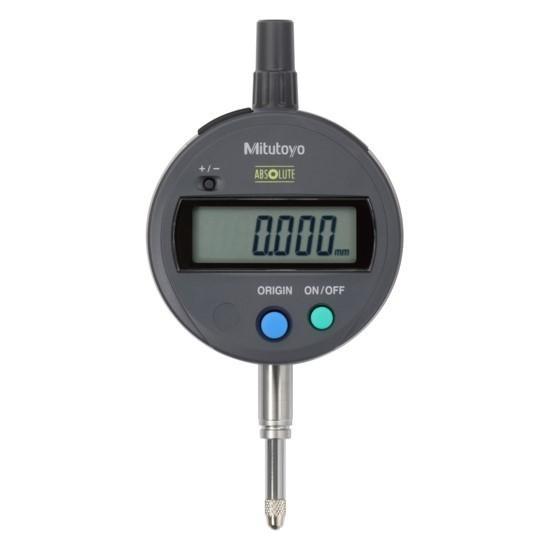

Mitutoyo M-543-790-10 Digital Dial Gage 543-790-10 (0.001×12.7mm)

M-543-790-10 ฟังก์ชั่นการวัด

ไดอัลเกจ (Dial gauge)

M-543-790-10 จุดเด่น

The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
You can access all functions by using the large, user-friendly buttons on the front of the indicator.
Large character height of 9 mm provides good readability.
Exceptional battery life.

M-543-790-10 ช่วงการวัด

12.7 mm

Digital step: 0.001 mm
Max. Permissible Error E MPE (Total Range): 0.003 mm
H MPE (Hysteresis): 0.002 mm
R MPE (Repeatability): 0.002 mm

Measuring force MPL: ≤1.5 N

M-543-790-10 Power Supply

1 battery SR44

M-543-790-10 ขนาดสินค้า

Stem ∅: 8 mm
Contact point: Carbide ball, thread: M2.5x0.45

150 g

M-543-790-10 ข้อมูลจำเพาะ

Digital/Analog: Digital
Inch-Metric: Metric
Delivered: Including SR44 battery, certificate of inspection

Protection: IP42
Type: EN ISO Standard
Display: LCD, character height 9 mm
Max. response speed: Unlimited
Alarm: Low voltage, sensor error, ABS data composition error

Battery life:
Approx. 18000 hours (0.001 mm type),
approx. 20000 hours (0.01 mm type)
Remarks:
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
Digimatic data output: Yes
ON/OFF: Yes
ORIGIN (ABS-Zero): Yes
Counting direction switchable: Yes
Digital Scale: Electrostatic capacitance type absolute linear encoder
