2-20 ฟังก์ชั่นการวัด

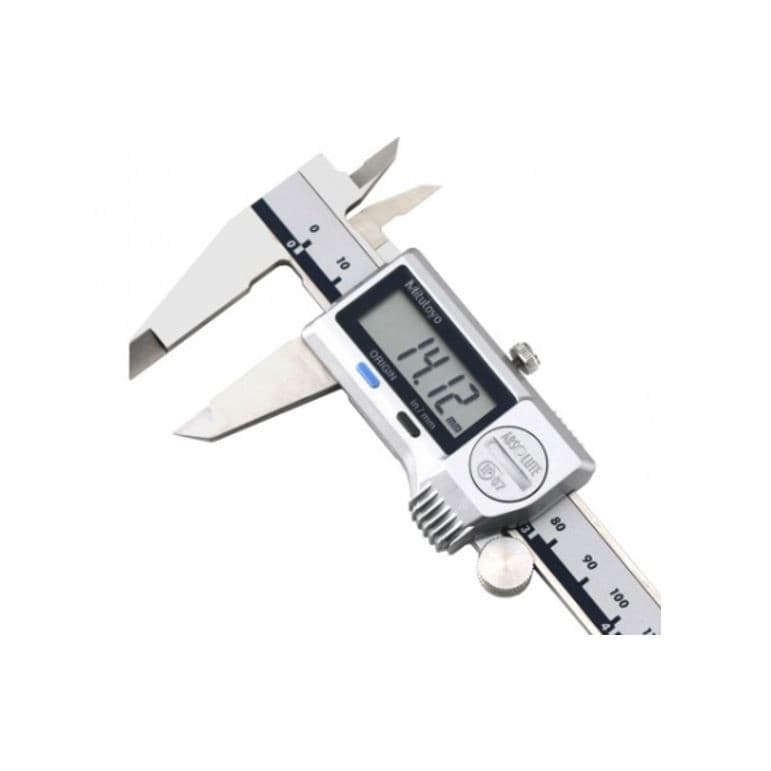

คาลิเปอร์ดิจิตอล Absolute Coolant Proof Caliper
M-500-712-20 จุดเด่น
This IP67 ABSOLUTE digimatic caliper allows reliable measurements in a wide range of situations and offers you the following benefits:
- Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
- It is dustproof, complies with EN60529 and withstands temporary complete immersion in water without suffering any damage.
- ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
M-500-712-20 ช่วงการวัด
0 - 150 mm
Max. Permissible Error E MPE: ±0,02 mm
Max. Permissible Error S MPE: ±0,04 mm
Digital step: 0,01 mm
M-500-712-20 Power Supply
SR44 battery

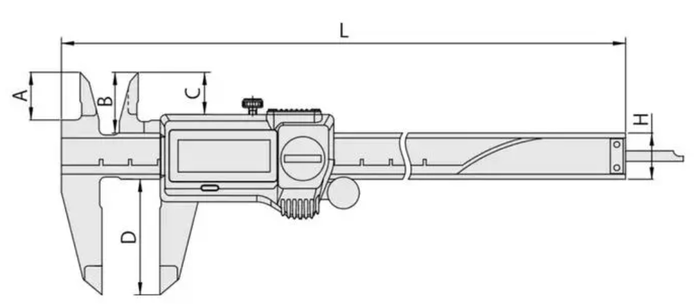

M-500-712-20 ขนาดสินค้า
L: 233 mm
A: 16.5 mm
B: 21 mm
C: 14.6 mm
D: 40 mm
H: 16 mm
168 g
M-500-712-20 ข้อมูลจำเพาะ
Depth bar: flat
Thumb roller: Yes
Data output: Yes
Max. response speed: Unlimited
Display: LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm)
ORIGIN (ABS-Zero): Yes
Auto Power OFF after 20 min. non use: Yes
Low voltage alarm: Yes
Battery life: Approx. 5 years under normal use
