เครื่องชั่งน้ำหนักดิจิตอลนับจำนวน 60Kg | ความละเอียด 0.005kg หน้าจอ LCD backlight ขนาดใหญ่อ่านค่าง่าย มาตรฐานป้องกัน IP65 Accumulation (M+) function, Comparator function, Percent mode ขนาดถาดชั่ง 390 × 424mm ใช้งานได้ทั้งแบบ AC adapte ยี่ห้อ AND, Japan
HW-60KC | ฟังก์ชั่นการวัด

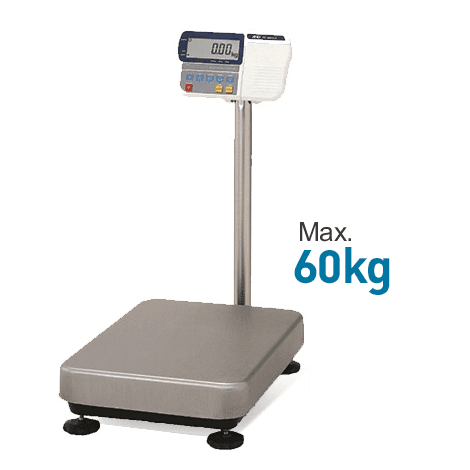

เครื่องชั่งน้ำหนักดิจิตอลแบบตั้งพื้น | Max.60Kg
HW-60KC | จุดเด่น
■ High-speed measurement—stabilization within 1.5 second
■ Bright and multi-colored 5-step LED comparator lights
■ Auto-tare and negative comparison functions realizing "take-away" check weighing

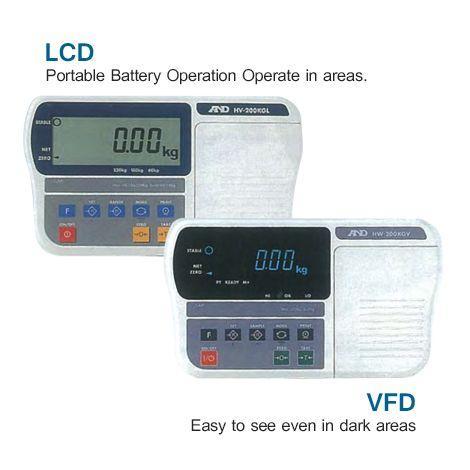

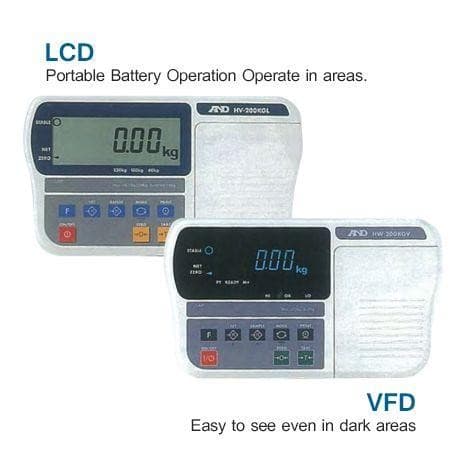

■ Highly-visible, LCD display (26 mm character height) with white backlight
■ Quick and easy settings using the alphanumeric keypad
■ Key lock function to prevent operators from making changes to the scale settings
■ Optional roller conveyers for weighing in production lines
■ Built-in printer for creating paper-based records on the spot (for the HV/W-CP series)
■ Universal Flexi Coms (UFC) function to edit serial data output/printout format
■ Wide selection of capacities and resolutions
■ IP65 dust & waterproof base unit with a stainless steel (SUS430) pan
■ Three slots for optional data communication interfaces
■ Display hold function
■ Counting mode function
■ Accumulation (M+) function

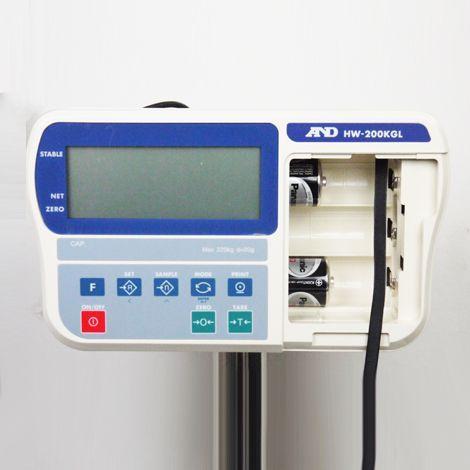

■ Operation with either AC adapter or four D batteries (for the HV/W-C series)
■ Display angle adjustable to four levels
■ Optional 5 m extension cable and wall-mount bracket for the display unit
■ Display cover provided as standard
HW-60KC | ช่วงการวัด
kg
Capacity 60 kg
Min. display 0.005 kg
lb
Capacity 150 lb
Min. display 0.01 lb
oz
Capacity 2400 oz
Min. display 0.2 oz
HW-60KC | Power Supply
AC adapter or four D batteries (approx. 1200 hours using alkaline batteries, with display backlight and LED comparator lights OFF)
HW-60KC | ขนาดสินค้า
390 × 621 × 771 mm / 1100 g
HW-60KC | อุปกรณ์เสริม
AD-8127 : Compact printer
AD-8526 : RS-232C/Ethernet (TCP/IP) converter
AD-8527 : Quick USB adapter
AD-8920A : Remote display
AD-8922A : Remote controller
AX-USB-9P : RS-232C/USB converter
AX-PP147-S : Paper for the built-in printer (5 rolls)
AX-SW128 : Foot switch
HW-60KC | ข้อมูลจำเพาะ
kg
Capacity 60 kg
Min. display 0.005 kg
lb
Capacity 150 lb
Min. display 0.01 lb
oz
Capacity 2400 oz
Min. display 0.2 oz
Counting mode
Max. countable no. 120,000
Number of samples 5, 10, 20, 50 or 100
Stabilization time Within 1.5 seconds
Repeatability (std. deviation) [kg] 0.002
Linearity [kg] ±0.002
Sensitivity drift ±20 ppm / ˚C (5 ˚C to 35 ˚C / 41 ˚F to 95 ˚F)
Display 7 segment LCD (Character height: 25 mm) with backlight 3-color, 5-step LED comparator lights
Display update 10 times / second
Operating temperature -10 ˚C to 40 ˚C / 14 ˚F to 104 ˚F, 85% R.H. or less (no condensation)
Power supply AC adapter or four D batteries (approx. 1200 hours using alkaline batteries, with display backlight and LED comparator lights OFF)
Weighing pan size 390 × 424 mm
Dimensions (W × D × H) 390 × 621 × 771 mm
Weight (approx.) 1100 g
