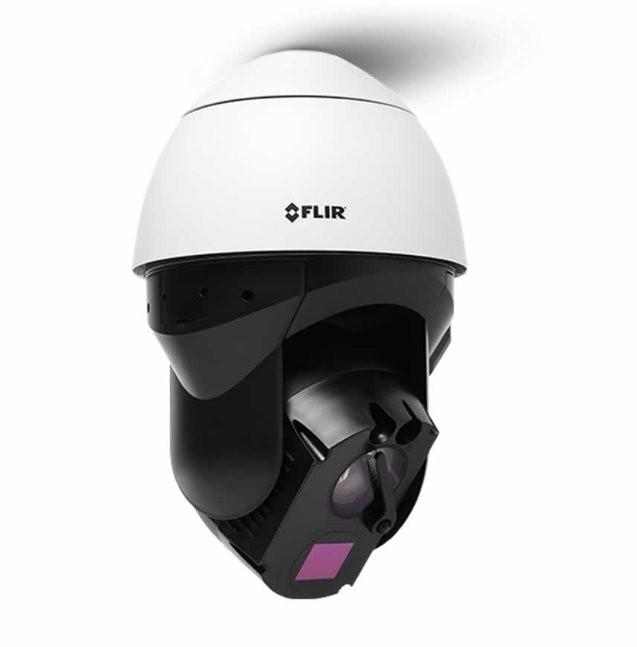

Introduction to the FLIR Elara DX-612 Multispectral PTZ Camera

The FLIR Elara DX-612 is an advanced multispectral Pan-Tilt-Zoom (PTZ) camera that sets the benchmark for high-quality security and surveillance solutions. Known for its capability to capture vivid and detailed images across varying environmental conditions, this camera is a favorite among security professionals worldwide.

Key Features

Key Features & Benefits

• Multispectral Imaging: Integrates a thermal sensor and 4K visible-light camera to deliver situational awareness in varied conditions (total darkness, glare, weather)

• Thermal Detection: Long-life, uncooled VOx microbolometer; spectral range 7.5 µm to 13.5 µm

• Field of View & Optics (Thermal Channel): 12° horizontal × 9° vertical FOV with a 36 mm focal length (F/1.0)

• Visible Camera / Zoom: 4K resolution; optical zoom up to 31× (6.5 mm to 202 mm lens)

• Video Streams & Compression: Thermal: H.264 + M-JPEG; Visible: two independent H.264 / M-JPEG streams

• Pan / Tilt Mechanics:
   – Continuous 360° pan (0.1° to 90°/s)
  – Tilt from –10° to +190° (0.1° to 60°/s)

• Power & Interface:
   – Input: 24 VAC (±10%) or via PoE++ (IEEE 802.3bt Type 3)
  – Power consumption: ~61 W (24 VAC) or ~43 W (PoE mode)

• Environmental / Durability:
   – Operating temp: –40 °C to +60 °C
   – Protection: IP66, NEMA 4X, vandal-resistant (IK10, except for optically active windows)
  – Lens wiper / washer (optional) for maintaining clarity in harsh environments

• Cybersecurity & System Integration:
   – Hardened firmware and security measures (TLS/HTTPS, authentication, access control)
   – Supports ONVIF Profile S and other network/VMS protocols
  – Web-based interface simplifies configuration and management

Benefits of Using FLIR Elara DX-612

The Elara DX-612 provides unparalleled imaging quality, delivering both high-resolution thermal and visible-light imagery in one integrated package.

Enhanced Security

With its multispectral capabilities, the DX-612 ensures intruders are detected at any time of day or night, providing peace of mind to security personnel.

Cost-Effective Surveillance

The camera’s ability to operate in extreme weather conditions reduces the need for multiple devices, thereby saving costs and minimizing maintenance efforts.

Applications

1. Border Security: Ideal for monitoring expansive areas with minimal infrastructure.

2. Critical Infrastructure Protection: Protects key assets with 24/7 surveillance.

3. Traffic Management: Utilized in monitoring and managing vehicular and pedestrian traffic.

Conclusion

The FLIR Elara DX-612 Multispectral PTZ Camera is a powerful tool for anyone serious about security and surveillance. Its advanced features and reliable performance make it an indispensable choice for various applications, from border security to traffic management. By investing in the Elara DX-612, organizations can ensure comprehensive coverage and protection of valuable assets.
