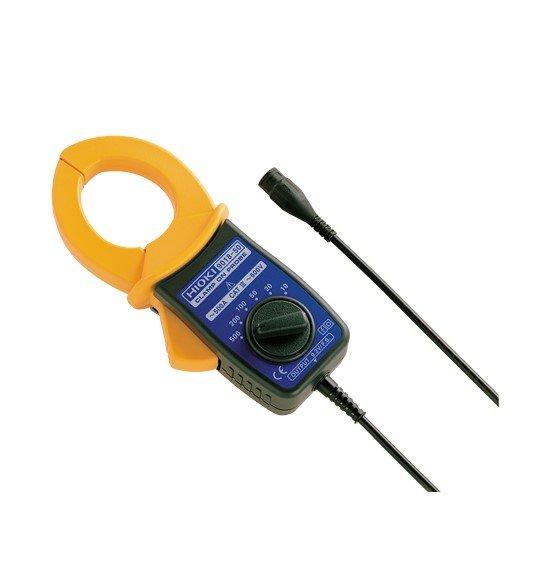

HIOKI 9018-50 แคลมป์วัดไฟสำหรับ DT4281, DT4261, DT4253, DT4255, DT4256

φ46 mm (1.81 in)

78 mm (3.07 in) W × 188 mm (7.40 in) H × 35 mm (1.38 in) D, 420 g (14.8 oz), cord length: 3 m (9.84 ft)

10 A to 500 A AC, 6 ranges

±1.5% rdg. ±0.1% f.s. (45 to 66 Hz)

Add to amplitude accuracy : ± 1% rdg.
Add to phase accuracy : ± 2.5° for frequencies from 40 Hz to 3 kHz

0.2 V AC f.s. (f.s. = setting rage)
(Connect to a voltage input device providing a high input impedance of 1 MΩ)

150 A rms continuous (10/20/50 A ranges)
400 A rms continuous (100/200 A ranges)
650 A rms continuous (500 A range)
(For 40 Hz to 100 Hz: 100 %, and for 100 Hz to 1 kHz: within 50 % of derating)

600 V rms (50 Hz/60 Hz, CAT III)
