Lutron CD-4319SD เครื่องวัดคุณภาพน้ำ 6 In 1 | SD Memory CardLutron CD-4319SD เครื่องวัดคุณภาพน้ำ 6 In 1 | SD Memory CardLutron CD-4319SD เครื่องวัดคุณภาพน้ำ 6 In 1 | SD Memory Card
LUTRON

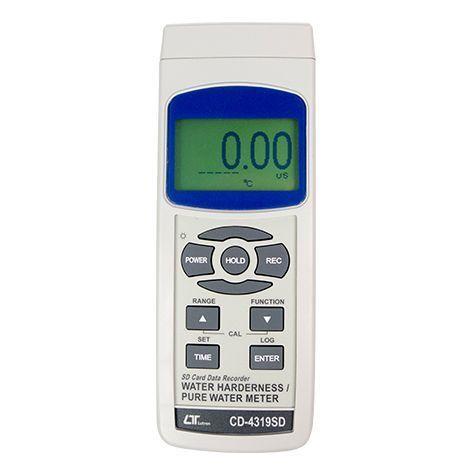

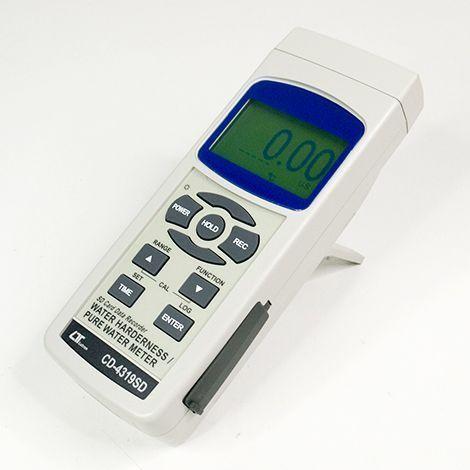

Lutron CD-4319SD เครื่องวัดคุณภาพน้ำ 6 In 1 | SD Memory Card

รหัสสินค้า

CD-4319SD

฿14,500.00(ไม่รวมภาษี)

จำนวน

สินค้าใกล้หมดแล้ว

ภาพรวม

เครื่องวัดคุณภาพน้ำ 6 in 1 | SD Memory Card ค่านำไฟฟ้า | TDS | ความเค็ม | อุณหภูมิ | ความกระด้าง | Resistivity

เพิ่มคำถาม

CD-4319SD | ฟังก์ชั่นการวัด

เครื่องวัดค่านำไฟฟ้า, TDS, ความกระด้างของน้ำ, อุณหภูมิ, ความเค็ม และการต้านทานไฟฟ้าในน้ำ ความแม่นยำสูง

 มีฟังก์ชั่น Auto power off, Data hold, record MAX. and MIN. reading, ฟังก์ชั่นชดเชยอุณหภูมิอัตโนมัติ (0 ถึง 60℃) และเชื่อมต่อคอมพิวเตอร์ด้วย RS232, USB PC COMPUTER interface


Lutron CD-4319SD เครื่องวัดคุณภาพน้ำ 6 In 1 | SD Memory Card


CD-4319SD | จุดเด่น

ความแม่นยำสูง สำหรับการใช้งานที่หลากหลาย มาพร้อมเซนเซอร์ (Pt glass electrode) High performance for the low conductivity (pure water)

บันทึกข้อมูลด้วย SD Card (รองรับ SD Card 1 ถึง 32 GB) บันทึกแบบ Auto และ Manual ตัวเครื่อง built-in นาฬิกาและปฏิทิน

CD-4319SD | ช่วงการวัด

Conductivity (mS), TDS (ppm)

Measurement Range 20 μS / 200 uS / 2 mS / 20 mS / 200 mS

Resolution 0.01u / 0.1uS / 0.001mS / 0.01mS / 0.1mS


Hardness

Range 10 ppm - 100,000 ppm

Accuracy ± (2% F.S. + 1 d)


Resistance

Automatic range 5 Ω-cm to 99.99 MΩ-cm


Temperature Range 0 to 60ºC


Salt Range 0 to 12% salt (% weight)

CD-4319SD | Power Supply

Battery AA x 6, AC Adapter

CD-4319SD | ขนาดสินค้า

Display

LCD size : 52 mm x 38 mm
LCD with green backlight (ON/ OFF)


Dimension (Weight)

Main Unit: 177 x 68 x 45 mm (489 g)

Probe: ø22 x 120 mm

CD-4319SD | อุปกรณ์ที่มาในชุด

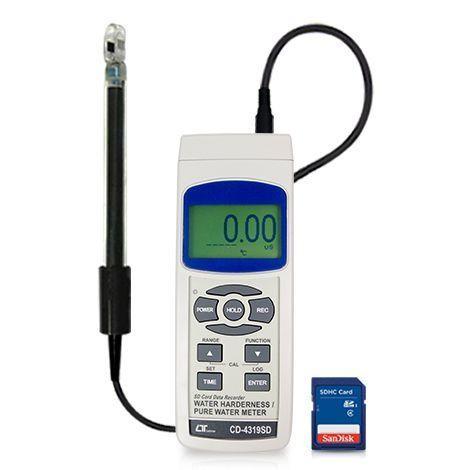

CD-4319SD

Conductivity, TDS, Salt pt glass probe (CDPB-04)

Hard carrying case (CA-06)

Instruction manual

SD Card 32GB x 1

CD-4319SD | อุปกรณ์เสริม

1.413 mS Conductivity Standard Solution (CD-14)

AC Adapter (AP-9VA)

USB Cable (USB-01)

RS232 Cable (UPCB-02)

Data Acquisition Software (Lutron SW-E816)

CD-4319SD | ข้อมูลจำเพาะ

Advanced setting

Set clock time (Year, Month, Date, Hour, Minute, Second)

Set sampling time

Auto power OFF management

Set beep Sound ON/OFF

Decimal point of SD card setting

SD memory card Format

Set temperature unit

Set CD temperature compensation factor

Set probe CELL K Value


Data Output

RS232/USB PC computer interface

Connect the optional RS232 cable UPCB-02 will get the RS232 plug

Connect the optional USB cable USB-01 will get the USB plug.
