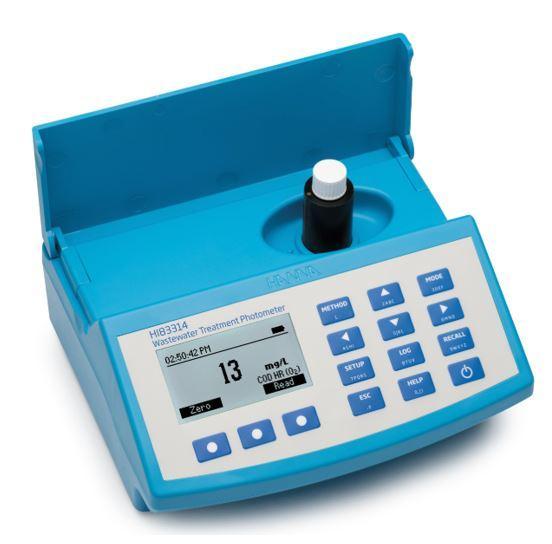

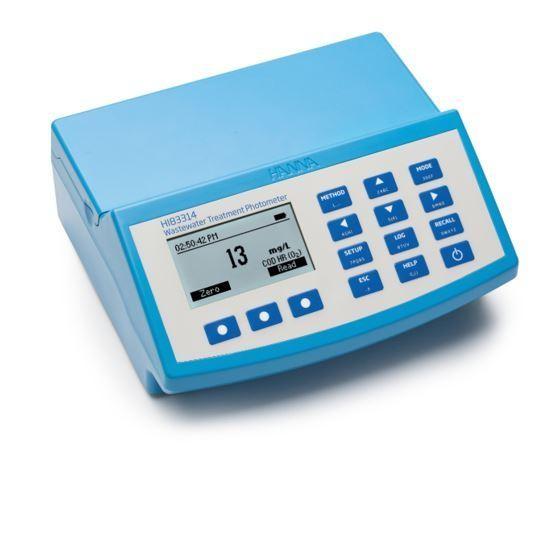

HI-83314 Wastewater Multiparameter (with COD) Benchtop Photometer and pH meter

HI-83314 ฟังก์ชั่นการวัด

COD

HI-83314 จุดเด่น

Advanced optical system
Unparalleled performance from a benchtop photometer
Digital pH electrode input
Save valuable bench space with one meter that works both as a photometer and as a laboratory pH meter
Wastewater Treatment Digestion Parameters
Measures common wastewater parameters including COD, Total Nitrogen and Total Phosphorus

HI-83314 ช่วงการวัด

Measurement Channels

5 x optical channels

1 x digital electrode channel (pH measurement)

Photometer

Range 0.000 to 4.000 Abs

Resolution 0.001 Abs

Accuracy ±0.003 Abs @ 1.000 Abs

Light source Light Emitting Diode

Bandpass filter bandwidth  8 nm

Bandpass filter wavelength accuracy ±1.0 nm

Light detector Silicon photocell

Cuvette types Round, 24.6 mm & 16 mm diameter

Number of methods 34

HI-83314 Power Supply

Battery life

> 500 photometer measurements or 50 hours of continuous pH measurement

Power supply

5 Vdc USB 2.0 power adapter / type micro-B connector 3.7 Vdc Li-polymer rechargeable battery, non-serviceable

HI-83314 ขนาดสินค้า

Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8")

Weight 1.0 kg (2.2 lbs.)

HI-83314 อุปกรณ์ที่มาในชุด

• Sample cuvette (4 pcs.)

• Sample cuvette cap (4 pcs.)

• Cloth for wiping cuvettes

• Scissors • USB cable

• 5 Vdc power adapter

• 16 mm vial adapter

• 16 mm diameter vial with cap (6 pcs.)

• Instrument quality certificate

• Instruction manual

HI-83314 ข้อมูลจำเพาะ

Input Channels 1 pH electrode input and 5 photometer wavelengths pH Electrode Digital pH electrode (not included)
Logging type Log on demand with user name and sample ID optional input
Logging Memory 1000 readings
Connectivity USB-A host for flash drive; micro-USB-B for power and computer connectivity
GLP Calibration data for connected pH electrode

Photometer/Colorimeter Light Source 5 LEDs with 420nm, 466nm, 525nm, 575nm, and 610nm narrow band interference filters
Photometer/Colorimeter Light Detector Silicon Photodetector
Bandpass filter Bandwidth 8nm
Bandpass filter wavelength accuracy ±1nm
Cuvette Type Round 24.6mm
Number of Methods 128 Max
