Mitcorp MITC-28D4W-F-1_5M-TU-M โพรบขนาด 2.8mm ยาว 1.5m ปรับทิศทางได้ 360 องศา สำหรับกล้องส่องท่อรุ่น X2000Mitcorp MITC-28D4W-F-1_5M-TU-M โพรบขนาด 2.8mm ยาว 1.5m ปรับทิศทางได้ 360 องศา สำหรับกล้องส่องท่อรุ่น X2000Mitcorp MITC-28D4W-F-1_5M-TU-M โพรบขนาด 2.8mm ยาว 1.5m ปรับทิศทางได้ 360 องศา สำหรับกล้องส่องท่อรุ่น X2000Mitcorp MITC-28D4W-F-1_5M-TU-M โพรบขนาด 2.8mm ยาว 1.5m ปรับทิศทางได้ 360 องศา สำหรับกล้องส่องท่อรุ่น X2000Mitcorp MITC-28D4W-F-1_5M-TU-M โพรบขนาด 2.8mm ยาว 1.5m ปรับทิศทางได้ 360 องศา สำหรับกล้องส่องท่อรุ่น X2000
Mitcorp

Mitcorp MITC-28D4W-F-1_5M-TU-M โพรบขนาด 2.8mm ยาว 1.5m ปรับทิศทางได้ 360 องศา สำหรับกล้องส่องท่อรุ่น X2000

รหัสสินค้า

MITC-28D4W-F-1-5M-TU-M

ภาพรวม

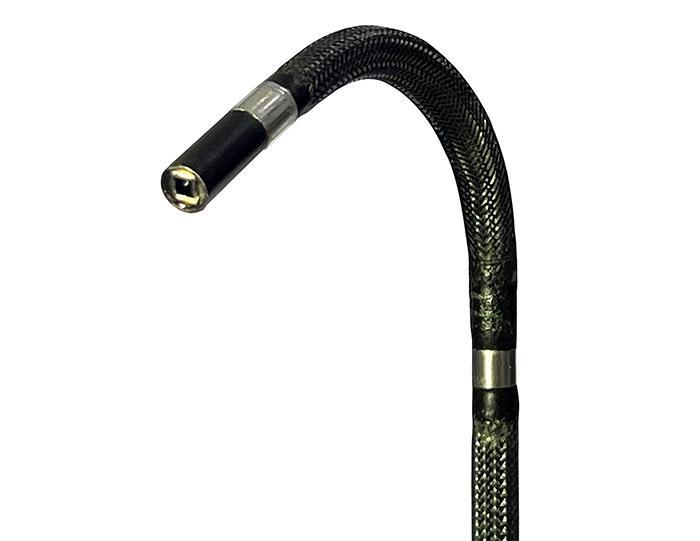

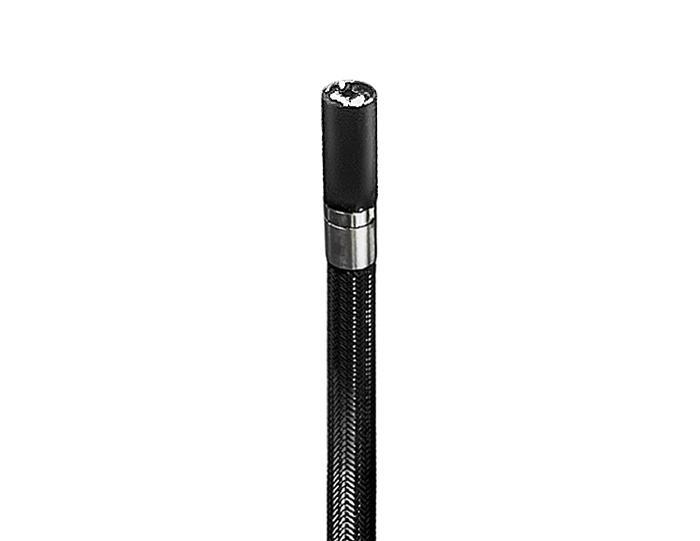

โพรบสำหรับกล้องส่องท่อปรับทิศทางได้ 360º Articulation Probe ทำจากวัสดุ Tungsten braid ควบคุมง่ายด้วยจอยสติ๊ก ขนาด ø2.8 mm ความยาวสาย 1.5 เมตร สำหรับเครื่อง Mitcorp X2000

เพิ่มคำถาม

MITC-28D4W-F-1_5M-TU-M | ขนาดและความความยาวของหัวโพรบ

  • Probe head diameter: 2.8 mm (O.D. Tolerance: ±0.1 mm)
  • Probe head length: 10.1 mm

MITC-28D4W-F-1_5M-TU-M | ทิศทางของโพรบ

Front

Articulation angle: 360° Articulation Probes full ways ≥110°

Mitcorp MITC-28D4W-F-1_5M-TU-M โพรบขนาด 2.8mm ยาว 1.5m ปรับทิศทางได้ 360 องศา สำหรับกล้องส่องท่อรุ่น X2000



MITC-28D4W-F-1_5M-TU-M | ความยาวโพรบ

1.5 m

MITC-28D4W-F-1_5M-TU-M | ความละเอียด

Still image resolution (.jpg): 800*800

Video resolution (.mov): 800*800


MITC-28D4W-F-1_5M-TU-M | อุณหภูมิที่สามารถใช้งานได้

In air: -10~-100°C ; In water: 10~30°C

MITC-28D4W-F-1_5M-TU-M | ความทนทานต่อเหลว

Operable when exposed to machine oil, light oil, or 5% saline solution

MITC-28D4W-F-1_5M-TU-M | ข้อมูลจำเพาะ

  • Probe head diameter: 2.8 mm (O.D. Tolerance: ±0.1 mm)
  • Probe head length: 10.1 mm
  • Direction of view: Front
  • Illumination: Front LED
  • Field of view (FOV): 110°
  • Depth of Field (DOF): 5 mm~100 mm
  • Still image resolution (.jpg): 1600*1600
  • Video resolution (.mov): 1600*1600
  • Articulation angle:  full ways ≥120° (The maximum articulation angle may degrade over time)
  • Probe length: 1.5 m
  • Operating temperature: In air: -10~-100°C ; In water: 10~30°C
  • Probe head material: Stainless Steel
  • Probe material: Tungsten braid

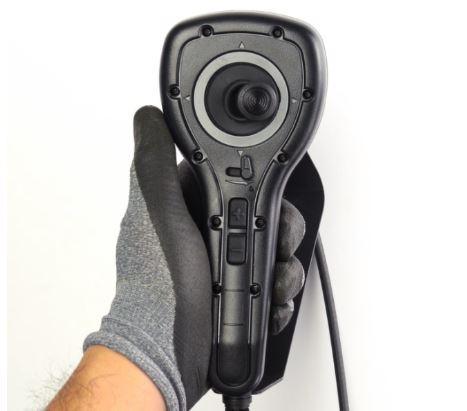

  • Joystick console dimensions: (WxDxH) 139.4x193x84.2 mm (w/o SR and insert tubes)
  • Joystick console buttons: Brightness+, Brightness-, snapshot/record
  • Lock and move: Joystick/Unlock switch on console
  • Dust and water proof: Joystick console: IP54 ; Insert Tube: under water 1 m for 30 minutes
  • Relative humidity: Max 95% non-condensing
  • Liquid resistance: Operable when exposed to machine oil, light oil or 5% saline solution
  • Storage temperature: -10°C~70°C
  • Rigid sleeve: OD: 8 mm/ID: 7 mm Protection: OD: 10 mm Extension joint ring: OD: 11.2 mm
  • Trolley case: Grip material: Rubber/Aluminum/Plastic; Tube material: Stainless steel, HDPE EVA with storage reel
