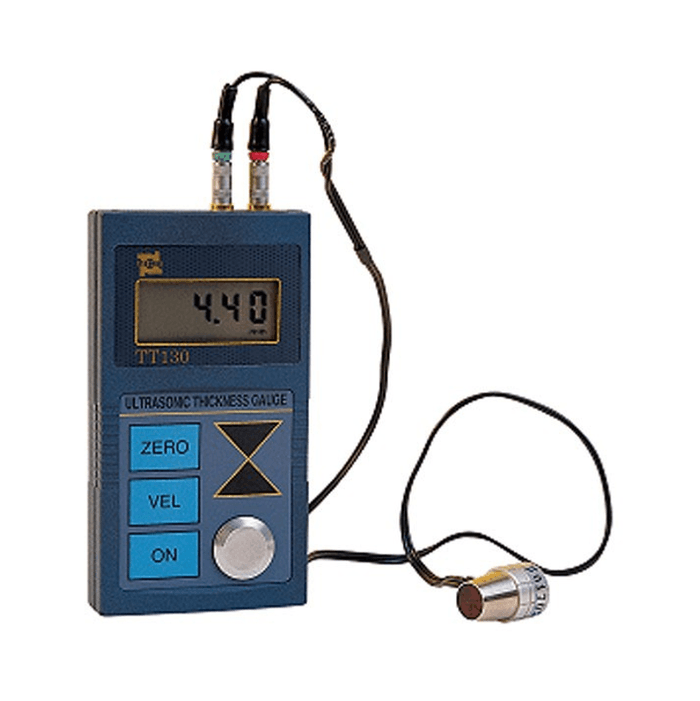

TIME TT130 เครื่องวัดความหนา Ultrasonic Thickness Gauge
NO Brand

TIME TT130 เครื่องวัดความหนา Ultrasonic Thickness Gauge

รหัสสินค้า

TT130

฿23,400.00(ไม่รวมภาษี)

ภาพรวม

เครื่องวัดความหนา Ultrasonic Thickness Gauge ช่วงการวัด 1.20 ถึง 225.0 mm. จอ LCD 4 หลัก ความละเอียดของจอแสดงผล 0.01 mm. ยี่ห้อ TIME

เพิ่มคำถาม

TT130 ฟังก์ชั่นการวัด

เครื่องวัดความหนาด้วยอัลตร้าโซนิค

TT130 จุดเด่น

✔ขนาดพหพาใช้งานง่าย

✔บันทึกค่าได้ 10 ข้อมูล

✔จอแสดงผล LCD ความละเอียดจอแสดงผล 0.01 mm.


TT130 ช่วงการวัด

Measuring range (steel): 1.20 mm - 225.0 mm with 5MHz transducer

Measuring range for steel pipes:  steel pipes Min. 3.0 mm thickness XØ 20 diameter

TT130 Power Supply

2 Pcs. AA batteries 1.5V

TT130 ขนาดสินค้า

Dimensions : 126mm x 68mm x 23mm
Weight : Approx. 250g including batteries

TT130 อุปกรณ์ที่มาในชุด

Main unit  x 1
5MHz transducer  x 1
5MH2/90 transducer  x 1
ZW5P high temperature  x 1
transducer for TT1 20  x 1
Integrated steel calibration  x 1
plate 4.0mm  x 1
Batteries AA 1.5V  x 2
Couplant  x 1
Warranty card  x 1
Instruction manual  x 1

TT130 ข้อมูลจำเพาะ

Measuring range : 0.75 -300.00mm (steel)
Measuring range for steel pipes : Ø20 x 3.0mm
Diameter of transducer : Ø10 (standard)6 (optiona)12(optiona)
Display resolution : 0.01mm
Calibration : 4.0mm steel base plate integrated
Tolerance : ±(1%H+0.1) mm (H means the thickness of tested piece)
Measuring units : mm/inch
Sound velocity range : 1000-9999m/s
Display : 4-Digital LCD
Surface temperature : -10°C  to +60°C
Battery indicator : Low battery voltage indication
Power supply : 2 Pcs. AA batteries 1.5V
Working time : 250 hours
