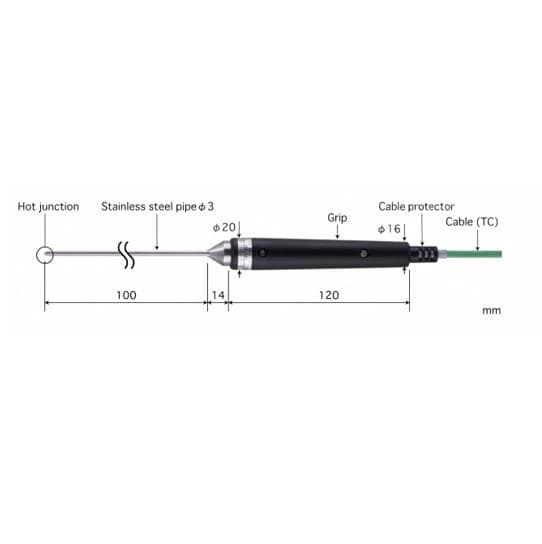

Anritsu BS-31E-010-TC1.5-ANP โพรบวัดอุณหภูมิ Cable 1.5 m General Internal Probe
BS-31E-010-TC1-5-ANP
โพรบวัดอุณหภูมิ General Internal Probe Made to Order, BS series ช่วงการวัด Max. 500°C Thermocouple Type E Connection แบบ ANP (Anritsu original connector)
สเปค
| ระยะเวลาจัดส่ง | อย่างเร็ว 30 วัน |
|---|
คำถามที่พบบ่อย
มีข้อสงสัยเกี่ยวกับสินค้า/บทความ สอบถามชุมชนหรือผู้เชี่ยวชาญของเรา
Specifications
Temp. range | -200°C to 500°C |
Tolerance | -200°C ≦ t < -167°C : ±7.0°C |
Response time | 3 s |
Durability | More than 1 year |
Coating type | Not coating |
Cable type and length | Type E : TC-E 1.5m |
|---|---|
Plug | Type E : ANP-E-M-L |
Repair |
|
Remarks
The operating temperature limit is determined by the allowable temperature limit of the sensor head contacts the measurement target. Note that the operating temperature limit is not the same as the allowable temperature limits of the grip, cable, and plug.
The response time given for our temperature measuring probes is the time required to detect 99% of the true value when measuring the temperature of boiling water or vapor.
* When used correctly, virtually no deterioration occurs in these products due to temperature measuring operations. Therefore, the durability is based on the ease with which impact results in damage. The durability is defined as 1 year or more in little or no degradation of quality.
* Please contact the distributor for price and delivery.
