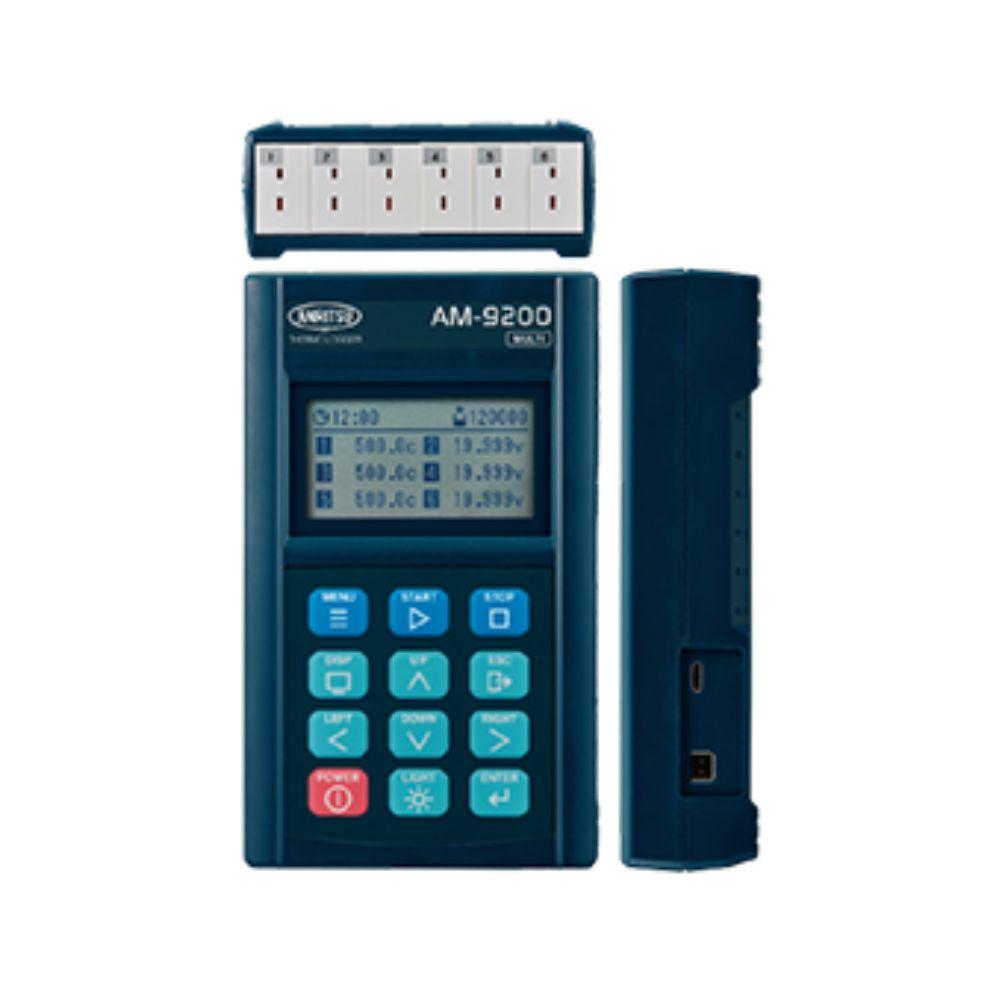

Anritsu AM-9200 เครื่องบันทึกอุณหภูมิ Thermologger | 6 Channel

Model

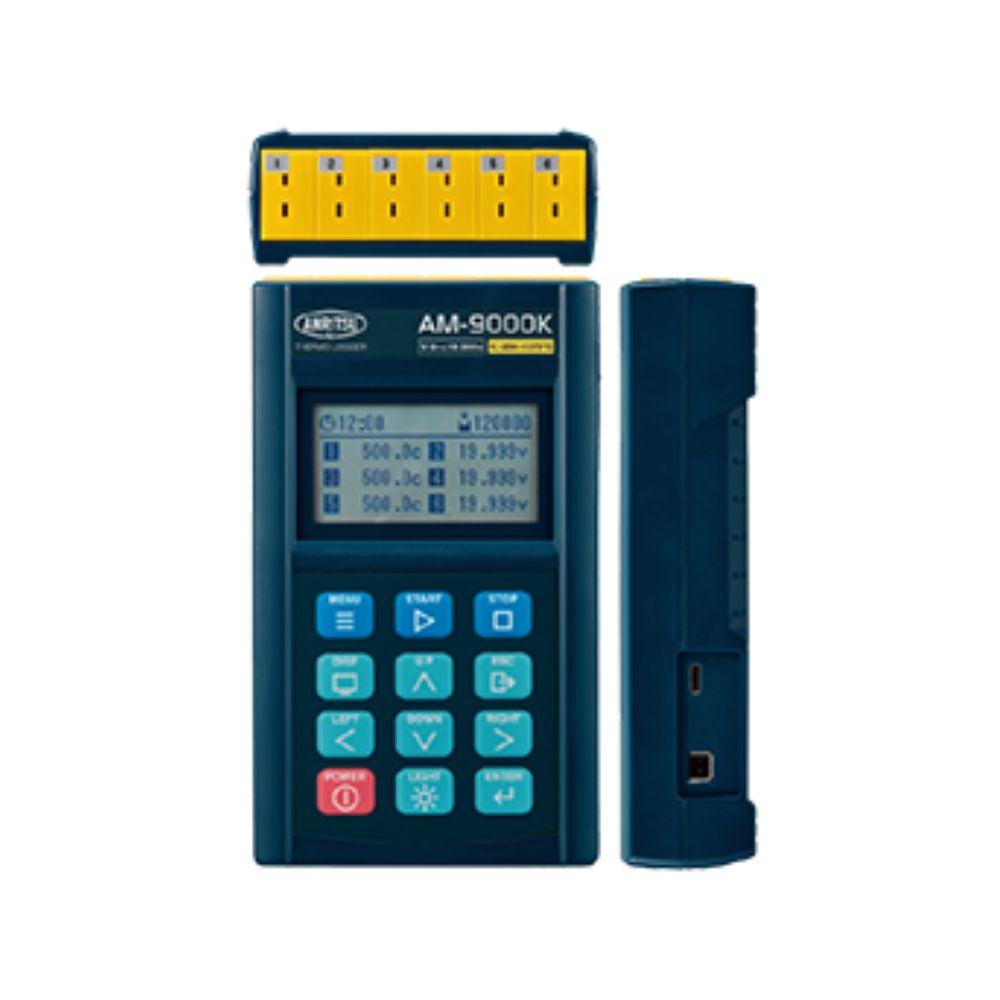

AM-9000E / AM-9000K

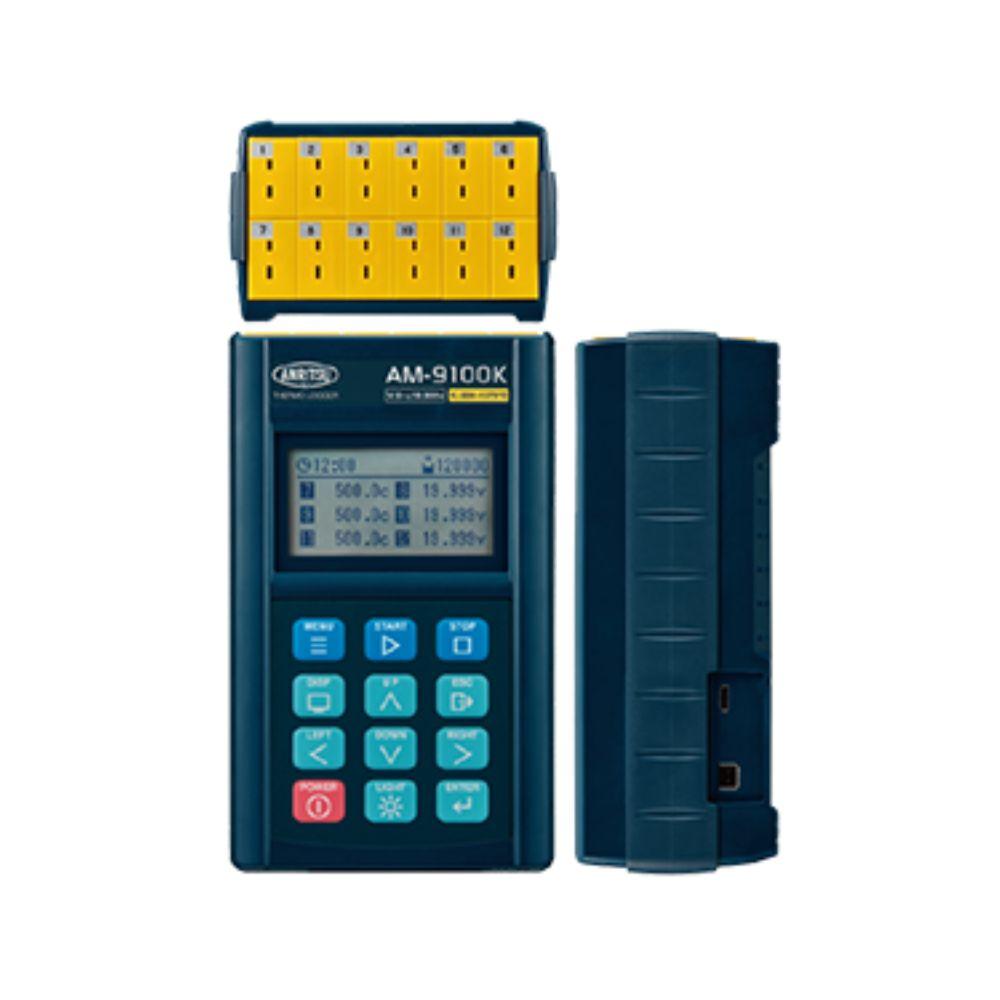

AM-9100E / AM-9100K

AM-9200

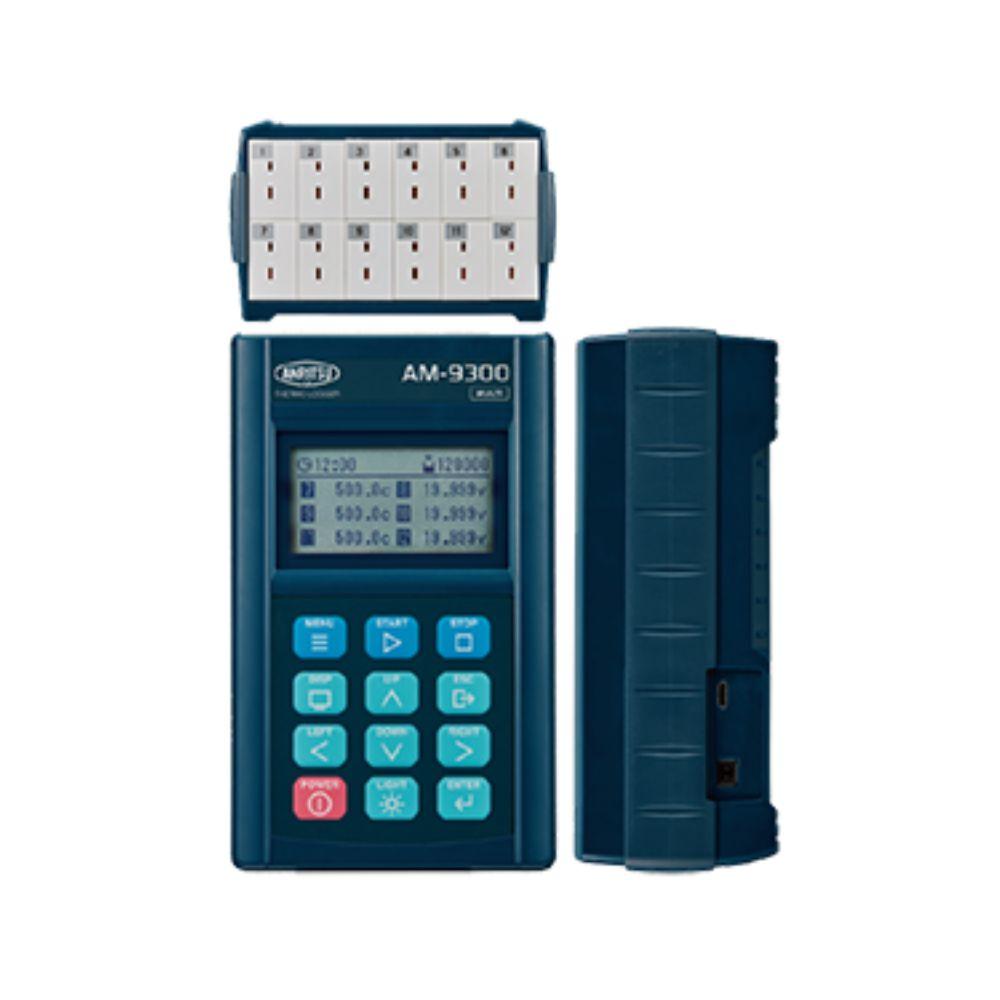

AM-9300

จำนวนช่อง (channels)

6 ช่อง (6ch)

12 ช่อง (12ch)

6 ช่อง (6ch)

12 ช่อง (12ch)

Input type

Fixed type thermocouple แบบเลือก E หรือ K

(J, T, R เป็น option)

Fixed type thermocouple แบบเลือก E หรือ K

(J, T, R เป็น option)

Multi‑input type: รองรับ thermocouple หลายชนิด (E, K, J, T, R) และ DC Voltage

Multi‑input type: รองรับ thermocouple หลายชนิด (E, K, J, T, R) และ DC Voltage

ช่วงอุณหภูมิ

(Thermocouple)

Type E: -200 to 800 °C

Type K: -200 to 1370 °C

Type E: -200 to 800 °C

Type K: -200 to 1370 °C

Type E: -200 to 800 °C

Type K: -200 to 1370 °C

Type J: -200 to 1100 °C

Type T: -200 to 400 °C

Type R: 0 to 1760 °C

Type E: -200 to 800 °C

Type K: -200 to 1370 °C

Type J: -200 to 1100 °C

Type T: -200 to 400 °C

Type R: 0 to 1760 °C

Memory capacity

120,000 data

120,000 data

120,000 data

120,000 data

Dimensions / Weight

92 × 155 × 36 mm / 380 g

96 × 160 × 60 mm / 480 g

92 x 155 x 36 mm / 410 g

96 x 160 x 60 mm / 540 g

Time interval

0.1 second to 99 minutes 59 seconds

0.2 second to 99 minutes 59 seconds

0.2 second to 99 minutes 59 seconds

0.2 second to 99 minutes 59 seconds

AM-9200

Number of inputs

6ch : ANP connector (Miniature Plug)

Input connector

ANP connector (both poles are coper)

Input type

Temperature:Multi-input (E, K, J, T, R)
DC Voltage:V

Measurement range

Temperature: TABLE Ⅰ  DC Voltage : ±20.000V

Resolution

Temperature: 0.1℃/1℃  DC Voltage : 0.001V

Measurement accuracy

Temperature: TABLE Ⅱ  DC Voltage : ±(0.05% of reading +0.003V)

Memory capacity

120,000 data

Interface

USB2.0 (micro-B)

Dimensions

92 × 155 × 36 mm

Protruded parts excluded

Weight(Including dry batteries)

approx.410g

Reference junction
compensation accuracy

±0.5℃(at 25℃±10℃)

Temperature coefficient

± (0.04 × Δt ℃) *1

Time interval

0.2 second to 99 minutes 59 seconds

Signal source resistance

500Ω or less (measurement interval 1 second or more)/100Ω or less (measurement interval less than 1 second)

Safe excitation voltage

Between input pins on same channels :±30VDC,Between input pins on adjacent channels : 150Vp-p

Linearlizer

Digital Linealizer method (Compliant with JIS C1602-2015)

Display

Graphic liquid crystal display, 128×64 dots

Environment operational
Environment storage

Operation : 0〜40℃、15〜80%RH (Non condensing)
Storage : -10〜50℃、10〜85%RH (Non condensing)

Battery life

TABLE Ⅲ

Power supply

4 AA Alkaline batteries(Supplied accessories) or AC-Adaptor(Optional accessories)

Supplied accessories

Manual, Test report, Softcase, Communications cable, 4 AA Alkaline batteries

Optional accessories

Special data analysis software, AC-Adaptor, Carrying case

Compatible standards

CE Marking, RoHS2
