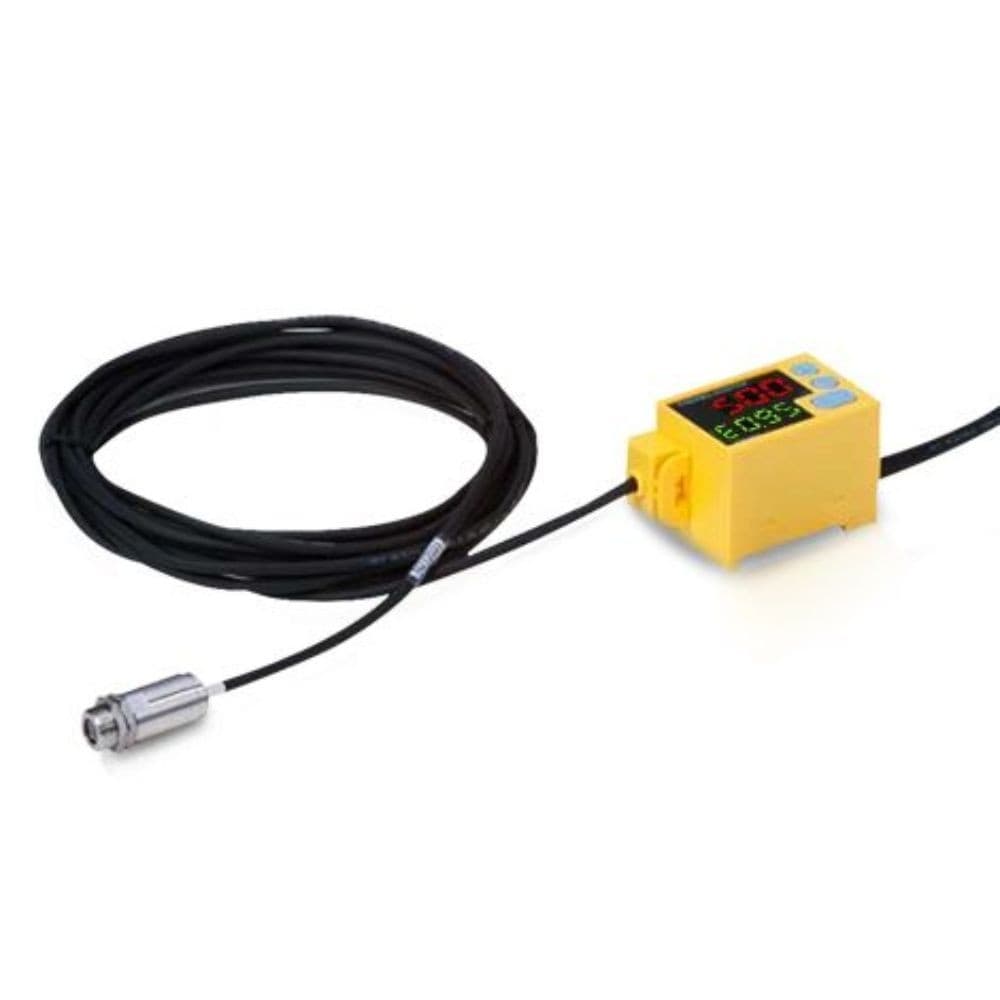

Optex CS-30TAC เซนเซอร์วัดอุณหภูมิแบบไม่สัมผัส (Non-Contact Infrared Thermometer)

Temperature Range

-40 to 500℃

Optical Resolution (D:S)

φ30/500mm (22:1)

Sensing Element / Spectral Response

Thermopile / 8 to 14μm

System Accuracy

-40 to 0℃: ±3℃
1 to 500℃: ±1% of reading or ±2℃ (whichever is greater)

Repeatability

±0.5% of reading or ±0.5℃ (whichever is greater)

Emissivity Adjustable

0.1 to 1.2

Temperature Resolution

1℃

Outputs

Analog output / 4-20mA (Output resolution 0.5°C) accuracy: ±0.5% or ±1% Updating time: 10msec Allowable load: 250Ω Impedance: 47Ω

Contact output / Photo MOS FET x2 (c contact x2), 300mA/30VDC or less

Interface

Digital output

Inputs

Synchronous trigger / Wave trigger / Bank switching function (4BANK)

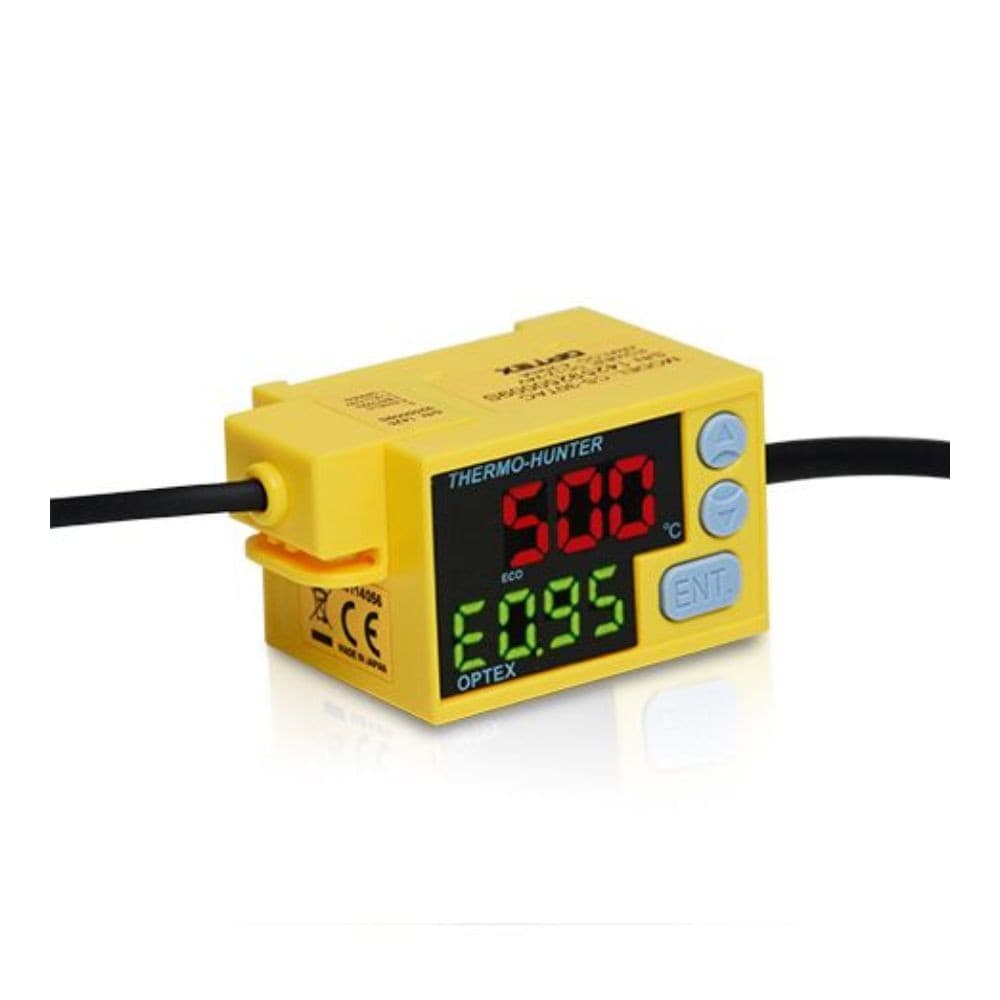

Display

7 segments LED

Power supply

12 to 24VDC ±10%

Current consumption

120mA (Normal) / Less than 80mA (ECO mode)

Ambient temperature

0 to 100°C (Sensing head)

Relative humidity

35 to 85%Rh (non-condensing)

Protection class

IP69K (Sensing head) / IP40 (Amp.)

Vibration resistance

10 to 55Hz, amplitude 1.5mm, 2hours each in any axis

Materials

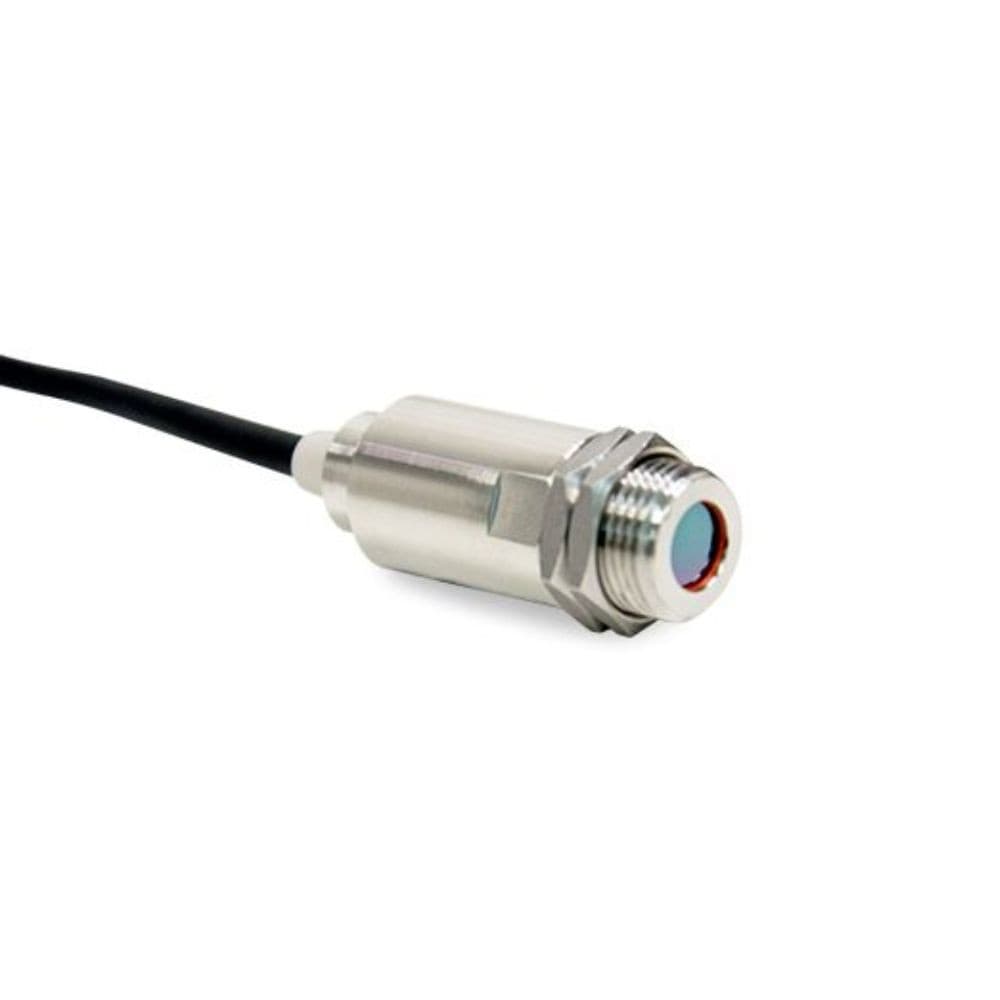

Stainless (Sensing head) / ABS (Amp.)

Cable length

3m

Installation

Pannel mounted / DIN rail attached

Dimension

M12(φ14)×34mm (Sensing head) / 35×52×38.5mm (Amp.)

Weight

100g (Sensing head), 200g (amp.
