TKRS 31 SKF วัดความเร็วรอบ Stroboscope TKRS 31 SKF วัดความเร็วรอบ Stroboscope TKRS 31 SKF วัดความเร็วรอบ Stroboscope
SKF

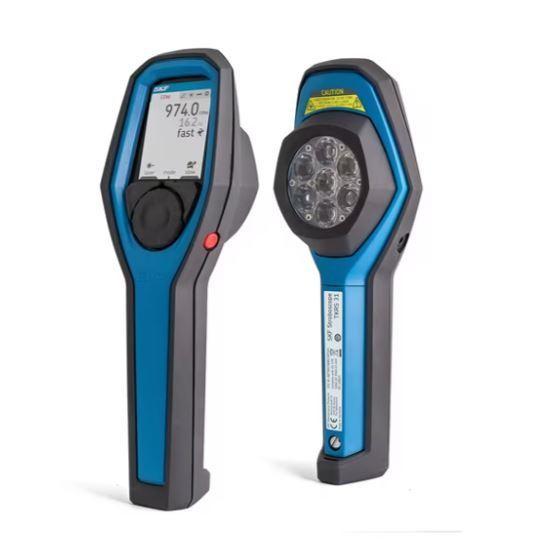

TKRS 31 SKF วัดความเร็วรอบ Stroboscope

รหัสสินค้า

TKRS-31

ภาพรวม

เครื่องตรวจสภาพเครื่องจักร ระหว่างเครื่องจักรกำลังทำงานอยู่ ความสว่าง: >5600 Lux ที่ 3° ระยะ 0.3 เมตร ช่วงการวัด: 30 ถึง 300,000 f/min

เพิ่มคำถาม

TKRS-31 ฟังก์ชั่นการวัด

วัดควาามเร็วรอบ

TKRS-31 จุดเด่น

  • Quick speed selection with rotary button
  • High luminescence with six ultra-bright LEDs
  • Intuitive operation for fast and easy inspection jobs
  • Ergonomic and robust design for portable usage in industrial environments
  • Bright LEDs with long lifetime and continuous operation
  • Tripod mount for stationary inspection
  • Multi-line backlit TFT
  • Built-in laser tachometer with flash synchronization
  • Pro-mode with additional features like slow motion phase shift
  • Trigger input and output with signal modification

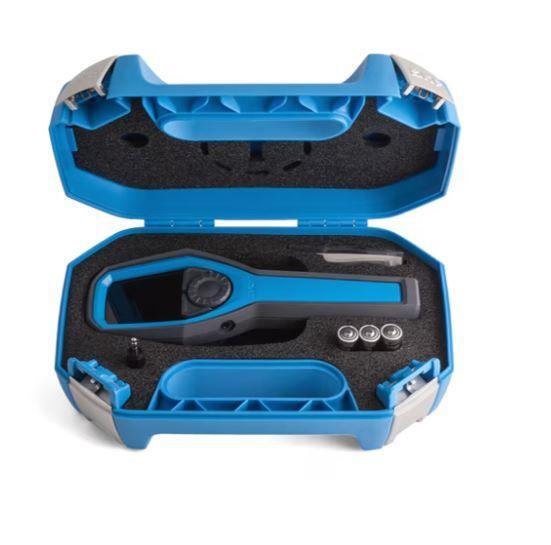

  • Supplied in a sturdy carrying case with 3 x AA batteries, trigger plug and reflective tapes

TKRS-31 ช่วงการวัด

Light power >5 600 Lux at 3° flash duration and 0,3 m (12 in.) distance
Brightness (flash duration)   adjustable, 0,2°–5,0°
Accuracy ±0,02% (±1 digit / ±0,025 µs) whichever is greater

External trigger range 30 to 300 000 f/min
External trigger connection

Plug: 3,5 mm TRS plug (included)
Input: 3 - 30 V / max. 5 mA (NPN)
Output: up to 30V / max 50 mA (NPN)

TKRS-31 Power Supply

3 x AA batteries (included)

TKRS-31 ขนาดสินค้า

Instrument dimensions   225 × 78 × 50 mm (8.9 x 3 x 2 in.)
Instrument weight (incl. batteries) 0,3 kg (0.65 lb)
Case dimensions 260 x 180 x 85 mm (10.2 x 7.1 x 3.3 in.)
Total weight (case + instrument) 0,79 kg (1.7 lb)

TKRS-31 อุปกรณ์ที่มาในชุด

ตัวเครื่อง

คู่มือ


TKRS-31 อุปกรณ์เสริม

TKRT-RTAPE Reflective tape

TKRS-31 ข้อมูลจำเพาะ

Laser speed measurement Yes
Phase shift Yes with slow motion function
Run time ca.

ca. 3:45 h @ 1° (100% display brightness)
ca. 8:15 h @ 0,2° (20% display brightness)

Display Multi-line backlight TFT

Power adapter and charger N/A

Signal modification Edge selection, Multiplier, Divider, Delay
