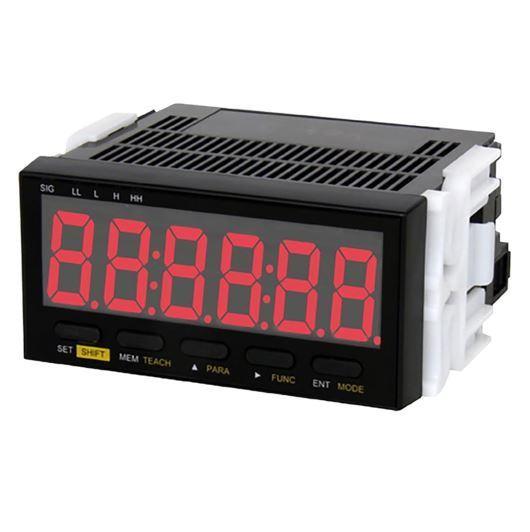

Designed for speed, rate, or time monitoring applications when combined with a compatible process speed sensor. Additionally, this panel meter tachometer has a power range of 85-264 VAC with an analog output terminal block connection
DT-501XA-FVT ฟังก์ชั่นการวัด
วัดความเร็วรอบ
DT-501XA-FVT ช่วงการวัด
Input Range
0.0067 Hz to 100 kHz in Tachometer, Flowmeter & Elapsed time modes; 10 ms to 3600 s in Time Span mode
Input Signal Characteristics
NPN open collector input: max. frequency 100 kHz / Contact input: max. frequency 20 Hz / Square wave input: max. frequency 30 kHz – Sine wave input (magnetic pickup): max. frequency 10 kHz
Display
Red 7 segment 6 digit LED, numeral height of 0.87” (22 mm); negative (-) sign available
Display Range
Tachometer/Flowmeter: 0 – 999999; with 10^-1 to 10^-5 decimal point position selection. Elapsed Time: 0:00:00 – 9:59:59 (hr., min., sec., base 60) ; or 0:00 to 999:99 (second: 1/100 sec, base 10 display). Process Time Span: 0:00:00 – 0:59:59 (hr., min., sec., base 60) or 0.00 – 999.99 sec. (second: 1/100 sec, base 10 display) with zero suppression function
DT-501XA-FVT Power Supply
Power Requirement 85 - 264 VAC (50/60 Hz) Optional (9 - 35 VDC also available)
DT-501XA-FVT ขนาดสินค้า
Dimensions 3.8 x 1.9 x 3.6” (96 x 48 x 92 mm)
Product Weight 0.44 lb (200 g)
Package Weight 0.73 lb (330 g)
DT-501XA-FVT อุปกรณ์ที่มาในชุด
Waterproofing O’ring, engineering unit decal sheet
DT-501XA-FVT อุปกรณ์เสริม
Rotary Encoder
Optical Contrast Sensor
Magnetic Sensor
DT-501XA-FVT ข้อมูลจำเพาะ
Display Update Time 0.2, 0.5, 1, 2, 5, 10, 15, 30, 60 sec. selectabel in Tachometer, Flowmeter & Elapsed Time modes
Auto Zero Time Tachometer & Flowmeter Modes: 0.1 to 150 Seconds; Elapsed Time & Time Span Modes: 0.1 to 3600 Seconds
Optional Outputs NPN; contact relay; analog output: (selectable) 0-1, 1-5, 0-10 VDC & 4-20 mA
Sensor Power Supply 12 VDC (100 mA)
Temperature Limits 32 - 113°F (0 - 45°C)
Humidity Limits 35 to 85% RH
Protection Class Front Panel: NEMA 4X (IP66) ; Rear Terminal Block NEMA 1 (IP20)
