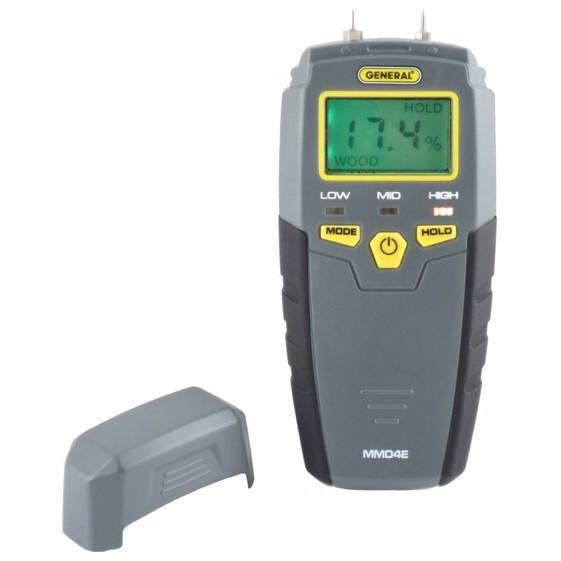

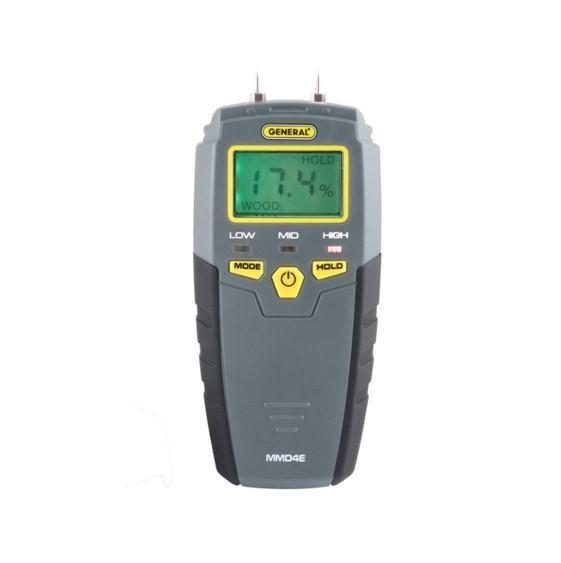

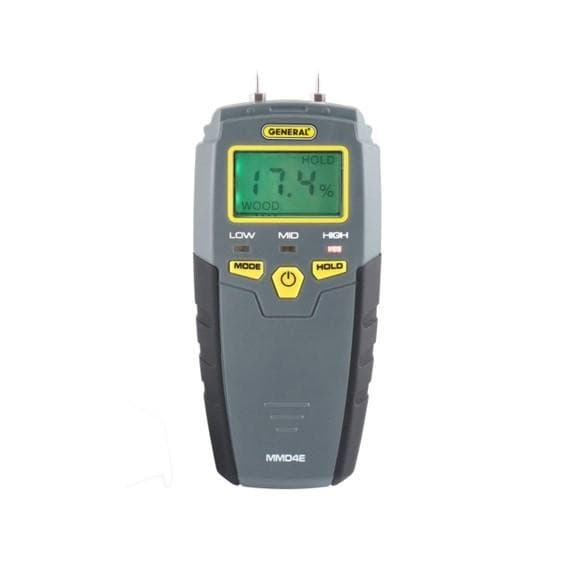

MMD4E ฟังก์ชั่นการวัด
เครื่องวัดความชื้นวัสดุ
MMD4E จุดเด่น
• Includes separate moisture-resistance curves for wood and building materials
• 99.9 count green backlit LCD w/0.3 in. high digits
• Low, medium and high moisture level lights
• Audible high moisture alert
• Reading HOLD button
• Replaceable stainless steel test pins
• Pin cap doubles as calibration checker
• Low battery indication
• 3-minute Auto Power Off
MMD4E ช่วงการวัด
Measurement Range 5 to 50% for wood; 1.5 to 33%
for building materials
Measuring Accuracy ±2%
Moisture Range Indications See tables on page 5
MMD4E Power Supply
9V battery
MMD4E ขนาดสินค้า
5.7 x 2.4 x 1.1 in. (145 x 62 x 27mm)
3 oz. (86g) / without battery
MMD4E อุปกรณ์ที่มาในชุด
The MMD4E comes in a blister pack with a factory-installed
“9V” battery. Two replacement 9mm (0.35 in.) long test pins—General Part No. PIN3DE
MMD4E ข้อมูลจำเพาะ
Operating Temperature
32° to 122°F (0° to 50°C)
@ <90%RH
Current Consumption <25mA
Auto Power Off Trigger 3 minutes of inactivity
Backlight Duration 15 seconds
Low Battery Icon Trigger <7.3V
