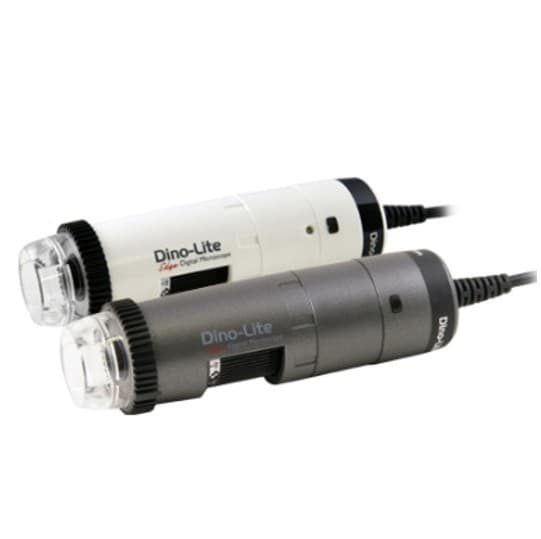

Dino lite AF-4115ZTW Digital Microscope 1.3 Megapixel (1280 x 1024)

Model

AF4115ZTW

Series

Dino-Lite Edge

Interface

USB 2.0

Full Resolution

1.3 Megapixel (1280 x 1024)

Magnification

10x ~ 50x

Frame Rate

15fps at 1.3MP, MJPEG
30fps at VGA, MJPEG

System Requirements

CPU: 2.5 GHz dual-core Intel Core i5 equivalent or greater
RAM: 4 GB or more
HD: 150 MB space available or more

Operating System

Windows XP/7/8/10/11
macOS 10.14 or later

Saving Format

Image:
DinoCapture 2.0: BMP, PNG, TIF, JPG
DinoCapture 3.0: BMP, PNG, TIF, JPG
DinoXcope: PNG, JPEG

Video:
DinoCapture 2.0: WMV, FLV, SWF
DinoCapture 3.0: MP4
DinoXcope: MOV

Measurement

Yes

Calibration

Yes

Microtouch

Yes

Scroll Lock

Yes

Illumination

White Light, 8 LEDs

Included Front Caps

N3C-C (Close Cap)
N3C-D (Diffuser Cap)
N3C-D2 (Opal Diffuser Cap)
N3C-E (Extended Open Cap)
N3C-L (Long Cap)
N3C-O (Open Cap)
N3C-S (Sidelight Cap)

Unit Dimension

114 mm (H) x 34 mm (D)

Unit Weight

111g

Color

Grey: AF4115ZTW / White: AF4115ZTW(W)
