ISO 9060:2018 classification : spectrally flat Class B pyranometer ISO 9060:1990 classification : first class pyranometer Spectral range: 285 to 3000 x 10⁻⁹ m Calibration traceability: WRR ยี่ห้อ Hukseflux, Netherlands
SR15-A1-05 | ฟังก์ชั่นการวัด

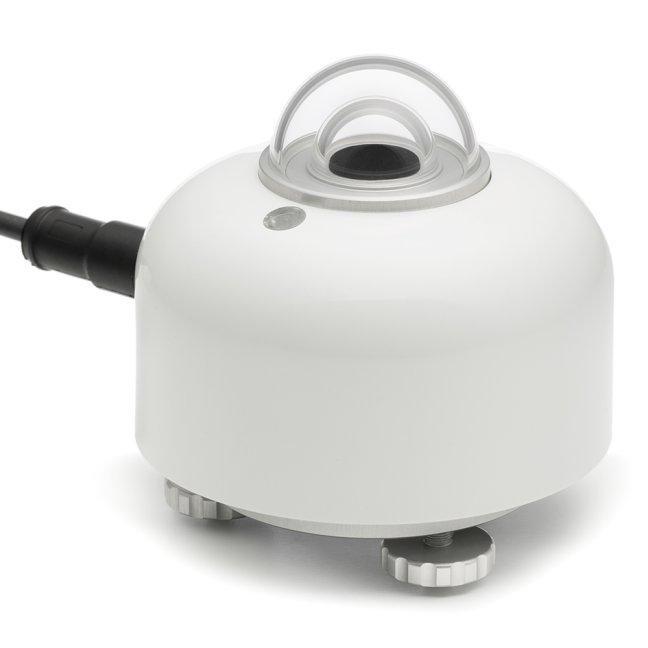

เซนเซอร์วัดความเข้มแสงอาทิตย์
SR15-A1-05 | จุดเด่น
ISO 9060:2018 classification : spectrally flat Class B pyranometer
ISO 9060:1990 classification : first class pyranometer
SR15-A1-05 | ช่วงการวัด
- Spectral range: 285 to 3000 x 10⁻⁹ m
SR15-A1-05 | Power Supply
Analogue output: millivolt
Sensitivity: 10 x 10-6 V/(W/m2)
SR15-A1-05 | ขนาดสินค้า
standard cable length: 5 m
SR15-A1-05 | อุปกรณ์ที่มาในชุด
Main unit x 1
SR15-A1-05 | อุปกรณ์เสริม
adapted sensitivity range
spring-loaded levelling; practical for easy mounting, levelling and instrument exchange on flat surfaces (LM01)
tube levelling mount with set of bolts (TLM01)
with PMF01 pyranometer mounting fixture
longer cable: 10 and 20 metres length
SR15-A1-05 | ข้อมูลจำเพาะ
ISO 9060:2018 classification : spectrally flat Class B pyranometer
ISO 9060:1990 classification : first class pyranometer
Application: National Meteorological Networks, PV monitoring commercial and utility scalePV monitoring small sizedmeteorology / climatologyother, other
Heater: yes
Output: mV
Calibration uncertainty: < 1.8 % (k = 2)
Calibration traceability: to WRR
Spectral range: 285 to 3000 x 10⁻⁹ m
Sensitivity (nominal): 10 x 10⁻⁶ V/(W/m²)
Analogue output: millivolt
Response time: < 10 s
Zero offset a: 5 W/m² unventilated
Rated operating temperature range: -40 to +80 °C
Temperature response: < ± 2 % (-10 to +40 °C)
Heater: 1.5 W at 12 VDC
Standard cable length: 5 m
