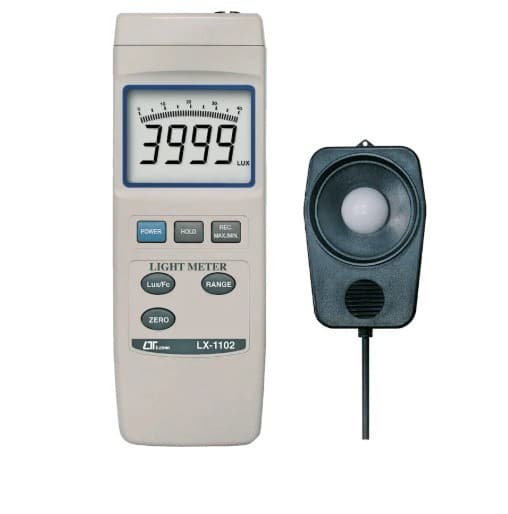

Lutron LX-1102 เครื่องวัดแสงลักซ์
LX-1102
เครื่องวัดความเข้มของแสงดิจิทัล (Digital Lux Meter) สำหรับวัดระดับความสว่างในพื้นที่ต่างๆ เพื่อตรวจสอบว่าปริมาณแสงสว่างเพียงพอและเป็นไปตามมาตรฐานการทำงาน
สเปค
| ระยะเวลาจัดส่ง | จัดส่งภายใน 30 วัน |
|---|
คำถามที่พบบ่อย
มีข้อสงสัยเกี่ยวกับสินค้า/บทความ สอบถามชุมชนหรือผู้เชี่ยวชาญของเรา
FEATURES
5 ranges : 40.00/400.0/4,000/40,000/400,000 Lux, wide measuring range.
High resolution : 0.01 Lux to 100 Lux, 0.01 Ft-cd to 10 Ft-cd
Sensor used the exclusive photo diode & color correction filter, spectrum meet C.I.E. photopic.
Sensor cosine correction factor meet standard.
Separate Light Sensor allows user to measure the light at an optimum position.
Lux & Foot-candle unit selection.
Large LCD display with bargraph and indicator.
Water resistance front panel
Use the rubber key for the function select.
LSI circuit provides high reliability and durability.
Zero adjusting button.
Data hold.
Memory function to display the max. & min. display value with Recall.
Auto power auto off or manual power off.
Compact size and excellent operation.
Built-in low battery indicator.
RS-232 computer serial data output.
GENERAL SPECIFICATIONS
Specification / Item | Details | Specification / Item | Details |
Display | Large LCD dispaly. LCD size 52 x 38 mm, 4 digits. with bargraph indicator. | Operating Temperature | 0 to 50 ℃ ( 32 to 122 ℉ ). |
Measurement & ranges | 5 ranges : 40.00/400.0 Lux, 4,000/40,000/400,000 Lux, | Operating Humidity | Max. 80% RH. |
Unit | Lux, Foot-candle ( Ft-cd ). | Power Supply | DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent. |
Sensor | The exclusive photo diode & color correction filter, spectrum meet C.I.E. Cosine correction factor meet standard. | Power Consumption | Approx. DC 8 mA. |
Zero Adjustment | External adjustment by pushing button. ( 40.00 Lux range only ) | Weight | 220 g/0.48 LB. |
Peak Hold | To hold the peak display. | Dimension | Main instrument :200 x 68 x 30 mm ( 7.9 x 2.7 x 1.2 inch ). Sensor probe :82 x 55 x 7 mm ( 3.2 x 2.2 x 0.3 inch ). |
Data Hold | To freeze the display value. | ||
Memory | Save the max. & min. value with Recall. | ||
Over and Under range Indication | Over range Indicator : " - - - - " Under range Indicator : " _ _ _ _ " | Accessories Included | Instruction Manual.......1 PC. Light Sensor with protection cover........................1 PC. |
Power Off | Auto or manaual power off. | Optional Accessories | RS232 cable, UPCB-02 USB cable, USB-01 Application Software, SW-U801-WIN Hard carryingt case, CA-06 Soft carryingt case, CA-05A |
Data Output | RS-232 serial data output. |
ELECTRICAL SPECIFICATIONS ( 2 3± 5 ℃ )
Measurement | Range | In-range Display | Resolution | Accuracy |
Lux | 40.00 Lux | 0 - 40.00 Lux | 0.01 Lux | ± ( 3% rdg + 0.5 % F.S. . ) |
400.0 Lux | 36.0 - 400.0 Lux | 0.1 Lux | ||
4,000 Lux | 360 - 4,000 Lux | 1 Lux | ||
40,000 Lux | 3,600 - 40,000 Lux | 10 Lux | ||
400,000 Lux | 10,000 - 400,000 Lux | 100 Lux | < 100,000 Lux : | |
Foot-candle | 4.000 Fc | 0 - 3.720 Fc | 0.001 Fc | ± ( 3% rdg + 0.5 % F.S. . ) |
40.00 Fc | 3.35 - 37.20 Fc | 0.01 Fc | ||
400.0 Fc | 33.5 - 372.0 Fc | 0.1 Fc | ||
4,000 Fc | 335 - 3,720 Fc | 1 Fc | ||
40,000 Fc | 930 - 37,200 Fc | 10 Fc | < 9,300 Fc : | |
Note : Accuracy tested by a standard parallel light tungsten lamp of 2856 K degree temperature. | ||||
* Appearance and specifications listed in this brochure are subject to change without notice.
