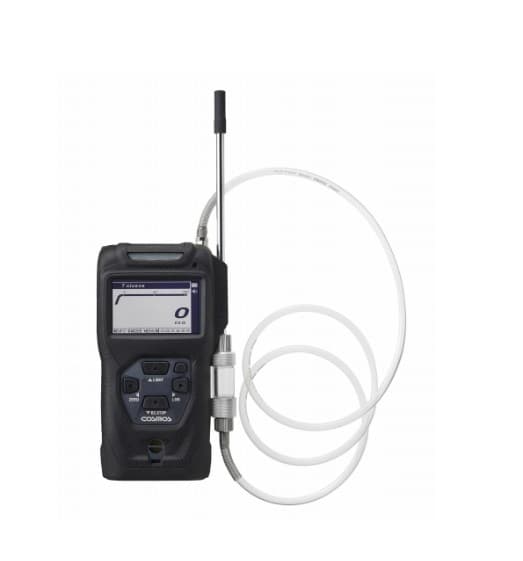

Cosmos XP-3320II-V เครื่องตรวจจับแก๊สแบบพกพา

Model

XP-3320II-V

Target gas

VOC calibration gas: Toluene

Gas sampling method

automatic suction type

Detection principle

Hot wire semiconductor type

Measurement range

0–1000 ppm

Indication accuracy *1

100ppm or less: ±10ppm
101 to 1000ppm: ±100ppm

Response time *2

T90: within 30 seconds

Gas alarm system *3

Buzzer sounds, alarm lamp (red) flashes, and LCD display...

Error notification method

Buzzer sounds, warning light (yellow) flashes, and LCD display...

Power supply used

4 x AA alkaline batteries
or 4 x AA nickel-metal hydride rechargeable batteries

Continuous use time*4

Approximately 19 hours

Operating temperature and humidity range

-20 to +50°C, 90% RH or less
(provided there is no condensation or sudden changes in temperature and humidity)

Explosion-proof structure

Alkaline battery specifications: Ex ia da IIC T4 Ga
Nickel-metal hydride rechargeable battery specifications: Ex ia da IIC T3 Ga

Protection class

IP67 equivalent

Wireless communication

Bluetooth 5.0* 5

External dimensions

W91 x H164 x D44mm (excluding protrusions)

mass

Approximately 460g (including batteries)

Key Features

Self-diagnosis (sensor malfunction), zero adjustment, battery level indicator, illumination lamp function, peak hold function, other gas reading function, LCD backlight, buzzer silence during gas alarm, time, alarm test, buzzer volume setting, buzzer mute, data logging

Standard accessories

Shoulder strap, 1m gas inlet tube for solvents, filter element, LCD protective film, alkaline batteries (or nickel-metal hydride rechargeable batteries)

option

Leather case, LCD screen protector, alligator clip, 1m gas inlet tube for solvents, 1m inlet tube, activated carbon filter container, activated carbon, log data collection software, charger, AC adapter (for charger)
