SHIMPO FGP-2-SEG เครื่องวัดแรงดึง/แรงผลักแบบดิจิตอล 2kg (Overseas model)-photo0
SHIMPO FGP-2-SEG เครื่องวัดแรงดึง/แรงผลักแบบดิจิตอล 2kg (Overseas model)-small-photo0
SHIMPO

SHIMPO FGP-2-SEG เครื่องวัดแรงดึง/แรงผลักแบบดิจิตอล 2kg (Overseas model)

รหัสสินค้า

FGP-2-SEG

฿22,100.00(ไม่รวมภาษี)

ภาพรวม

SHIMPO FGP-2-SEG (Overseas model) เครื่องวัดแรงดึง/แรงผลักแบบดิจิตอล ช่วงการวัดสูงสุด 2kg ยี่ห้อ SHIMPO, Japan

เพิ่มคำถาม

FGP-2-SEG ฟังก์ชั่นการวัด

เครื่องวัดแรงดึง/แรงผลักแบบดิจิตอล

FGP-2-SEG จุดเด่น

✔ อินเทอร์เฟซ USB ช่วยให้สามารถนำเข้าข้อมูลการใช้งานไปยังพีซีได้ง่าย
✔ มีโหมดหน่วยความจำ 3 โหมด ได้แก่ โหมดต่อเนื่อง โหมดเดี่ยว และโหมดมาตรฐาน
✔ สามารถจัดเก็บชุดข้อมูลได้สูงสุด 1,000 ชุด (โหมดหน่วยความจำต่อเนื่อง)

FGP-2-SEG ช่วงการวัด

Measurement Rang: 2 kg

FGP-2-SEG Power Supply

  • AC adapter (DC9V/200mA) or built-in NiMH battery (rechargeable)
  • Measurement available during charging
  • Battery operating time: Approx. 8 hours from full charge
  • Charging time: Max. 16 hours (Automatically ends when fully charged)

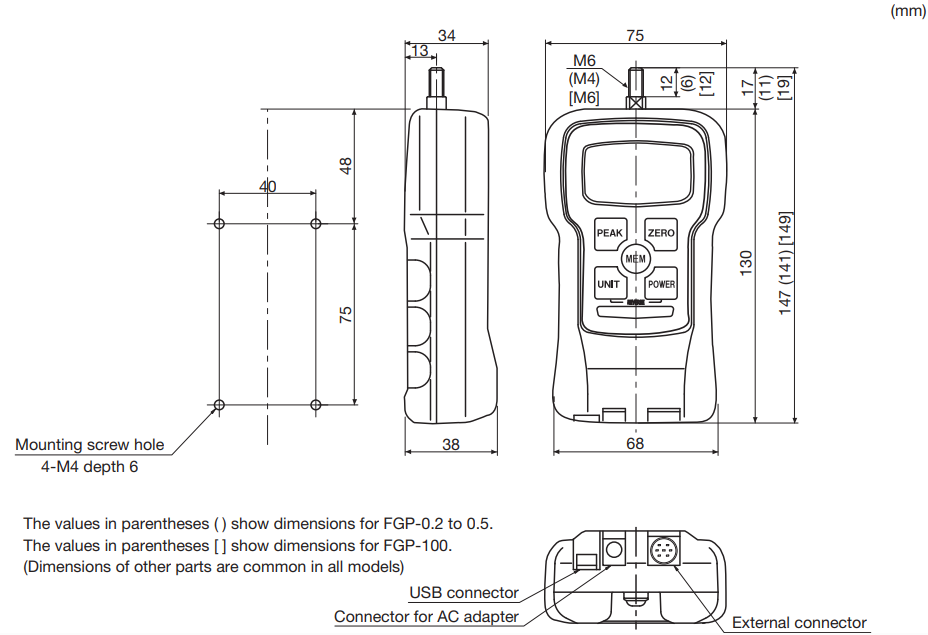

FGP-2-SEG ขนาดสินค้า

  1. Width 75 x Thickness 38 x Length 147mm
  2. Apporx. 450kg.


SHIMPO FGP-2-SEG เครื่องวัดแรงดึง/แรงผลักแบบดิจิตอล 2kg (Overseas model)

FGP-2-SEG อุปกรณ์ที่มาในชุด

  1. Measurement adapters (6 types)
  2. **M4 measurement adapters are supplied for models of 0.5 or less,and M6 measurement adapters for those of 1 or more.
  3. Hanger
  4. AC adapter
  5. Carrying case
  6. USB cable

FGP-2-SEG ข้อมูลจำเพาะ

  1. Unit :
    Unit change between N and kg (g) (reverse display available)
  2. Measurement method: Normal measurement, plus peak measurement, minus peak measurement
  3. Display cycle: 1 time/sec, 2 times/sec, 3 times/sec, 5 times/sec, 10 times/sec, 20 times/sec
  4. Accuracy: ±0.2%R.C. and ±1/2digit (at 23ºC)
  5. Display:
    Number display/Unit display: Signed 4-digit display (Font height: 12mm) Signs can be optionally set for the load direction, reverse display available/3-digit LCD display (Font height: 7mm)
  6. Various display: (1)"LO BAT" (low battery voltage) (2)"BAT (during charging) (3)"OVR (overload) (4)"PEAK" (peak hold mode)
    Overload capacity:
    200%R.C.
    Tracking function:
    Provided (can be switched ON/OFF)
  7. Output signal  USB:
    Provided (PCs can communicate with the unit using the specialized communication software. A connection cable is a standard accessory.) Continuous transmission max. 100 times/sec
  8. Other outputs:
    RS-232C Analog Overioad Comparator (only for FGP-E) Other cables including analog cables are optional.
  9. Memory function : Continuous memory 1000 sets/Single memory 100 sets/Standard memory 50 sets (can be switched between the three memory modes) "Equipped with statistics function (max., min, peak, average, standard deviation)
