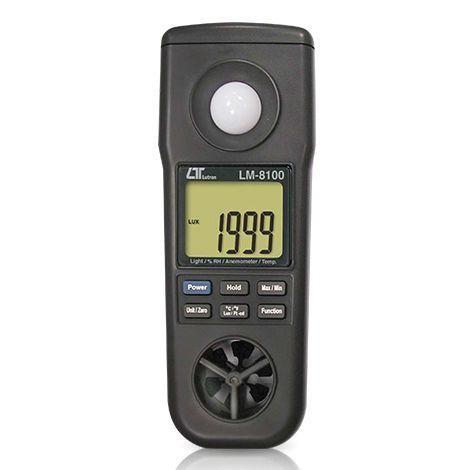

Lutron LM-8100 เครื่องวัดความเร็วลม 4 in 1

LM-8100 ฟังก์ชั่นการวัด

เครื่องวัดความเร็วลม 4 in 1

LM-8100 จุดเด่น

Multi-Function Capability: Combines an anemometer, hygrometer, light meter, and thermometer into a single instrument, offering versatility for different measurement needs.

High Accuracy and Resolution: Features high accuracy and resolution for all measurement functions, ensuring precise and repeatable measurements.

User-Friendly Design: Equipped with a large LCD display for easy reading, auto range for light measurement, and user-friendly controls including data hold, max/min readings recall, and auto power off to save battery life.

Advanced Connectivity: Includes RS232/USB computer interface for data output, enhancing data management and integration with other systems.

Compact and Durable: Constructed with a lightweight and small-size case design, making it easy to handle with one hand and durable for long-lasting use.

LM-8100 ช่วงการวัด

Air Velocity:

Range:
m/s: 0.4 to 30.0 m/s
km/h: 1.4 to 108.0 km/h
mile/h: 0.9 to 67.0 mile/h
knots: 0.8 to 58.3 knots
ft/min: 80 to 5910 ft/min
Resolution:
m/s: 0.1 m/s
km/h: 0.1 km/h
mile/h: 0.1 mile/h
knots: 0.1 knots
ft/min: 1 ft/min
Accuracy:
Up to 20 m/s: ± 3% F.S.
Above 20 m/s: ± 4% F.S.

Temperature (Type K):

Range:
℃: -100 to 1300℃
℉: -148 to 2372℉
Resolution: 0.1℃
Accuracy:
℃: ± (1% rdg + 1℃)
℉: ± (1% rdg + 2℉)

Temperature (Semiconductor):

Range:
℃: 0 to 50℃
℉: 32 to 122℉
Resolution: 0.1℃
Accuracy:
℃: ±1.2℃
℉: ±2.5℉

Humidity:

Range: 10 to 95% RH
Resolution: 0.1% RH
Accuracy:
< 70% RH: ±4% RH
≥ 70% RH: ± (4% rdg + 1.2% RH)

Light:

Range:
LUX: 0 to 20,000 LUX
Ft-cd: 0 to 1,860 Ft-cd
Resolution:
LUX: 1 LUX (up to 2,200 LUX), 10 LUX (1,800 to 20,000 LUX)
Ft-cd: 0.1 Ft-cd (up to 204.0 Ft-cd), 1 Ft-cd (170 to 1,860 Ft-cd)
Accuracy: ±5% rdg ± 8 dgt

LM-8100 Power Supply

DC 1.5 V battery ( UM4, AAA ) x 6 PCs,
DC 9V adapter input. @ AC/DC power adapter is optional

LM-8100 ขนาดสินค้า

280 g/0.62 LB ( battery included ).

HWD 177 x 70 x 32 mm ( 7.0x 2.8 x 1.3 inch).

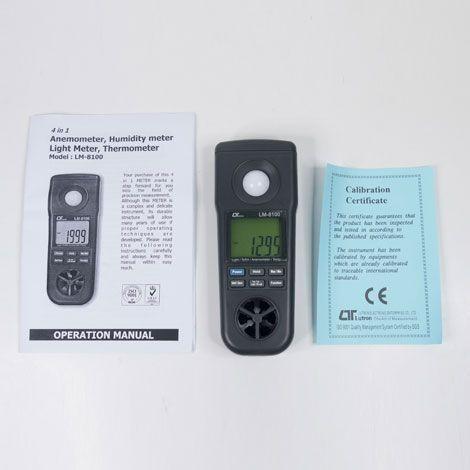

LM-8100 อุปกรณ์ที่มาในชุด

Unit

Instruction Manual: 1 PC

LM-8100 อุปกรณ์เสริม

Type K Temperature probe, Carrying case
USB cable/USB-01, RS232 cable/UPCB-02
Data Acquisition software, SW-U801-WIN
AC/DC power adapte

LM-8100 ข้อมูลจำเพาะ

Display LCD display, LCD soze : 41.5 x 31.5 mm.
Measurement Anemometer, Humidity, Temperature. Light
Operating Humidity Max. 80% RH.
Operating Temperature 0 to 50° C (32 to 122° F)
Over Input Display Indication of "- - - - "

Power Consumption Anemoter : Approx. DC 11 mA. Other functions : Approx. DC 7.5 mA.

Microprocessor Circuit  Ensures high accuracy and reliability with special functions.

Data Hold Function  Freezes the display reading for convenient recording.

Max/Min Readings Recall  Stores maximum and minimum readings for easy reference.

Auto Power Off  Conserves battery life by shutting off the meter automatically.

Multi-Channel Display  Shows relative humidity and temperature, or air velocity and temperature measured values simultaneously.

Zero Button Design  Simplifies light meter calibration.
