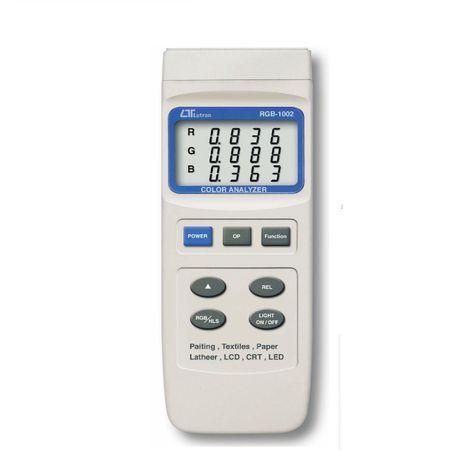

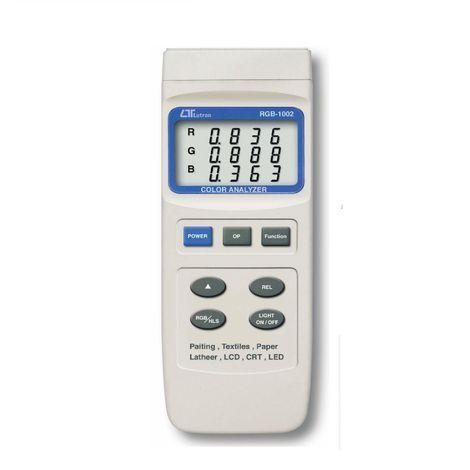

Lutron RGB-1002 เครื่องวิเคราะห์สี

เครื่องวิเคราะห์สี

45° / 0° Measuring geometry สำหรับ no lighting sample painting เช่น ผ้า, กระดาษ, หนัง และ painting

ช่วงการวัด

Measuring geometry : 45° /0° - circular illumination at 45°, measurement at 0°

Spectral range : 400 nm to 700 nm

Measurement RGB value : R ( Red ) value : 0 to 1023 G ( Green ) value : 0 to 1023 B ( Blue ) value : 0 to 1023

HSL value : Hue value : 0 to 1.000 Saturation value : 0 to 1.000 Luminance value : 0 to 1.000

Power Supply

DC 9V battery

ขนาดสินค้า

Dimension : Main instrument : 203 x 76 x 38 mm Sensor probe : 160x92x45 mm

Weight : 478 g

อุปกรณ์ที่มาในชุด

• Instruction manual x 1

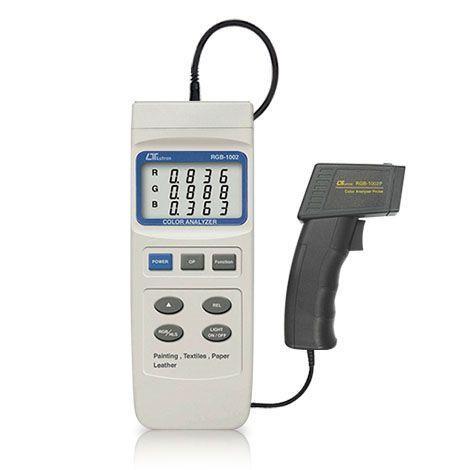

• Sensor probe ( RGB-1002P ) x 1

• White color calibration card x 1

• Carrying case, CA-06 x 1

อุปกรณ์เสริม

• AP-9VA AC Adapter 9V

• UPCB-02 RS232 Cable

• USB-1 USB Cable

• SW-U801-WIN Data Acquisition Software

ข้อมูลจำเพาะ

Measuring geometry : 45° /0° - circular illumination at 45°, measurement at 0° Spectral range : 400 nm to 700 nm

Light source : Two white LED lamp

Measuring principle : For no lighting sample color measurement such as textiles, paper, leathers, painting materials......,

a defined light source illuminates the sample and the reflected surface light is spectrometrically analyzed.

Color sensors : 3 color photo transistors : - Red photo transistor - Green photo transistor - Blue photo transistor

Measurement RGB value : R ( Red ) value : 0 to 1023 G ( Green ) value : 0 to 1023 B ( Blue ) value : 0 to 1023 HSL value : Hue value : 0 to 1.000 Saturation value : 0 to 1.000 Luminance value : 0 to 1.000

Repeatability : ■ R (Red) value,G (Green) value, B (Blue) value : < 3 ■ Hue value, Saturation value, Luminance value : < 0.01 Measurement sample material type : ■ Type 1 : No lighting sample material : Such as textiles, paper, leathers... ■ Type 2 : Lighting sample material : Such as CRT, LCD monitor, LED lamp, lighting lamp..... Interface : RS 232 PC serial interface
