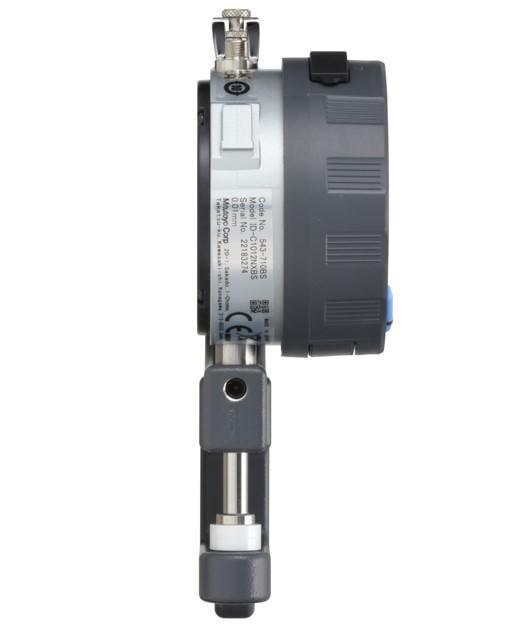

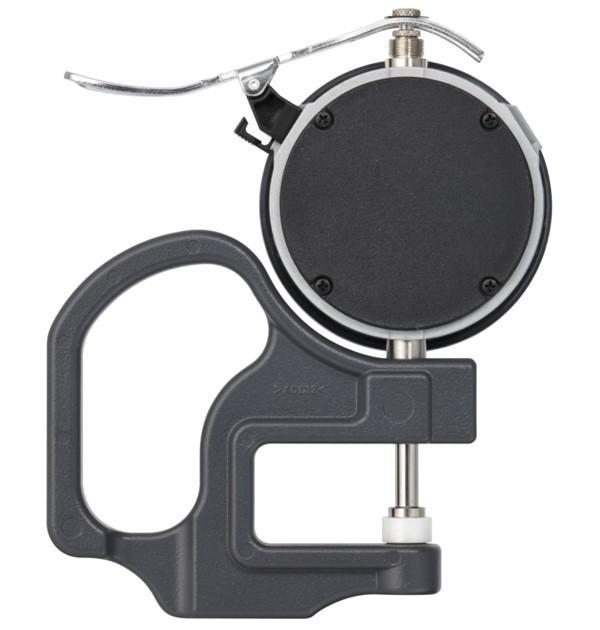

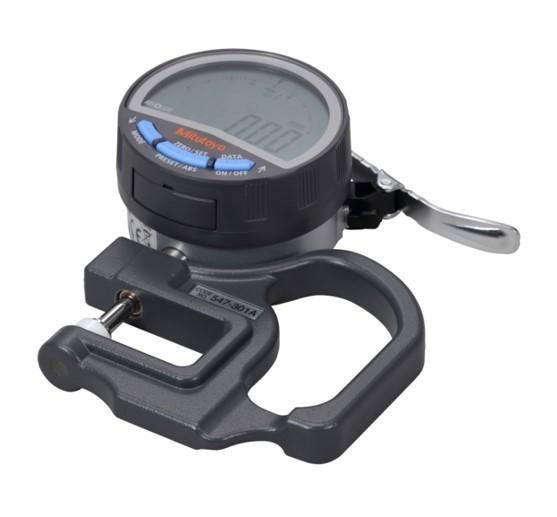

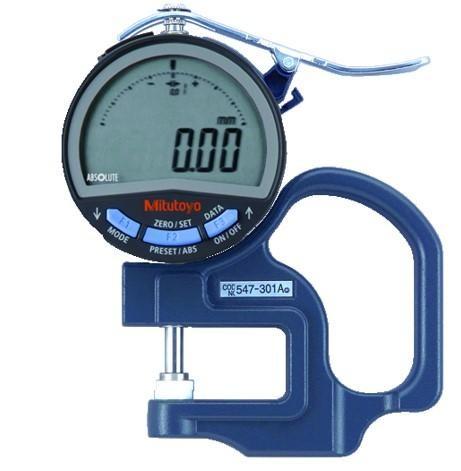

Mitutoyo M-547-301A Thickness Gages เกจวัดความหนาแบบดิจิตอล (0 - 10mm)

M-547-301A | ฟังก์ชั่นการวัด

Thickness Gages เกจวัดความหนาแบบดิจิตอล

M-547-301A | จุดเด่น

This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with flat contact points.
Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.

DATA/HOLD: Yes
Digimatic data output: Yes
ON/OFF: Yes
Function lock: Yes
GO/±NG judgement: Yes
ABS / INC (INC ZERO): Yes
Calculation function (with formula): Yes
Counting direction switchable: Yes
Digimatic S1 Bidirectional interface: Yes
Analog bar resolution selection: Yes
Auto Power OFF setting: Yes
Analog bar resolution switchable: Yes
Customizing keys: Yes
Inch/Metric switchable: Yes
Calibration warning function: Yes
Digital step switchable: No

M-547-301A | ช่วงการวัด

0 - 10 mm
Accuracy: ±20 µm

M-547-301A | Power Supply

1 battery CR2032 (3V)

M-547-301A | ขนาดสินค้า

120 x 85 mm

M-547-301A | อุปกรณ์ที่มาในชุด

M-547-301A

M-547-301A | อุปกรณ์เสริม

06AGL011

06AGL021

06AGQ001F

264-623

264-622

264-626

264-627

02AZF670

02AZF700

M-547-301A | ข้อมูลจำเพาะ

Digital/Analog: Digital
Inch-Metric: Metric
Functions: With indicator ID-C No.543.0-710.0BS

Digital step: 0,01 mm

Parallelism: 10 µm
Protection: IP42
Indicator No.: 543-710BS
Max. measuring depth: 30 mm
Measuring force: ≤ 1.5 N

Display: LCD, character height 11 mm
Alarm: Low voltage, setting errors, sensor error, display overflow a.s.o.

Battery life: Continuous use: approx. 2700h
Remarks: Electrostatic capacitance type absolute linear encoder
Type: Ceramic disc contact points

Dimension Mitutoyo M-547 Thickness Gages Series

Lens thickness measurement

Tube thickness measurement

 Groove depth measurement
