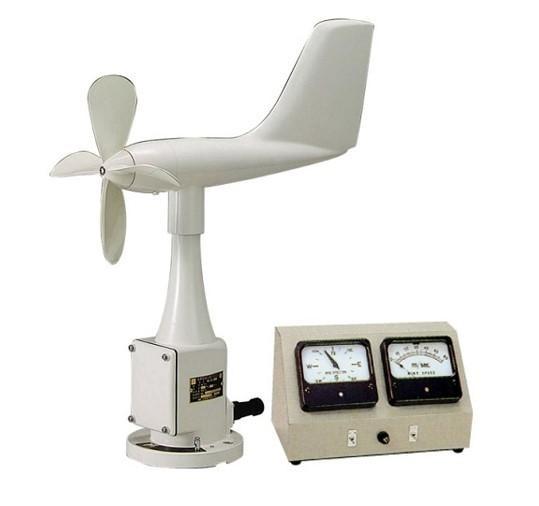

SK SATO SK-7790-00 Wind Speed and Direction Indicator with Sensor
SK SATO

SK SATO SK-7790-00 Wind Speed and Direction Indicator with Sensor

รหัสสินค้า

SK-7790-00

ภาพรวม

no.7790-00 Wind Speed and Direction Indicator Range 2 to 60m/s Wind direction is 360 degrees Cable 20m (in 220VAC use) ยี่ห้อ SK Sato ประเทศญี่ปุ่น

เพิ่มคำถาม

SK-7790-00 ฟังก์ชั่นการวัด

Wind Speed and Direction Indicator

SK-7790-00 จุดเด่น

This is an analog rigid wind monitoring system consists of a rugged vane sensor and an antique-style indicator that both wind speed and direction can be read simultaneously.

Suitable for general meteorological observations, in construction sites or high-rise buildings.

SK-7790-00 ช่วงการวัด

Wind Speed and Direction Sensor Measuring range

W.S. 2 to 70 m/s
W.D. 0 to 360°

Indicator

Display range

W.S.  2 to 70 m/s
W.D.  360° continuous

Accuracy

W.S.  ±0.5 m/s (< 10 m/s) / ±0.5%rdg (> 10 m/s)

W.D.  ±5°
Minimum scale

W.S.  1 m/s

W.D.  16 cardinal points indicated

SK-7790-00 Power Supply

Choose either 220 or 100 VAC ±10%, 30 VA

SK-7790-00 ขนาดสินค้า

Wind Speed and Direction Sensor
510 (L) x 600 (H) x 250 (D) mm / 3.0 kg
Indicator
300 (L) x 170 (H) x 150 (D) mm / 3.6 kg

SK-7790-00 อุปกรณ์ที่มาในชุด

20-m cable to connect sensor and indicator x1

3-m power cable x1

fuse x2

Instruction manual

SK-7790-00 ข้อมูลจำเพาะ

Cat. No. 7790-00
Product name Wind Speed and Direction Indicator with Sensor
Model name W611

Wind Speed and Direction Sensor

Measuring method Wind speed  Counterbalanced tail with synchro motor

Measuring method Wind direction 4-blade propeller with AC generator

Starting speed 2 m/s
Survival speed 108 m/s
Wind speed output 45±1 VAC for 60 m/s no-load
Operation ambient −20 to 50°C without freezing

Indicator

Operation ambient −10 to 50°C, 40 to 85%rh
