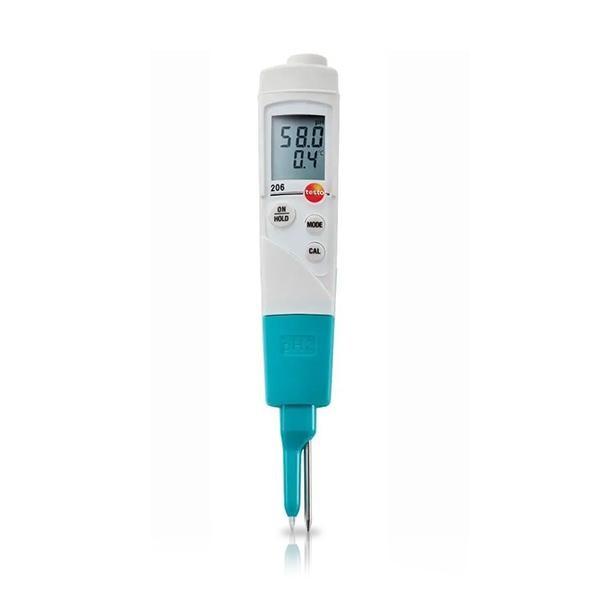

Starter set Testo 206-pH2 - pH/temperature measuring instrument for semi-solid media
Testo-0563-2066
No. 0563 2066 The testo 206-pH2 pH meter is equipped with a pH immersion tip and an integrated temperature sensor which allow you to carry out quick and reliable pH measurements and accurate core temperature measurements simultaneously.
Testo-0563-2066 | ฟังก์ชั่นการวัด
Starter set testo 206-pH2 pH/temperature measuring instrument, pH2 probe head for semi-solid substances
Testo-0563-2066 | จุดเด่น
Ideal for measuring the pH value of semi-solid media, viscous and protein-containing foodstuffs (eg. processed cheese, fruit) and water-mixed solid cooling lubricants
Temperature measurements with integrated temperature sensor possible
Maintenance-free gel electrolyte
The set contains essential accessories, which you will always have to hand: calibration dosing bottles, TopSafe protective case, aluminium case, etc.
The testo 206-pH2 allows you to perform 1, 2 or 3-point calibrations.
The testo 206-pH2 pH meter comes with a TopSafe protective case which gives it its IP68
Testo-0563-2066 | ช่วงการวัด
Temperature - NTC
Measuring range 0 to +60 °C (Short-term to +80 °C max. 5 min)
Accuracy ±0.4 °C
Resolution 0.1 °C
pH - Electrode
Measuring range 0 to 14 pH
Accuracy ±0.02 pH
Resolution 0.01 pH
Testo-0563-2066 | Power Supply
1 x CR2032
Testo-0563-2066 | ขนาดสินค้า
197 x 35 x 20 mm ((LxWxH))
110 x 33 x 20 (without probe and TopSafe)
15 g (with TopSafe)
65 g (without TopSafe)

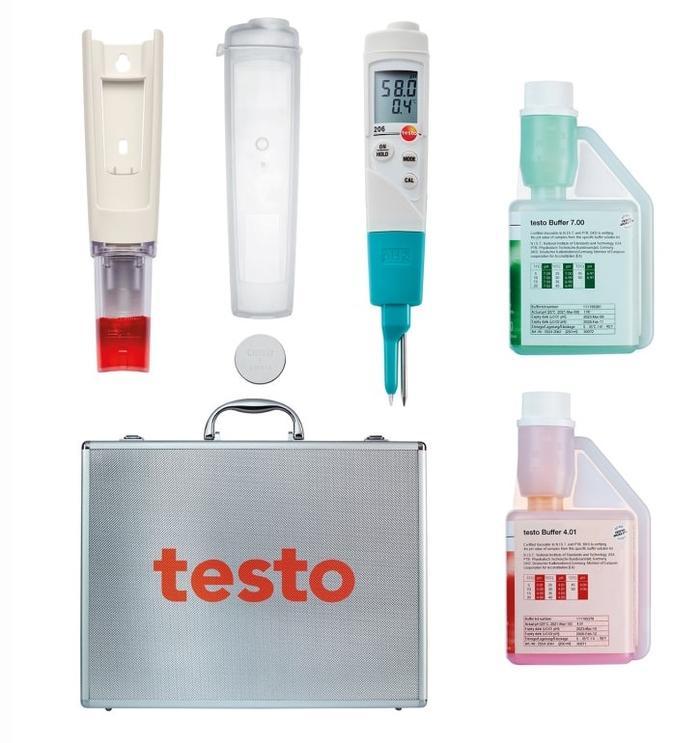

Testo-0563-2066 | อุปกรณ์ที่มาในชุด
with the testo 206-pH2 starter set,
storage cap with gel,
calibration dosing bottles 250 ml pH 4 and 7,
TopSafe,
belt/ wall holder and aluminium case
Testo-0563-2066 | อุปกรณ์เสริม
Spare pH probe for testo 206 incl. gel storage cap 0650 2061
Storage cap for testo 206 with KCI gel filling 0554 2067
Lithium battery button cell 0515 5028
pH buffer solution 4.01 in dosing bottle (250 ml) with DAkkS calibration certificate 0554 2061
pH buffer solution 7.00 in dosing bottle (250 ml) with DAkkS calibration certificate 0554 2063
Testo-0563-2066 | ข้อมูลจำเพาะ
Weight
115 g (with TopSafe)
65 g (without TopSafe)
Dimensions
197 x 35 x 20 mm ((LxWxH))
110 x 33 x 20 (without probe and TopSafe)
Operating temperature 0 to +60 °C
Product-/housing material ABS
Protection class IP68
Product colour white
Authorizations CE 2014/30/EU
Length probe shaft 35 mm
Diameter probe shaft 11 mm
Standards DIN EN 12830
Battery type 1 x CR2032
Battery life 80 h (Auto Off 10 min)
Display type LCD (Liquid Crystal Display)
Display size 2 lines
Number of channels 2-channel
Measuring rate 2 measurements per second
Temperature compensation automatic
Storage temperature -20 to +70 °C
Temperature - NTC
Measuring range 0 to +60 °C (Short-term to +80 °C max. 5 min)
Accuracy ±0.4 °C
Resolution 0.1 °C
pH - Electrode
Measuring range 0 to 14 pH
Accuracy ±0.02 pH
Resolution 0.01 pH
