AZ-82100 Manometer เครื่องวัดความดัน (100 psi)

AZ-82100 ฟังก์ชั่นการวัด

การวัดความดัน-แรงดัน

AZ-82100 จุดเด่น

Features
Hold function freezes current readings
Over-range indication with error messages
Backlight function for dark area
Auto power off disablement
Low battery indicator
Real time shows in recording mode

AZ-82100 ช่วงการวัด

Measurement

psi

Range ±100.0

Resolution 0.1

Accuracy ±0.3% of full scale at ±25ºC

kPa

Range ±689.5
Resolution 0.4
Accuracy ±0.3% of full scale at ±25ºC

mmHg

Range ±5171
Resolution 3
Accuracy ±0.3% of full scale at ±25ºC

Kg/cm²

Range ±7.031
Resolution 0.004
Accuracy ±0.3% of full scale at ±25ºC

mbar (hpa)

Range ±6895
Resolution 4
Accuracy ±0.3% of full scale at ±25ºC

bar

Range ±6.895
Resolution 0.004
Accuracy ±0.3% of full scale at ±25ºC

inH2O

Range ±2768
Resolution   2
Accuracy ±0.3% of full scale at ±25ºC

cmH2O

Range ±7004
Resolution  4
Accuracy ±0.3% of full scale at ±25ºC

inHg

Range ±203.6
Resolution 0.2
Accuracy ±0.3% of full scale at ±25ºC

ftH2O

Range ±230.7
Resolution 0.2
Accuracy ±0.3% of full scale at ±25ºC

oz/inch²

Range ±1600
Resolution1
Accuracy ±0.3% of full scale at ±25ºC

AZ-82100 Power Supply

Battery 9V

AZ-82100 ขนาดสินค้า

182 x 72 x 30 mm/ 150 g

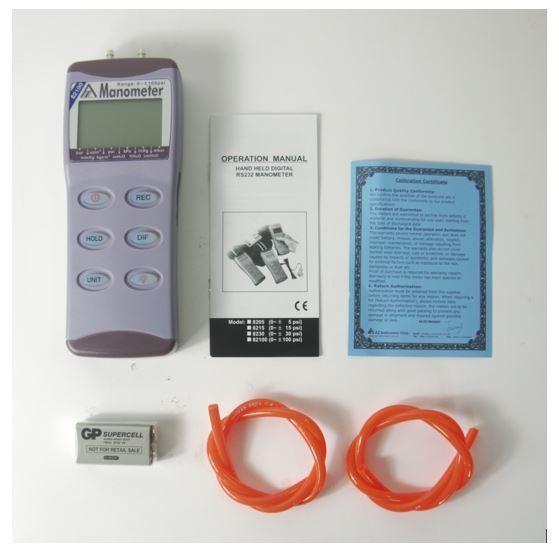

AZ-82100 อุปกรณ์ที่มาในชุด

ตัวเครื่อง
connection hose 4mm dia (ยาว 500mm)
กระเป๋า

AZ-82100 อุปกรณ์เสริม

USB Cale+Software Set (USB-AZ)

AZ-82100 ข้อมูลจำเพาะ

Repeatability ±0.2% to 0.5% of full scale
Linearity/ Hysteresis ±0.29% to 1% of full scale
Combined accuracy ±1.0% of full scale
Response time 0.5 second
Compensated temp. range 0 to 50ºC
LCD size 29 x 51 mm
