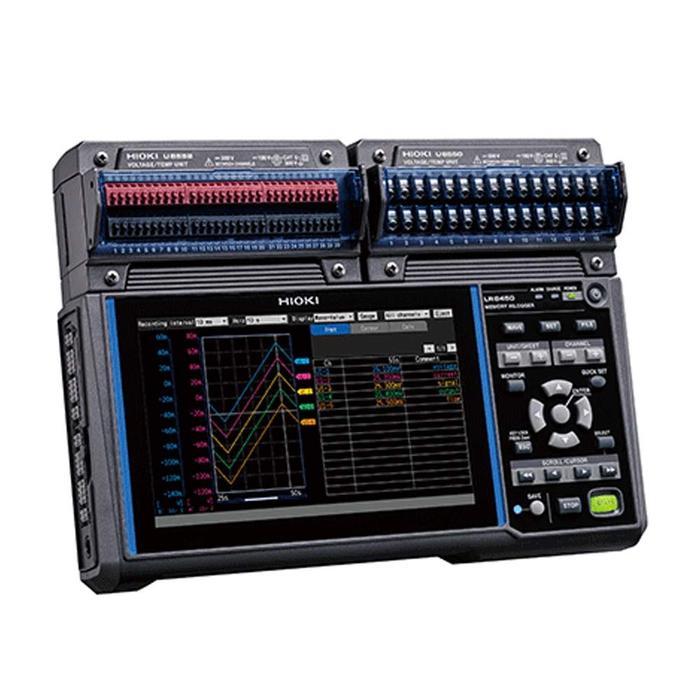

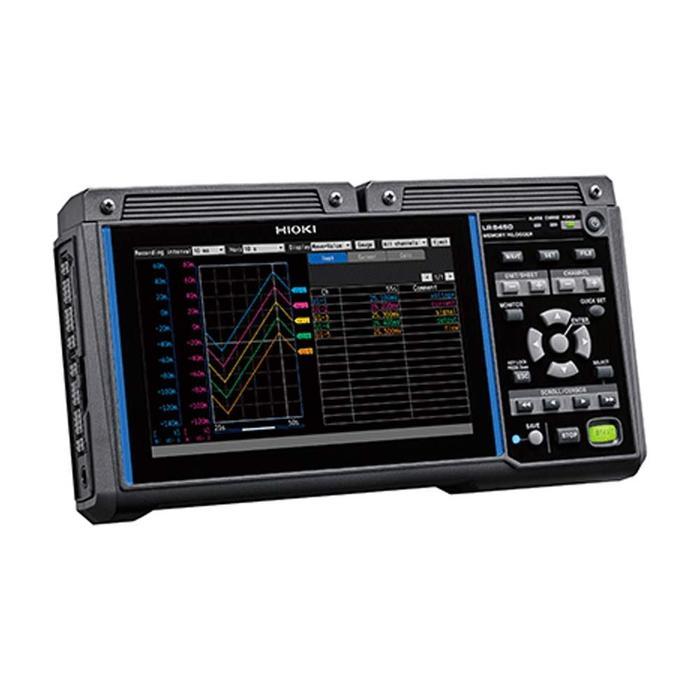

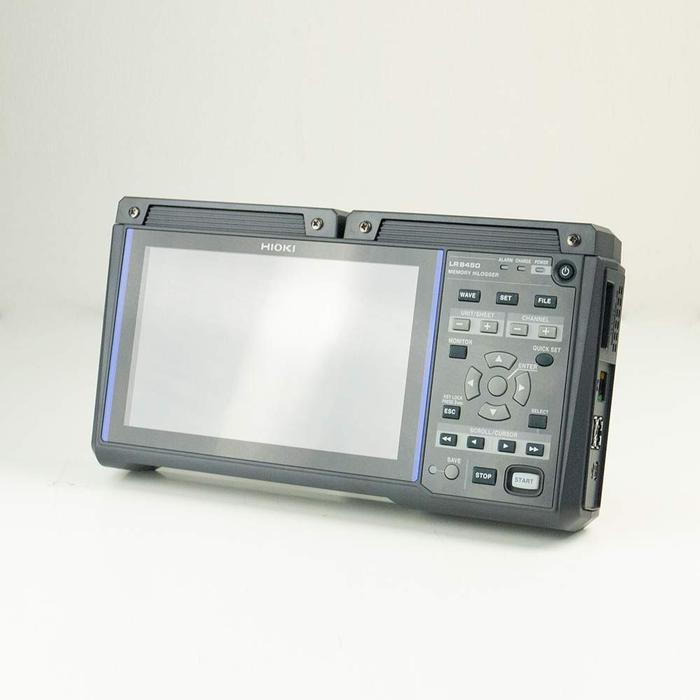

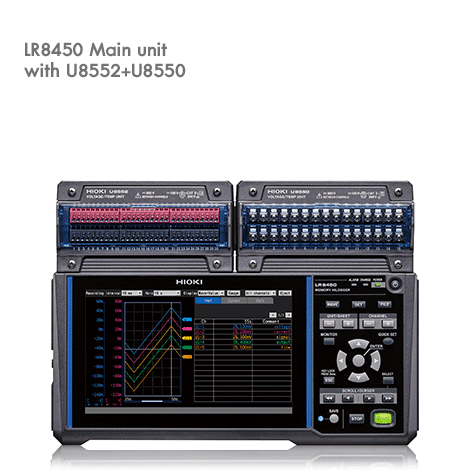

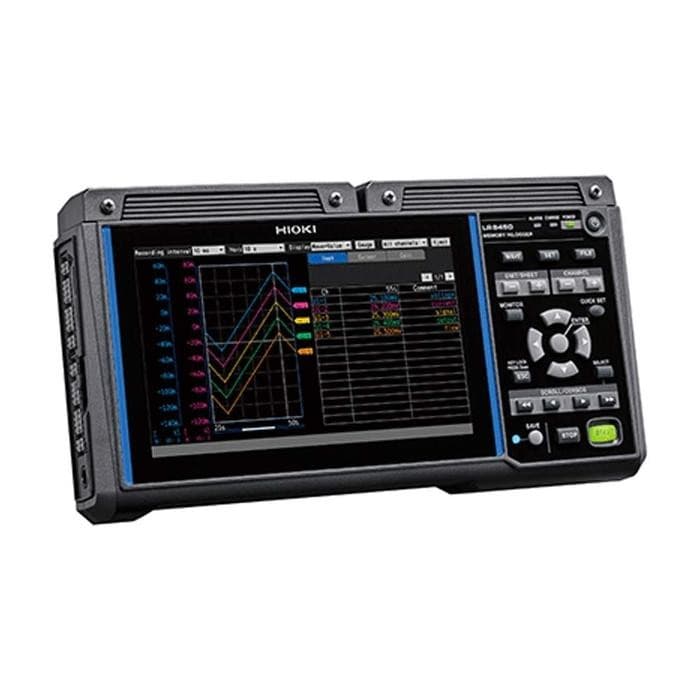

HIOKI LR8450 เครื่องบันทึกข้อมูลอเนกประสงค์ | MEMORY HiLOGGER

LR8450 ฟังก์ชั่นการวัด

High Speed Voltage, Strain measurement., Temperature, Humidity, Resistance

LR8450 จุดเด่น

• บันทึกข้อมูลข้อมูลลงบน SD Memory สะดวกในการถ่ายโอนข้อมูลไปยังเครื่องคอมพิวเตอร์ด้วย LAN interface, USB interface
• สามารถตั้ง Sampling interval ความถี่ในการบันทึกข้อมูล 1 ms ถึง 1 hour (22 selections)
• ความความแม่นยำของการวัด Thermocouples (Type K, J, E, T, N, R, S, B, C) ที่เพิ่มขึ้น
• ช่องใส่ข้อมูลอนาล็อกแยก 120 ช่อง
• กะทัดรัดเพื่อพกพาได้สะดวก
• จอกว้างจอ LCD สว่าง อ่านค่าง่าย ชัดเจน

LR8450 ช่วงการวัด

■ U8550
■ U8551
■ U8552
■ U8553
■ U8554
*2: Plug-in input modules can be connected to LR8450, LR8450-01

LR8450 Power Supply

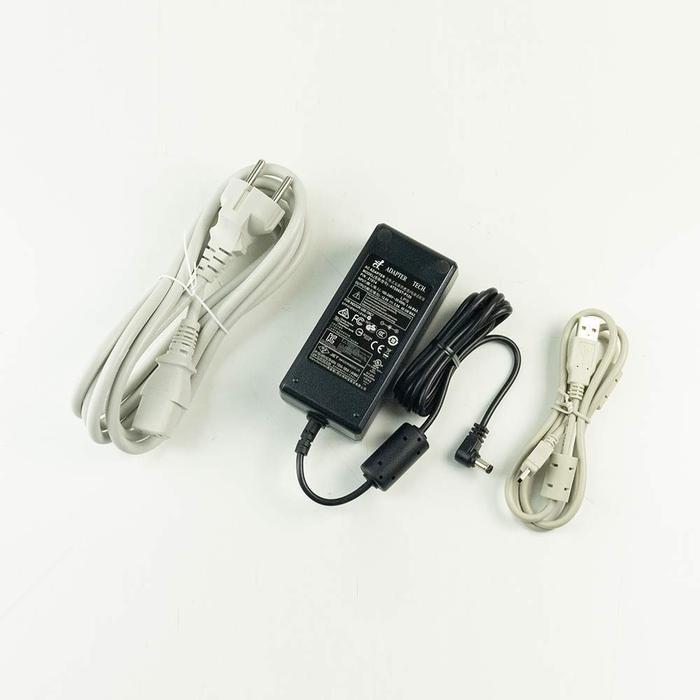

[AC adapter] Using the Z1014 (100 to 240 V AC, 50/60 Hz), 95 VA Max. (including AC adapter), 28 VA Max. (exclusive of AC adapter)

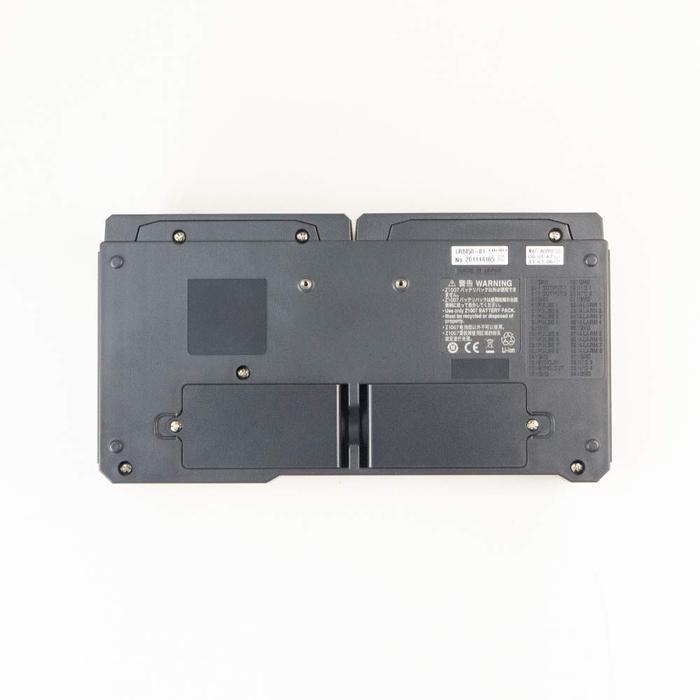

[Battery Pack] Using the Z1007 (accommodates 2 batteries), continuous use 4 hr (reference value for 2 pieces), 20 VA Max.
[External power] 10 to 30 V DC, 28 VA Max.

LR8450 ขนาดสินค้า

Without any modules: 272 mm (10.71 in) W × 145 mm (5.71 in) H × 43 mm (1.69 in) D (excluding protrusions), 1108 g (39.1 oz) (excluding battery pack)
With 2 modules: 272 mm (10.71 in) W × 198 mm (7.80 in) H × 63 mm (2.48 in) D (excluding protrusions)
With 4 modules: 272 mm (10.71 in) W × 252 mm (9.92 in) H × 63 mm (2.48 in) D (excluding protrusions)

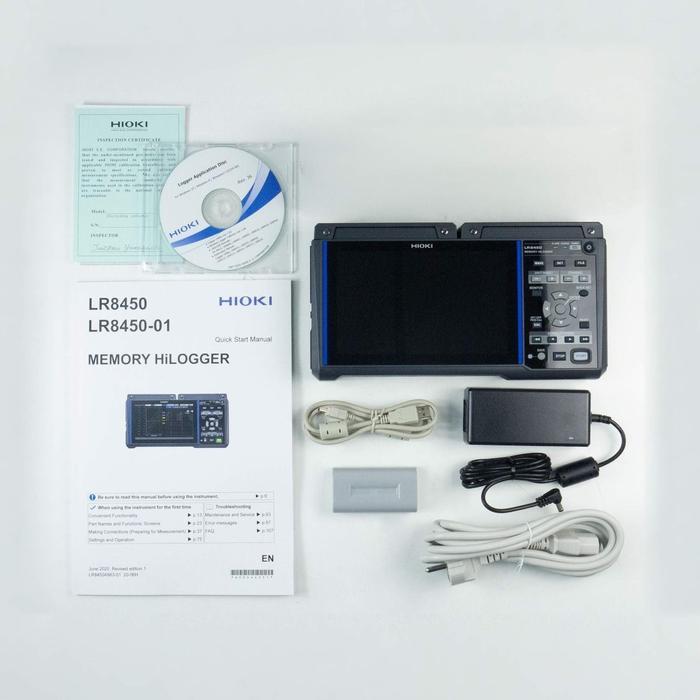

LR8450 อุปกรณ์ที่มาในชุด

Quick Start Manual ×1, LOGGER Application Disc (Quick Start Manual, Instruction Manual, Logger Utility,

Logger Utility Instruction Manual, CAN editor, CAN editor instruction manual, Communication Instruction Manual) ×1,

 USB Cable ×1, AC Adapter Z1014 ×1

LR8450 อุปกรณ์เสริม

• VOLTAGE/TEMP UNIT U8550
• UNIVERSAL UNIT U8551
• VOLTAGE/TEMP UNIT U8552
• HIGH SPEED VOLTAGE UNIT U8553

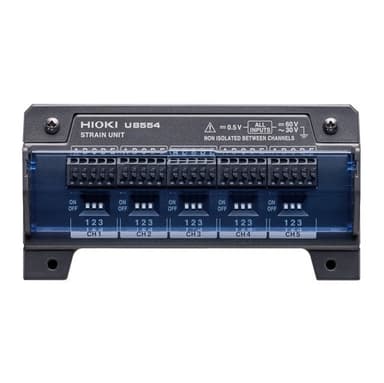

• STRAIN UNIT U8554
• CAN/CAN FD input or output
• CURRENT MODULE U8556
• AC/DC CURRENT SENSOR CT7812
• AC/DC CURRENT SENSOR CT7822
• HUMIDITY SENSOR Z2000
• SD MEMORY CARD Z4003
• USB DRIVE Z4006
• POWER CABLE L1012

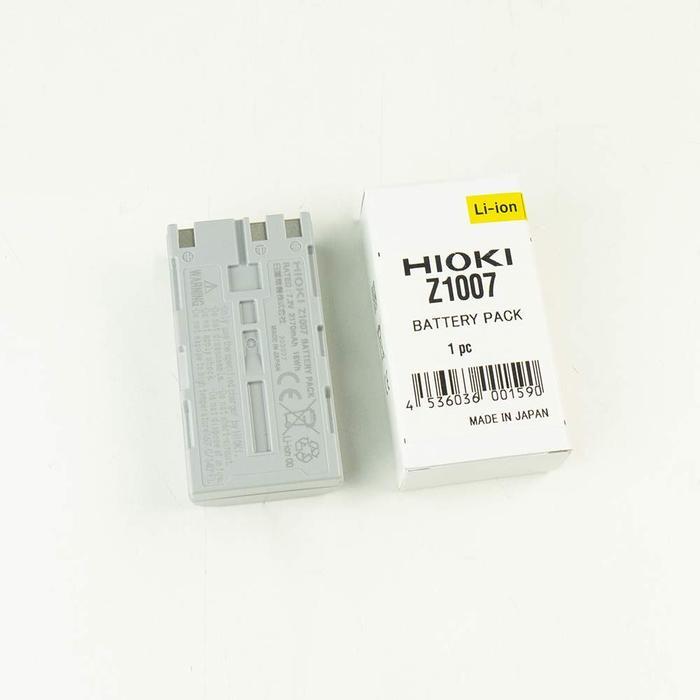

• BATTERY PACK Z1007
• AC ADAPTER Z1014
• CARRYING CASE C1012
• FIXED STAND Z5040
• LOGGER UTILITY SF1000
• CAN EDITOR SF1002
• GENNECT ONE SF4000
• LAN CABLE 9642
• MEMORY HiLOGGER LR8450-01 (Wireless LAN model)

LR8450 ข้อมูลจำเพาะ

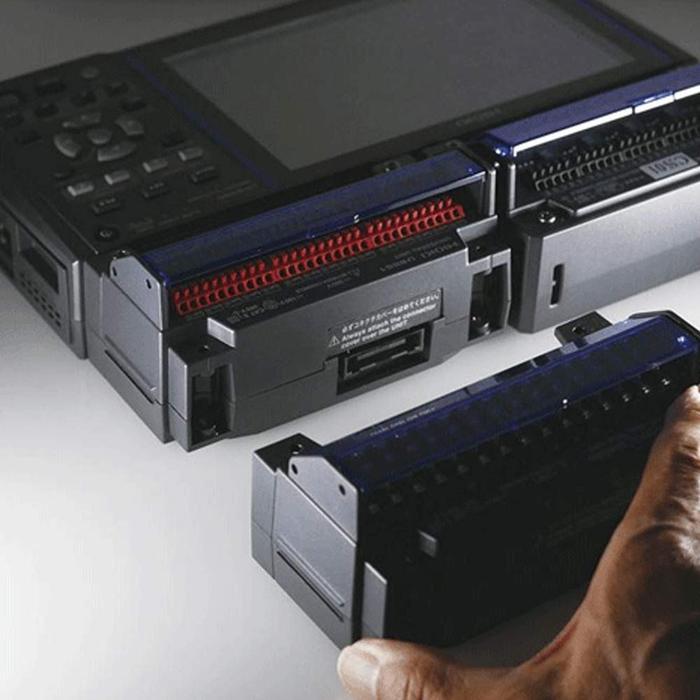

Max. number of connectable modules 4 plug-in modules

No. of measurement channels

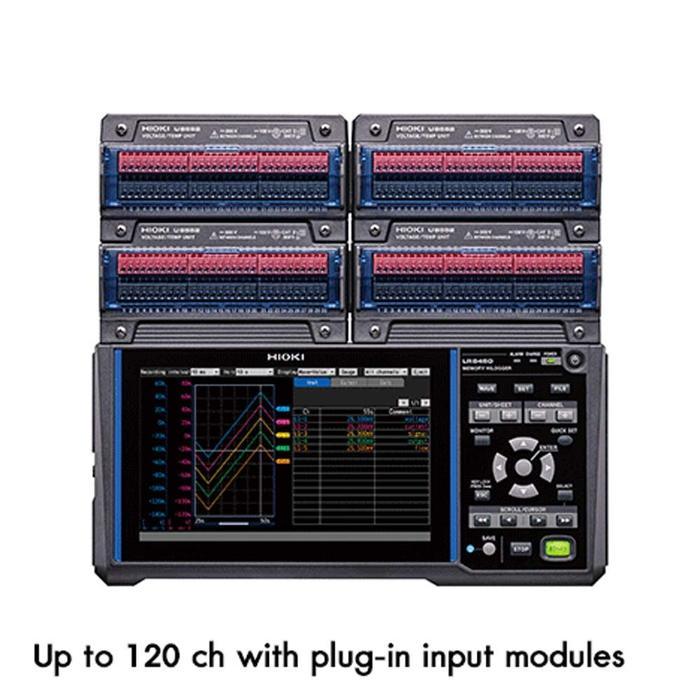

Up to 120 ch with plug-in modules.
U8555 can input up to 500 channels per unit.

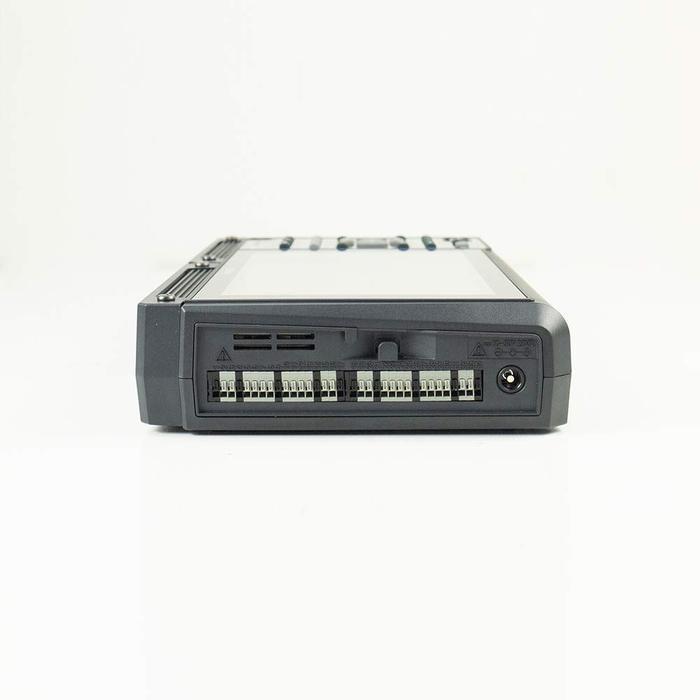

Pulse/logic input

[Number of ch] 8 ch (common GND, non-isolated, exclusive setting for pulse/logic input for individual channels)
[Adaptive input format] Non-voltage contact, open collector, or voltage input
[Count] 0 to 1000 M pulse, 1 pulse resolution
[Rotational speed] 0 to 5000/n (r/s), 1/n (r/s) resolution, 0 to 300,000/n (r/min.), 1/n (r/min.) resolution, n: Number of pulses per rotation (1 to 1000)
[Logic input] Records 1 or 0 for each recording interval

Recording intervals

1 ms*, 2 ms*, 5 ms* (*: Can be set only when using 1 ms/S modules), 10 ms to 1 hour, 22 selections (Data refresh interval can be set for each unit

Data storage

SD Memory Card/USB Drive (user-selectable)
(Only storage media sold by HIOKI are guaranteed for operation)

LAN interface

100BASE-TX / 1000BASE-T, DHCP, DNS support,
Functions: Data acquisition, condition settings used with the Logger Utility software, configuring settings and controlling recording using communications commands, FTP server / FTP client, HTTP server, Email transmission, NTP client

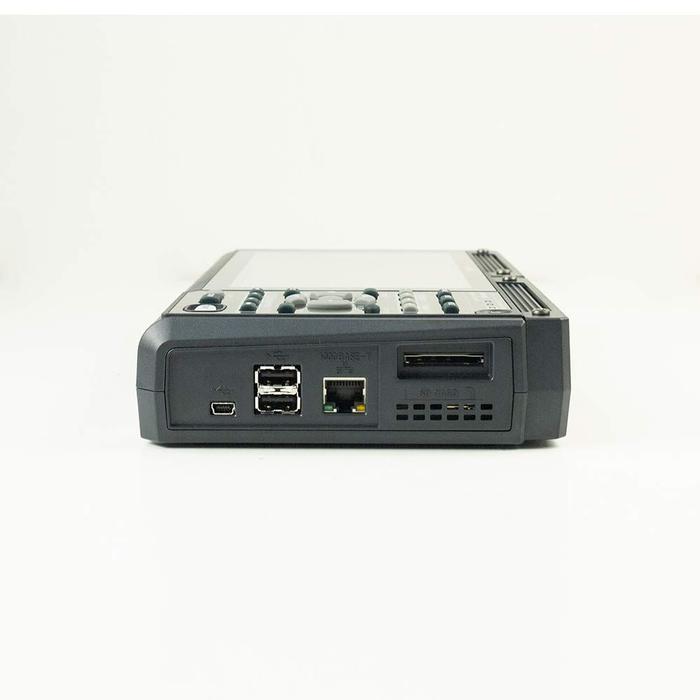

USB interface

Series A receptacle × 2: USB 2.0 compliant (USB drive, keyboard, or hub)
Series mini-B receptacle × 1: Data acquisition, condition settings used with the Logger Utility, configuring settings and controlling recording using communications commands, transferring data from a connected SD Memory Card to a computer
SD card slot

SD standard-compliant slot × 1 (with SD memory card/SDHC memory card support), Guaranteed-operation options: ‌Z4001, Z4003
Display 7 inch TFT color liquid crystal display (WVGA 800 × 480 pixel)
Functions Save waveform data in real time to the SD memory card or USB drive, numerical value calculations, waveform calculations, 8ch alarm output, voltage output ×2 (5 V /12 V /24 V selectable)
