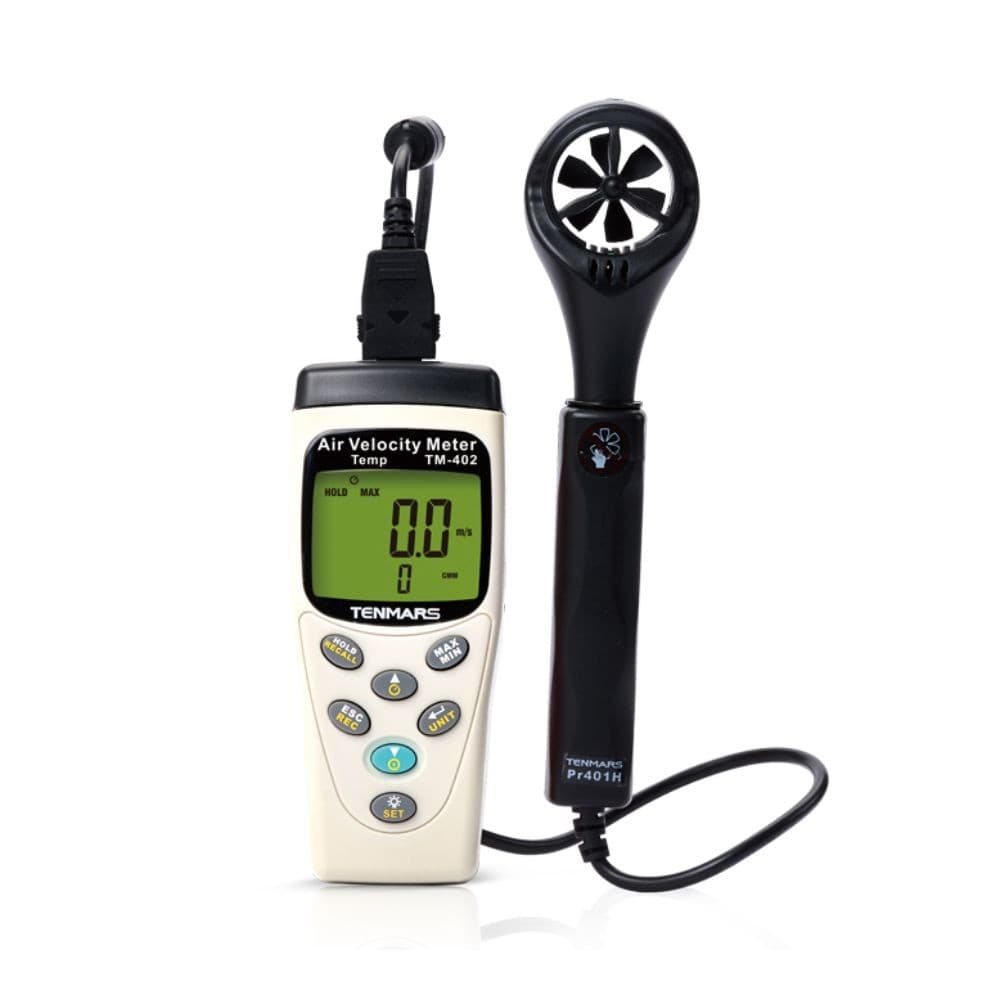

Tenmars TM-402 เครื่องวัดความเร็วลมและอุณหภูมิ

Velocity

Unit

Range

Resolution

Accuracy

m/s

0.4~20

0.1

≤10m/s ±(2.0+0.5)

>10m/s ±(2.5﹪+1)

Km/hr(Kph)

1.5~72

0.1

≤36Km/hr ±(2.0﹪+1.8)

>36Km/hr ±(2.5﹪+3.6)

mph

0.9~44

0.1

≤22mph ±(2.0﹪+1.1)

>22mph ±(2.5﹪+2.2)

Knots(kts)

0.8~38

0.1

≤19Knots ±(2.0﹪+1)

>19Knots ±(2.5﹪+1.9)

ft/min(fpm)

79~4000

1

≤2000ft/min ±(2.0﹪+100)

>2000ft/min ±(2.5﹪+200)

Beaufort

1~8

1

--

Air Flow Calculation

Unit

Range

Resolution

Accuracy

CMM

0~9999

1

--

CFM

0~9999

1

--

Temperature

Unit

Range

Resolution

Accuracy

°C

-20~60

0.1

±1℃

°F

-4~140

0.1

±1.8℉

Humidity

Unit

Range

Resolution

Accuracy

%RH

20~80

0.1

±3.5%RH

%RH

<20,>80

0.1

±5%RH

Absolute Pressure

Unit

Range

Resolution

Accuracy

hPa

350~1100

0.1

±2hPa

mmHg

263~825

0.1

±1.5mmHg

inHg

10.3~32

0.1

±0.1

Display

42mm (W) x 33mm (L) Monochrome LCD with backlight

Battery

9 Volt battery

Battery Life

Approximately 100 hours (continuous use)

Shutoff Rate Power

3 μA

Operating Maximum Power

25 mA

Instrument Dimensions

130 (L) x 56 (W) x 38 (H) mm

Instrument Weight

About 160 g

Probe Dimensions

195 (L) x 47 (W) x 30 (H) mm

Probe Weight

About 100 g

Cable Length

95 cm
